CRUCIBLES, POTS, STIRRERS, GLASS FRIT FOR OPTICAL GLASS MELTING

I'm Online Chat Now

CRUCIBLES, POTS, STIRRERS, GLASS FRIT FOR OPTICAL GLASS MELTING

CRUCIBLES, POTS, STIRRERS, GLASS FRIT FOR OPTICAL GLASS MELTING
CRUCIBLES, POTS, STIRRERS, GLASS FRIT FOR OPTICAL GLASS MELTING CRUCIBLES, POTS, STIRRERS, GLASS FRIT FOR OPTICAL GLASS MELTING CRUCIBLES, POTS, STIRRERS, GLASS FRIT FOR OPTICAL GLASS MELTING

Large Image :  CRUCIBLES, POTS, STIRRERS, GLASS FRIT FOR OPTICAL GLASS MELTING

Product Details:
Place of Origin: CHINA
Brand Name: ZG
Certification: CE
Model Number: MS
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD10/piece
Packaging Details: Strong wooden box for Global shipping
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 pieces

CRUCIBLES, POTS, STIRRERS, GLASS FRIT FOR OPTICAL GLASS MELTING

Description
Features: High Purity Material Suitable For Optical Melting; High Glass Resistance And Corrosion Resistance Material: Alumina, Zirconia, SiO2
Size: Customized Color: Black, White
Highlight:

SiO2 Alumina Ceramic Crucible

,

Glass Melting Alumina Ceramic Crucible

,

SiO2 Alumina Crucible For Glass Melting

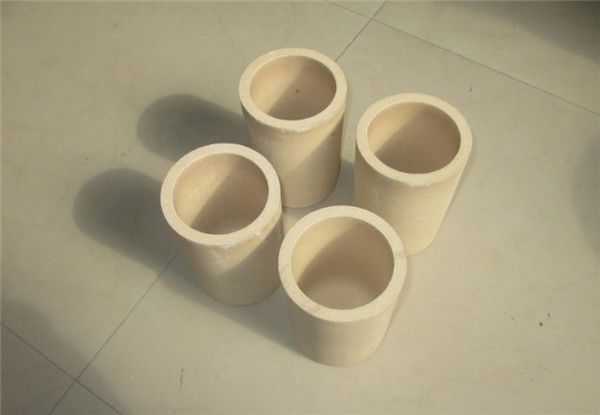

Crucibles, pots, stirrers, glass frit for optical glass melting



Critical products (pots, crucibles, mixers) from ceramic materials are used in the manufacturing of optical glass.





Related Data



Main component 99%Al2O3 S-SiC ZrO2 Si3N4
Physical
Property
Density g/cm3 3.9 3.1 6 3.2
Water Absorption % 0 0.1 0 0.1
Sinter Temperature °C 1700 2200 1500 1800
Mechanical
Property
Rockwell Hardness HV 1700 2200 1300 1400
Bend Strength kgf/mm2 3500 4000 9000 7000
Compression Intensity Kgf/mm2 30000 20000 20000 23000
Thermal
Property
Maximum working
temperature
°C 1500 1600 1300 1400
thermal expansion
coefficient
0-1000°C
/°C 8.0*10-6 4.1*10-6(0-500°C) 9.5*10-6 2.0*10-6(0-500°C)
5.2*10-6(500-1000°C) 4.0*10-6(500-1000°C)
Thermal Shock resistance T(°C) 200 250 300 400-500
Thermal Conductivity W/m.k(25°C 31 100 3 25
300°C) 16 100 3 25
Electrical
Property
Resisting rate of Volume ◎.cm
20°C >1012 106-108 >1010 >1011
100°C 1012-1013 >1011
300°C >1012 >1011
Insulation Breakdown
Intensity
KV/mm 18 semiconductor 9 17.7
Dielectric Constant (1 MHz) (E) 10 29 7
Dielectric Dissipation (tg o) 0.4*10-3





Special requirements apply to ceramic materials for optical glass making, such as:

  • high purity material suitable for optical melting;
  • high glass resistance and corrosion resistance;
  • lack of interaction of ceramics with glass melt;
  • low wettability by glass melts;
  • resistance to thermal shock (heat resistance);
  • refractoriness;
  • shape stability and strength at maximum operating temperature;
  • low thermal expansion coefficient.



Ceramic materials are used in optical glass making for the production of the following products:

  • crucibles, pots for pot-type glass melting furnaces;
  • screw and paddle mixers;
  • elements of lining pot and bath-type furnaces.



The main material performance:

  • quartz ceramics (SiO2);
  • aluminum oxide (Al2O3);
  • zirconium dioxide (ZrO2);
  • various ceramic compositions.







CRUCIBLES, POTS, STIRRERS, GLASS FRIT FOR OPTICAL GLASS MELTING 0CRUCIBLES, POTS, STIRRERS, GLASS FRIT FOR OPTICAL GLASS MELTING 1
