Product Details:
|
| Features: | Excellent Wear Resistance; Chemical Inertness; No Grinding In The Product To Be Crushed; Long Service Life | Material: | Aluminum Nitride (AlN), Silicon Carbide, Zirconia |
|---|---|---|---|
| Size: | Customized | Color: | Black |
| High Light: | Aluminum Nitride Industrial Ceramic Parts,Plunger Pairs AlN Aluminum Nitride,Industrial Ceramic AlN Aluminum Nitride |
||

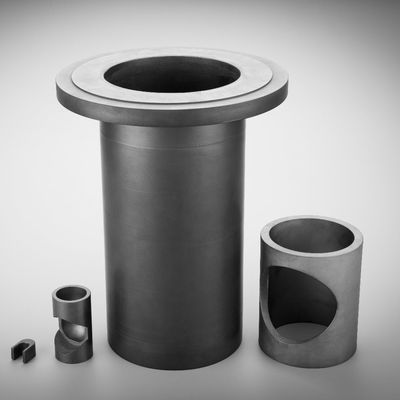

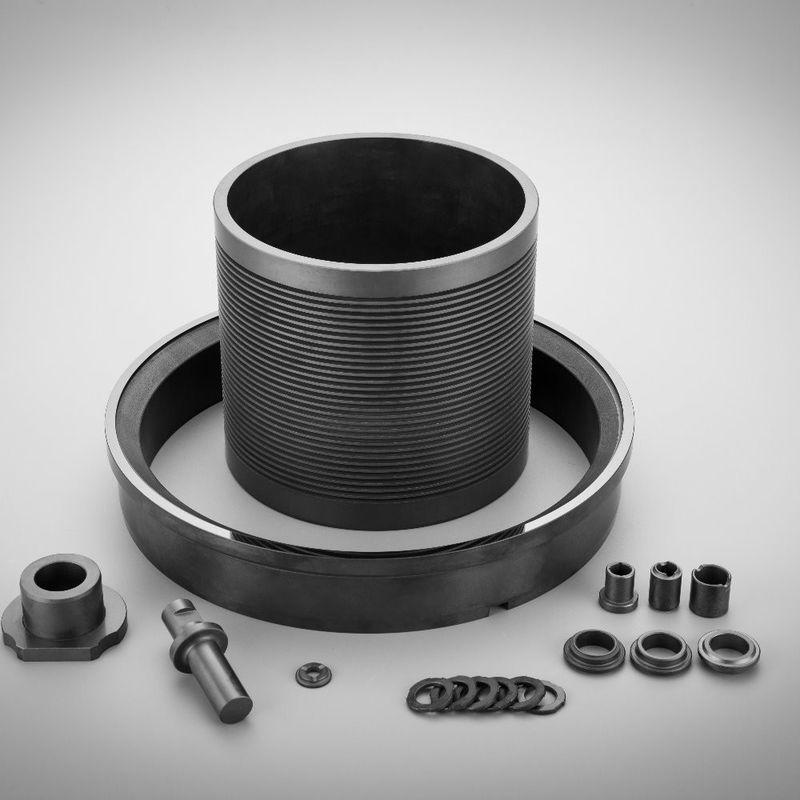

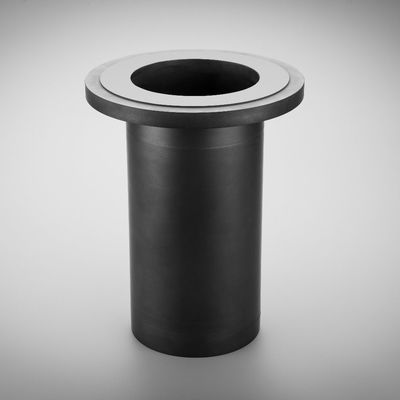

Industrial Ceramics in plunger (piston) pairs
Industrial Ceramics in plunger (piston) pairs with high corrosion resistance
Unlike friction pairs of sliding bearings, where in most cases the rotation of one body relative to the other occurs, in aggregates using plungers or pistons reciprocating motion is realized. The friction pairs, depending on the design of the unit, can vary both for materials and for the arrangement of the solid and elastic element (sealing). In the constructions, there are solid liners on which the elastic element slides. This element located on the piston (for example, drilling, mud, slurry pumps). And there are solid plungers that slide over the pump packing in the friction couple liner (for example – metering pumps, diaphragm pumps, etc.). Depending on the specific implementation of the friction pair, the use of ceramics as a solid element material significantly increases the characteristics and durability of the unit, which leads to a significant economic effect throughout the life cycle of the equipment. For mud pumps, the overhaul period grows to 4000 hours or more, which is 5-10 times greater when using steel plugs of plungers.
Related Data
| Main component | 99%Al2O3 | S-SiC | ZrO2 | Si3N4 | ||
| Physical Property |
Density | g/cm3 | 3.9 | 3.1 | 6 | 3.2 |
| Water Absorption | % | 0 | 0.1 | 0 | 0.1 | |
| Sinter Temperature | °C | 1700 | 2200 | 1500 | 1800 | |
| Mechanical Property |
Rockwell Hardness | HV | 1700 | 2200 | 1300 | 1400 |
| Bend Strength | kgf/mm2 | 3500 | 4000 | 9000 | 7000 | |
| Compression Intensity | Kgf/mm2 | 30000 | 20000 | 20000 | 23000 | |
| Thermal Property |
Maximum working temperature |
°C | 1500 | 1600 | 1300 | 1400 |
| thermal expansion coefficient 0-1000°C |
/°C | 8.0*10-6 | 4.1*10-6(0-500°C) | 9.5*10-6 | 2.0*10-6(0-500°C) | |
| 5.2*10-6(500-1000°C) | 4.0*10-6(500-1000°C) | |||||
| Thermal Shock resistance | T(°C) | 200 | 250 | 300 | 400-500 | |
| Thermal Conductivity | W/m.k(25°C | 31 | 100 | 3 | 25 | |
| 300°C) | 16 | 100 | 3 | 25 | ||
| Electrical Property |
Resisting rate of Volume | ◎.cm | ||||
| 20°C | >1012 | 106-108 | >1010 | >1011 | ||
| 100°C | 1012-1013 | – | – | >1011 | ||
| 300°C | >1012 | – | – | >1011 | ||
| Insulation Breakdown Intensity |
KV/mm | 18 | semiconductor | 9 | 17.7 | |
| Dielectric Constant (1 MHz) | (E) | 10 | – | 29 | 7 | |
| Dielectric Dissipation | (tg o) | 0.4*10-3 | – | – | – | |
There are the following factors that ensure this effect:
Most often, aluminum oxide, zirconia and silicon nitride are used as plunger pair materials
