Product Details:
|
| Features: | Excellent Wear Resistance; Chemical Inertness; No Grinding In The Product To Be Crushed; Long Service Life | Material: | Aluminum Nitride (AlN), Silicon Carbide |
|---|---|---|---|
| Size: | Customized | Color: | Black |
| Highlight: | Chemical Inertness Industrial Ceramic Parts,Chemical Inertness Ceramic Grinding Set,Laboratory Mills Ceramic Grinding Set |
||
Industrial ceramic Grinding Set For Laboratory Mills with excellent wear resistance

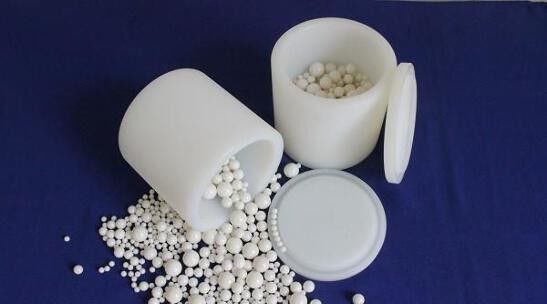

Ceramic grinding sets (ceramic cups, ceramic balls, ceramic discs) are used in laboratory ball mills and attritors for grinding, mixing and alloying powders.
Related Data
| Main component | 99%Al2O3 | S-SiC | ZrO2 | Si3N4 | ||
| Physical Property |
Density | g/cm3 | 3.9 | 3.1 | 6 | 3.2 |
| Water Absorption | % | 0 | 0.1 | 0 | 0.1 | |
| Sinter Temperature | °C | 1700 | 2200 | 1500 | 1800 | |
| Mechanical Property |
Rockwell Hardness | HV | 1700 | 2200 | 1300 | 1400 |
| Bend Strength | kgf/mm2 | 3500 | 4000 | 9000 | 7000 | |
| Compression Intensity | Kgf/mm2 | 30000 | 20000 | 20000 | 23000 | |
| Thermal Property |
Maximum working temperature |
°C | 1500 | 1600 | 1300 | 1400 |
| thermal expansion coefficient 0-1000°C |
/°C | 8.0*10-6 | 4.1*10-6(0-500°C) | 9.5*10-6 | 2.0*10-6(0-500°C) | |
| 5.2*10-6(500-1000°C) | 4.0*10-6(500-1000°C) | |||||
| Thermal Shock resistance | T(°C) | 200 | 250 | 300 | 400-500 | |
| Thermal Conductivity | W/m.k(25°C | 31 | 100 | 3 | 25 | |
| 300°C) | 16 | 100 | 3 | 25 | ||
| Electrical Property |
Resisting rate of Volume | ◎.cm | ||||
| 20°C | >1012 | 106-108 | >1010 | >1011 | ||
| 100°C | 1012-1013 | – | – | >1011 | ||
| 300°C | >1012 | – | – | >1011 | ||
| Insulation Breakdown Intensity |
KV/mm | 18 | semiconductor | 9 | 17.7 | |
| Dielectric Constant (1 MHz) | (E) | 10 | – | 29 | 7 | |
| Dielectric Dissipation | (tg o) | 0.4*10-3 | – | – | – | |
Advantage of ceramic materials:
Materials:
