1 Inch 2 Inch Thickness Ceramic Fiber Board 2800F 1200mm Length

I'm Online Chat Now

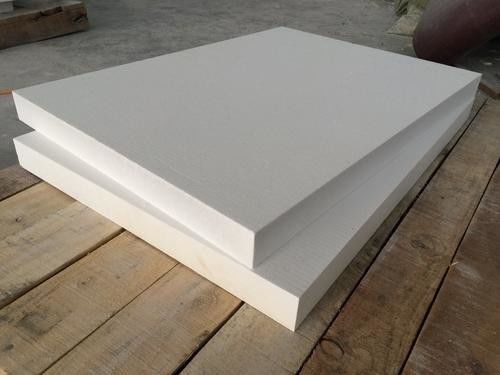

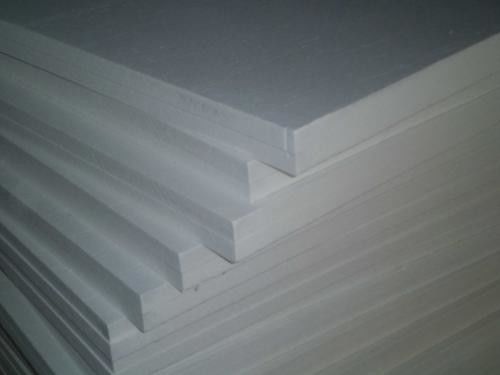

1 Inch 2 Inch Thickness Ceramic Fiber Board 2800F 1200mm Length

1 Inch 2 Inch Thickness Ceramic Fiber Board 2800F 1200mm Length
1 Inch 2 Inch Thickness Ceramic Fiber Board 2800F 1200mm Length 1 Inch 2 Inch Thickness Ceramic Fiber Board 2800F 1200mm Length 1 Inch 2 Inch Thickness Ceramic Fiber Board 2800F 1200mm Length

Large Image :  1 Inch 2 Inch Thickness Ceramic Fiber Board 2800F 1200mm Length

Product Details:
Place of Origin: CHINA
Brand Name: ZG
Certification: CE
Model Number: MS
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiation
Packaging Details: Strong wooden box for global shipping
Delivery Time: 7-10 work days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 10000 pieces per month

1 Inch 2 Inch Thickness Ceramic Fiber Board 2800F 1200mm Length

Description
Dimension(l*w*h): Customized Diameter: From 10mm-100mm
Operating Temperatures: Up To 1800°C
Highlight:

2Inch Thickness Ceramic Fiber Board

,

1200mm Length Ceramic Fiber Board

,

Ceramic Fiber Board 2800F

Ceramic Fiber Board

Ceramic Fiber Board,High Temperature Stability, Low Thermal Conductivity, Consistent Density, And Excellent Resistance

We offers high temperature 2300F, 2600F Ceramic Fiber Board. Ceramic Fiber Board is produced through wet forming process. These ceramic fiber boards features include high temperature stability, low thermal conductivity, consistent density, and excellent resistance against thermal shock and chemical attack. Ceramic fiber board also resists oxidation and reduction. Ceramic fiber boards are available in a variety of temperature ratings, densities, thicknesses, widths and lengths, and custom vacuum formed shapes.


We can now supply boards from 1/8 inch thick up to several inches thick per your specification.

New items - Insulation Panel for Boilers and Heaters are made with improved ceramic fiber board for increased mechanical strength and reduced impurities. These panels are especially useful for insulating boilers, water heaters, heaters or combustion chambers, and any heating units (heating elements) of heat shields or gaskets.



Size Chart for Ceramic Fiber Board



Classification Temperature 2300 °F (1260 °C) 2600 °F (1427 °C) 2800 °F (1538 °C)
Thermal Conductivity
(W/mK)
(128 kg/m3 8 lb/ft³)
(Mean Temperature: 500 °C)
<= 0.153 <= 0.153 <= 0.153
Dampish Rate (%) <= 1 <= 1 <= 1
Organic Content (%) <= 5 <= 5 <= 5
Density 19 lb/ft³
300 (kg/m³)/
450 (kg/m³)
19 lb/ft³
300 (kg/m³)
22 lb/ft³
350 (kg/m³)
Standard Dimensions Thickness Width Length
  0.5 inch
(13mm, with density of 450(kg/m³))
24 inches
(600mm)
48 inches (1200mm)
  1 inch
(25mm)
24 inches
(600mm)
48 inches (1200mm)
  2 inches
(50mm)
24 inches (600mm) 48 inches (1200mm)
  2 inches
(50mm)
40inches (1000mm) 48 inches (1200mm)
We can make custom sized Ceramic Fiber Board with specified dimensions.



Ceramic Fiber Board Data Sheet:

Description STD RCF Board HP RCF Board HZ RCF Board
Density (kg/m³) 280/300/320 280/300/320 280/300/320
Classification Temperature (°C) 1260 1260 1430
Maximum Operating Temperature (°C) 1100 1200 1350
Water Content (%) ≤1 ≤1 ≤1
Linear Shrinkage after heating (%) 1000°C*24h<2.5 1100°C*24h<2.5 1350°C*24h<2.5
Thermal Conductivity (W/mK)
200°C 0.074 0.055 0.078
400°C 0.092 0.073 0.102
500°C 0.103 0.086 0.116
600°C 0.127 0.105 0.135
Cold Crushing Strength (MPa) 0.2 0.12-0.2 0.12
Loss Of Ignition (wt%) ≤7 ≤7 ≤7


Excellent Features

  • High temperature stability
  • Excellent thermal shock resistance
  • Excellent strength, hardness
  • Exceptional machinability for precise dimensional control
  • Low thermal conductivity
  • Low heat storage
  • Resistant to hot gas erosion
  • Resists most chemical attacks
  • Easy to cut, handle, and install
  • Low sound transmission
  • Light weight
  • Resists penetration by molten aluminum and other non-ferrous metals
  • Asbestos free

TYPICAL APPLICATIONS:

  • Refractory lining for industrial furnaces for walls, roofs, doors, stacks, etc.
  • Combustion chamber liners, boilers, and heaters
  • Back-up insulation for brick and monolithic refractories
  • Transfer of molten aluminum and other non-ferrous metals
  • Expansion joint boards
  • Barrier against flame or heat
  • Hot face layer for high velocity or abrasive furnace atmosphere
