2300F 2600F Sic Heating Elements Energy Saving Ceramic Fiber Module

2300F 2600F Sic Heating Elements Energy Saving Ceramic Fiber Module
2300F 2600F Sic Heating Elements Energy Saving Ceramic Fiber Module 2300F 2600F Sic Heating Elements Energy Saving Ceramic Fiber Module 2300F 2600F Sic Heating Elements Energy Saving Ceramic Fiber Module

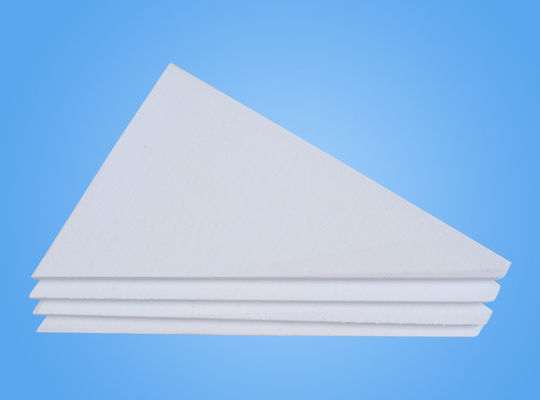

Large Image :  2300F 2600F Sic Heating Elements Energy Saving Ceramic Fiber Module

Product Details:
Place of Origin: CHINA
Brand Name: ZG
Certification: CE
Model Number: MS
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiation
Packaging Details: Strong wooden box for global shipping
Delivery Time: 7-10 work days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 10000 pieces per month

2300F 2600F Sic Heating Elements Energy Saving Ceramic Fiber Module

Description
Dimension(l*w*h): Customized Diameter: From 10mm-100mm
Operating Temperatures: Up To 1800°C
Highlight:

2300F 2600F Ceramic Fiber Module

,

Energy Saving Ceramic Fiber Module

,

2300F 2600F Sic Heating Elements

Ceramic Fiber Module

Ceramic Fiber Module,Excellent Refractory, Energy Saving And Insulating Effects, And Low Heat Storage

Ceramic fiber module has excellent refractory, energy saving and insulating effects, and low heat storage. Ceramic fiber module can be directly fixed on the shell of the industrial furnace; installation is fast and easy. Ceramic fiber module improves the refractory and insulating integrity of furnaces and improves furnace construction process. We has 2300F, 2600F, and different sizes of ceramic fiber module in stock. Our ceramic fiber modules are made from high-quality spun fiber blanket, then folded and compressed to certain dimensions.



Size Chart for Ceramic Fiber Module

Classification Temperature
Theoretical Density
Ceramic Fiber Module
2300°F (1260°C)
Ceramic Fiber Module
2600°F (1427°C)
In Stock Sizes 12 x 12 x 6 in
12 x 12 x 8 in
12 x 12 x 10 in
12 x 12 x 6 in
12 x 12 x 8 in
12 x 12 x 10 in
12 x 12 x 12 in
Theoretical Density 12.5 - 13.7 (lb/ft³)
200 - 220 (kg/m³)
12.5 - 13.7 (lb/ft³)
200 - 220 (kg/m³)
Shrinkage on heating (%) 1000°C X 24H <= -3 1350°C X 24H <= -3



Ceramic Fiber Module Data Sheet Chart:

Description STD Module HP Module HZ Module
Chemical Composition (%)
Al2O3 ≥44 ≥45 ≥34
SiO2 ≥52 ≥54 ≥50
Fe2O3+TiO2 ≤1.0 ≤0.5 ≤0.5
ZrO2 - - ≥15
K2O+Na2O+Fe2O3 ≤1.0 ≤0.2 ≤0.2
Physical Properties
Density (kg/m³) avg 220 220 220
Classification Temperature (°C) 1260 1260 1430
Liner Shrinkage after Heating (%) 1000°Cx24h≤2.5 1100°Cx24h≤2.5 1350°Cx24h≤3.5
Thermal Conductivity (W/mK)
400°C 0.090 0.101 0.118
500°C 0.119 0.120 0.149
600°C 0.152 0.175 0.172



Excellent Features

  • Modules combine the insulating advantages and excellert features of ceramic fiber
  • Excellent thermal shock resistance
  • Low heat storage capacity
  • Rapid and easy installation
  • Provide durable service and lifespan
  • Lightweight



Typical Applications:

Ceramic fiber module for ceramic industry

  • Low mass kiln cars

  • Continuous and batch kilns

  • Door linings

  • Glazing, porcelain furnace linings

Ceramic fiber module for power generation

  • Duct lining

  • Heat recovery

  • Steam system

  • Boiler insulation

  • Stack linings

Ceramic fiber module for steel industry

  • Ladle pre-heaters and covers

  • Heat treat furnace

  • Soaking pit covers and seals

  • Heaters and reformer lining

Ceramic fiber module for other applications

  • Incineration equipment

  • Burner blocks

  • Induction furnace covers

  • Glass tempering furnace
