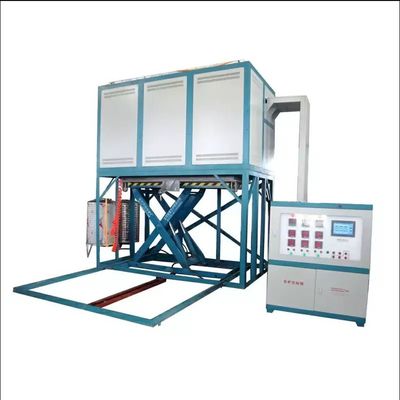

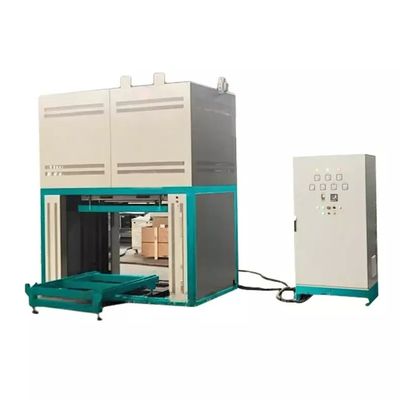

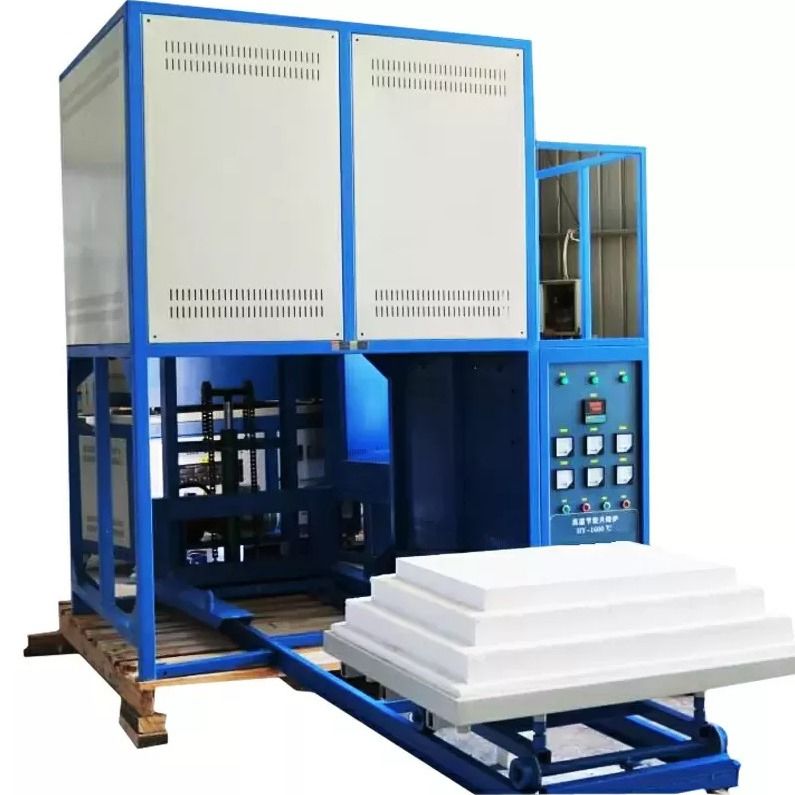

HMI PLC Lifting Sintering Furnace

HMI PLC Lifting Sintering Furnace
HMI PLC Lifting Sintering Furnace HMI PLC Lifting Sintering Furnace HMI PLC Lifting Sintering Furnace

Large Image :  HMI PLC Lifting Sintering Furnace

Product Details:
Place of Origin: CHINA
Brand Name: ZG
Certification: CE
Model Number: MS
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: Strong wooden box for global shipping
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, MoneyGram
Supply Ability: 10000 pieces per month

HMI PLC Lifting Sintering Furnace

Description
Features: High Hardness; High Corrosion Resistance; Low Density; Stability In A Wide Range Of Temperatures; Precision Machining Capability. Material: Alumina
Size: Customized Color: White
Highlight:

HMI PLC Lifting Sintering Furnace

,

1700 C Lifting Sintering Furnace

,

80KW Lifting Sintering Furnace

1700℃ Lifting Furnace



Technical Features:

  • All thermal materials are assembled with lightweight porous alumina brick products, and corundum support load-bearing design is adopted in the structure, without cracking and roof collapse.
  • The furnace adopts special stepped convex concave seal, which has good sealing performance.
  • Corundum mullite material is used for bearing plate, and corundum mullite pipe is embedded at the bottom to strengthen the support, which can more effectively bear the load and prevent the bearing plate from sinking.
  • The burning table can be moved out by electric or manual, which is convenient for loading and unloading products and reduces the labor intensity of operators.
  • The equipment adopts intelligent PLC control to realize the automation of each operation. Save a lot of labor time.
  • The temperature control system adopts imported instrument control, and the instrument has its own PID adjustment, so as to improve the stability and accuracy of temperature control.
  • The top of furnace is equipped with automatic cooling device, which can shorten the cooling time.
  • Different process gases and mixed gases (argon, nitrogen and various mixed gases) can be added according to process requirements.

Specification:



Type Maximum temperature (℃)   Dimensions(W x H x L) mm Temperature control instrument Heating element Maximum processing power (kw)
HMF1700-50/50/100-BL 1700   1900X2450X28000 HMI+PLC Silicon molybdenum rod 80
HMF1700-55/65/120-BL 1700   2000X2650X3000 HMI+PLC Silicon molybdenum rod 90
HMF1700-70/60/70-BL 1700   1600X2650X1600 HMI+PLC Silicon molybdenum rod 45
HMF1700-55/75/96-BL 1700   1650X2850X2000 HMI+PLC Silicon molybdenum rod 60



Application:



As a periodic production furnace, the elevator furnace (sintering furnace) is specially designed for the pre sintering and sintering of electronic ceramic components, magnetic materials, ceramic materials, nano powder and other products, as well as the sintering process of special ceramic components in protective atmosphere. It can also meet the annealing process of high temperature sintering Sapphire and quartz products with ITO target. With the characteristics of stable temperature control, uniform temperature, large output and energy saving, the kiln is very suitable for mass production of enterprises
