Product Details:
|
| Shape: | Round, Square, Rectangular Or Other Customized Shapes | Application: | Oil/Gas Drilling And Mining Bits |
|---|---|---|---|
| Feature: | High Strength, High Hardness And High Wearing Property Of Diamond Layer As Well As Good Self-sharpening | Type: | 1313， 1613 |
| Highlight: | Polycrystalline PDC Cutters,PDC Cutters For Drilling,Mining Bits PDC Cutters |
||

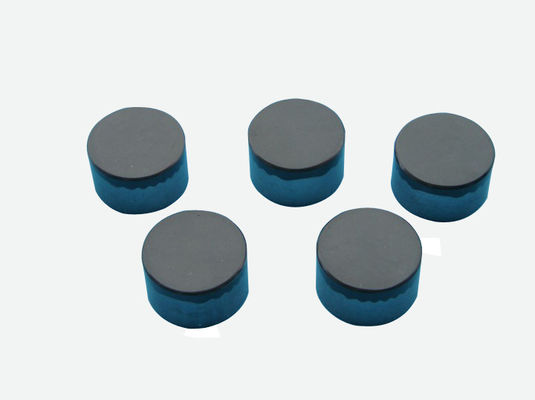

PDC Cutters For Oil/Gas Drilling And Mining Bits
Polycrystalline Diamond Composites rock cutting blanks consist of a polycrystalline diamond layer sintered with tungsten carbide substrate under ultra-high pressure and ultra-high temperature. PDC are produced with carefully chosen high-quality industrial diamond and tungsten carbide materials as well as advanced synthesizing technology. Combining the strengths of both diamond and tungsten carbide, PDC possesses extremely high abrasion resistance and extremely strong impact resistance ability. Versatile in applications, PDC is widely used for various drilling tools such as petroleum bits, mining bits, geological drilling bits, and other rock cutting and processing tools.

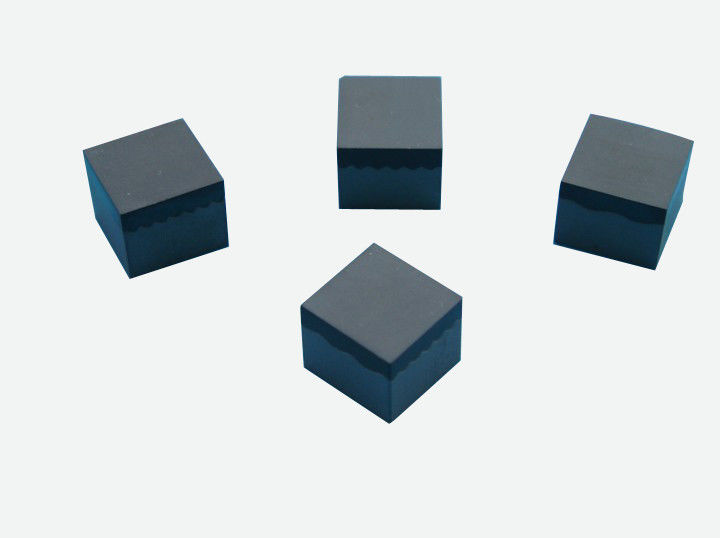

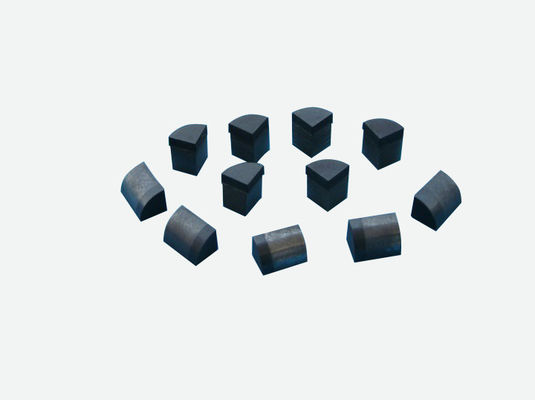

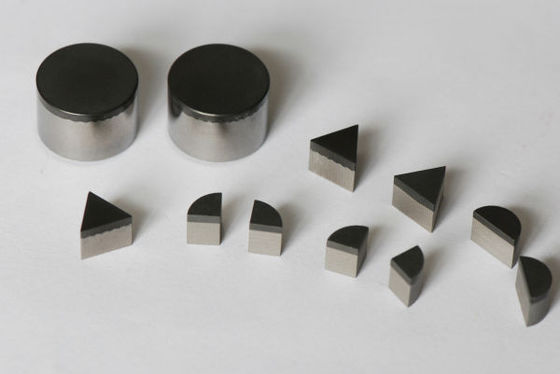

Customize Service: The standard shape of PDC is round; other shapes, such as rectangle, triangle, square, semi-circle and so on, can also be custom-made per customers' requirements. We will contact you promptly upon receiving your SUPREME Products Request Form.
 |
||
| Product Code | Specification | |
| D ( mm ) | H ( mm ) | |
| SSII 0803 | 8.00 | 3.53 |
| SSII 0808 | 8.00 | 8.00 |
| SSII 1004 | 10.00 | 4.50 |
| SSII 1008 | 10.00 | 8.00 |
| SSII 1304 | 13.30 | 4.50 |
| SSII 1308 | 13.44 | 8.00 |
| SSII 1313 | 13.44 | 13.20 |
| SSII 1610 | 16.00 | 10.00 |
| SSII 1613 | 16.00 | 13.20 |
| SSII 1908 | 19.05 | 8.00 |
| SSII 1910 | 19.05 | 10.00 |
| SSII 1913 | 19.05 | 13.20 |
| SSII 1916 | 19.05 | 16.31 |
| SSII 1919 | 19.05 | 19.00 |
|
Diamond layer t = 1 mm. Maximum thickness can be processed to 3 mm. |
||
