Product Details:
|
| Shape: | Round, Square, Rectangular Or Other Customized Shapes | Application: | Cutting Tools |
|---|---|---|---|
| Feature: | High Strength, High Hardness And High Wearing Property Of Diamond Layer As Well As Good Self-sharpening | Type: | PCBN1200 |
| Highlight: | 25 Micron Diamond Tools,5 Micron PCD Cutting Tool,10 Micron PCD Cutting Tool |
||

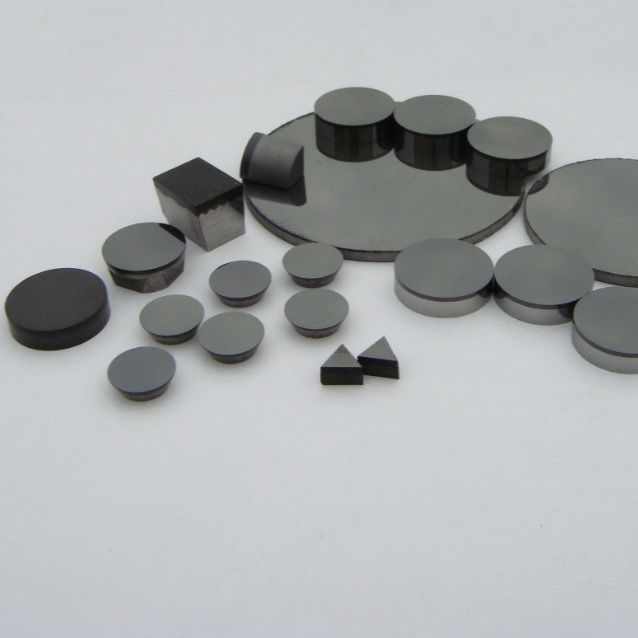

PCD Cutting Tool Blanks in 5 micron, 10 micron, 25 micron, rectangle, triangle, square and semi-circle
The standard shape of PCBN Cutting Tool Blanks is round. Other shapes, such as rectangle, triangle, square, semi-circle and so on, can also be customized per customers' requirements. Supreme Superabrasives has various equipments such as laser cutting machines, wire cutting machines and various processing equipments to cut blanks, regardless of their thickness into special sizes and shapes per customers' requirements.
PCBN Cutting Tool Blanks consist of fine CBN grains sintered under ultra-high pressure and ultra-high temperature. Combining the strengths of hardness, thermal stability, thermal conductivity, and strong impact resistance ability characteristic of CBN, they are ideal for cutting tools for the machining of ferrous metal and alloy, all with high productive efficiency, high machining precision, and good surface quality.
CBN Cutting Tools Blanks are composed by Solid CBN and Carbide-base PCBN series:
| Solid CBN | Item Code | Diameter(mm) | Thickness(mm) | |
|
|
||||
| BN095 | 9.5 | 3.2 | ||
| BN127 | 12.7 | 3.2 | ||
| BN132 | 13.2 | 3.2 | ||
| BN190 | 19.05 | 4.76/6.35 | ||
| BN250 | 25.4 | 4.76/6.35 | ||
|
Characteristic:
|
Usage:
|
|||
| Note: Customized size of non-standard shapes available, such as rectangular, square, triangle, rhombus, sector and so on. | ||||
| Carbide-base PCBN | Item Code | Diameter(mm) | Thickness(mm) | |
|
|
||||
| PCBN1200 | 12.7 | 1.6/2/3.2 | ||
| PCBN1300 | 13.2 | 1.6/2/3.2 | ||
| PCBN1900 | 19 | 1.6/2/3.2 | ||
|
Characteristics:
|
Usage
|
|||
| Note: Customized size of non-standard shapes available, such as rectangular, square, triangle, rhombus, sector and so on. | ||||
