Product Details:
|
| Application: | Shot Peening | Type: | Beads |
|---|---|---|---|
| Material: | Zirconium Silicate | Color: | White |
| Density: | 3.85 G/cm3 | Size: | 2.0-3.0mm |
| Highlight: | 3.0mm Ceramic Shots,2.0mm Ceramic Shots,Ceramic Shots For Shot Peening |
||

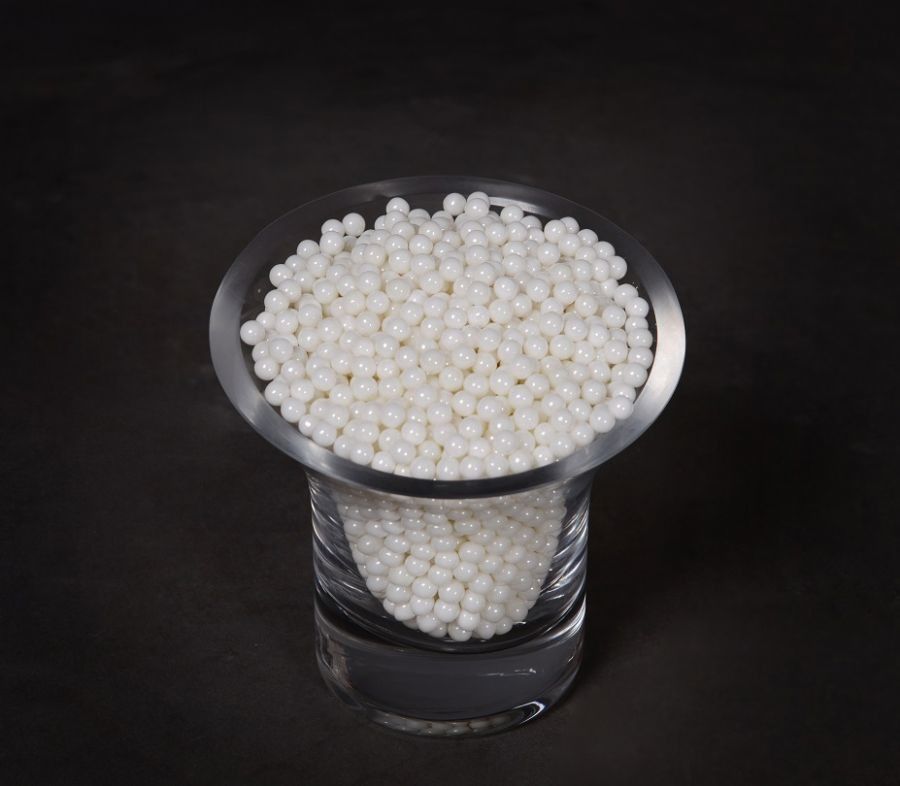

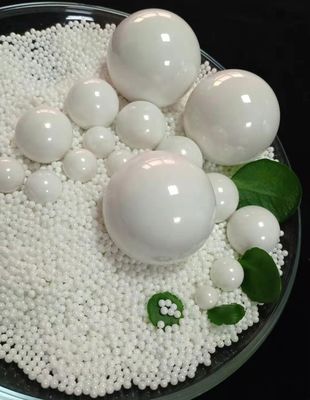

Ceramic Shots for Shot Peening
Features:
Highest Durability - Due to strong mechanical resistance and high toughness
Highest consistency from bead to bead in size distribution, sphericity, density and hardness
No Metallic Contamination and Lowest Dust Generation
Fine Shots efficient for multi peening steps
Lowest Machine Wear - Due to reduced shot throwing velocity needed to achieve the same peening intensities, and the extremely smooth beads' surface
Improved Part Life - Offering high level residual compressive stress close to the surface
Applications
CZ Beads can be used in these applications, just name a few:
Shot peening to extend fatigue life by stress relieving, peen-forming and peen-straightening
Intensive use in wheel turbine machines and on High Strength Steel (HSS) at the same intensity range as steel shots
Chemical Composition
| Zirconium dioxide ZrO2 | 60 - 70% |
| Silicon glass SiO2 | 20 - 30% |
| Aluminum Oxide Al2O3 | < 10% |
Properties *
| Density (g/cc) | 3.85 ± 0.05 |
| Bulk density (kg/l) | 2.3 |
| Hardness (HV) | 726 |
| Color | White ( glossy sheen ) |
Standard Sizes (∅,mm )*
Z150 0.15-0.21 Z600 0.60-0.85
Z210 0.21-0.30 Z850 0.85-1.18
Z300 0.30-0.425
