Product Details:
|
Application: | Integrated Circuits , Detector / Sensor Device , MEMS Fabrication, Opto-electronic Components, And Solar Cells | Diameter: | Ø 2" / Ø 3" / Ø 4" / Ø 6" / Ø 8" / Ø 12" |
---|---|---|---|
Oxide Thickness: | 100 A ~ 6 Um | Grade: | Prime / Test / Dummy Grade |
Highlight: | Higher Uniformity Thermal Oxide Wafer,Thermal Oxide Wafer as Insulator,2" thermal oxide silicon wafer |

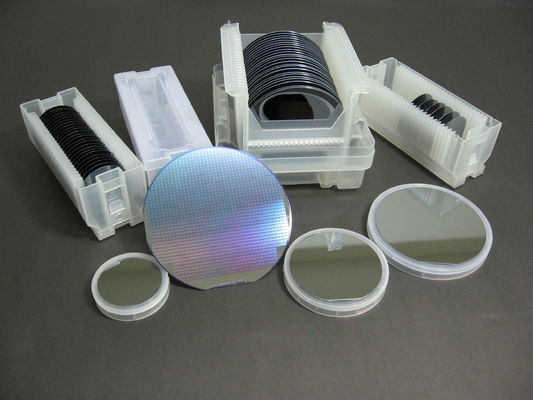

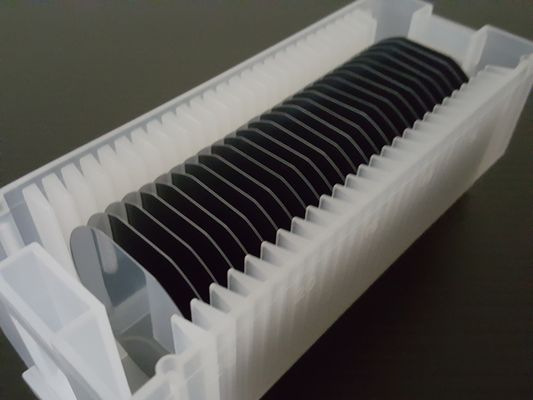

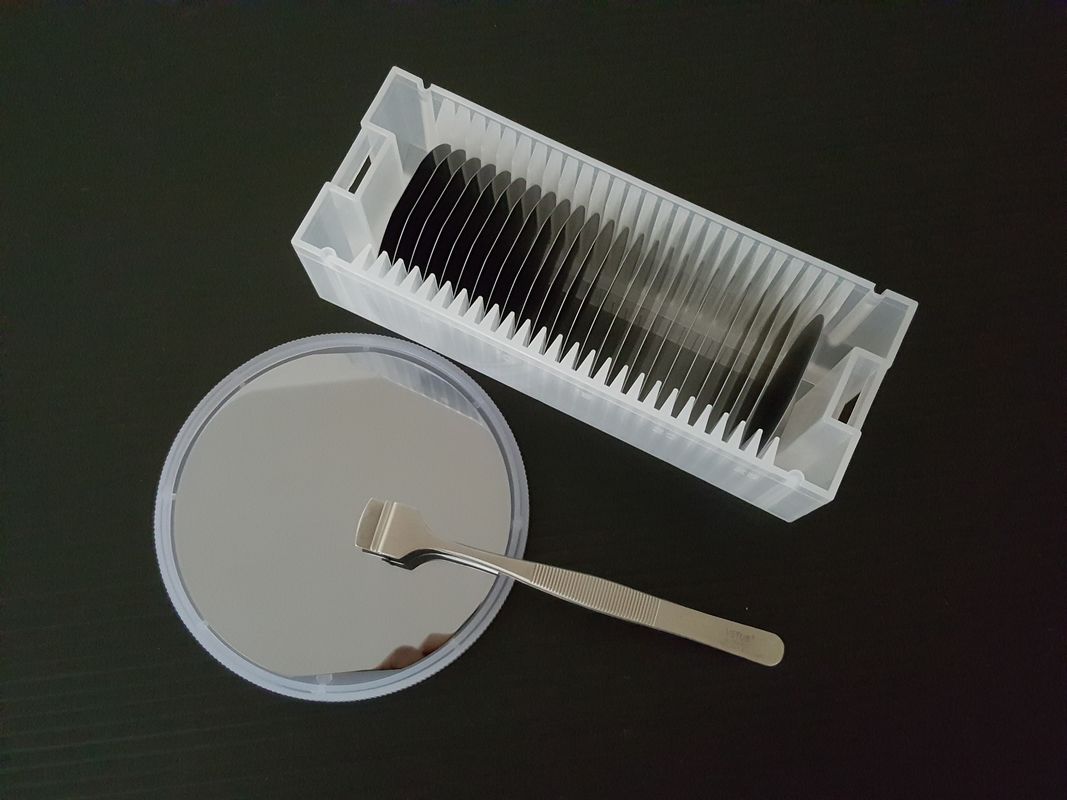

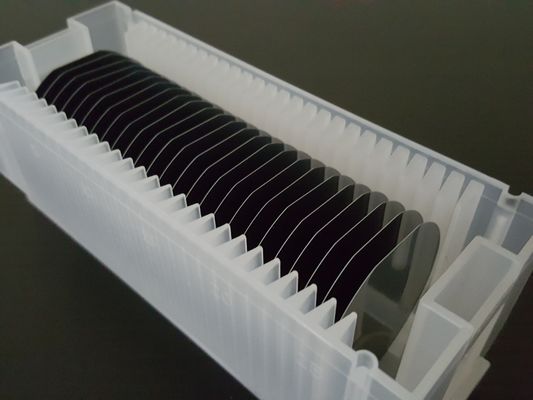

Thermal Oxide Wafer, higher uniformity, and higher dielectric strength , excellent dielectric layer as an insulator
Thermal oxide or silicon dioxide layer is formed on bare silicon surface at elevated temperature in the presence of an oxidant , the process is called thermal oxidation. Thermal oxide is normally grown in a horizontal tube furnace , at temperature range from 900°C ~ 1200°C , using either a "Wet" or "Dry" growth method . Thermal oxide is a kind of "grown" oxide layer , compared to CVD deposited oxide layer , it has a higher uniformity, and higher dielectric strength , it is an excellent dielectric layer as an insulator . In most silicon- based devices, thermal oxide layer play an important role to pacify the silicon surface to act as doping barriers and as surface dielectrics . we provides thermal oxide wafer in diameter from 2" to 12 " , we always choose prime grade and defect free silicon wafer as substrate for growing high uniformity thermal oxide layer to meet your specific requirements . Contact us for further information on price & delivery time .
Thermal Oxide Capability
Typically after thermal oxidation process , both front side and back side of silicon wafer have oxide layer . In case only one side oxide layer is required , we can remove back oxide and offer one side thermal oxide wafer for you .
Oxide thickness range | Oxidation technique | Within wafer uniformity |
Wafer to wafer uniformity |
Surface processed |
---|---|---|---|---|
100 Å ~ 500Å | dry oxide | +/- 5% | +/- 10% | both sides |
600 Å ~ 1000Å | dry oxide | +/- 5% | +/- 10% | both sides |
100 nm ~ 300 nm | wet oxide | +/- 5% | +/- 10% | both sides |
400 nm ~ 1000 nm | wet oxide | +/- 3% | +/- 5% | both sides |
1 um ~ 2 um | wet oxide | +/- 3% | +/- 5% | both sides |
3 um ~ 4 um | wet oxide | +/- 3% | +/- 5% | both sides |
5 um ~ 6 um | wet oxide | +/- 3% | +/- 5% | both sides |
Thermal Oxide Wafer Application
100 A | Tunneling Gates |
150 A ~ 500 A | Gate Oxides |
200 A ~ 500 A | LOCOS Pad Oxide |
2000 A ~ 5000 A | Masking Oxides |
3000 A ~ 10000 A | Field Oxides |
Product Specification
Qxidation technique | Wet oxidation or Dry oxidation |
---|---|
Diameter | Ø 2" / Ø 3" / Ø 4" / Ø 6" / Ø 8" / Ø 12" |
Oxide thickness | 100 A ~ 6 um |
Tolerance | +/- 5% |
Surface | Single side or double sides oxide layer |
Furnace | Horizontal tube furnace |
Gase | Hydrogen and Oxygen gases |
Temperature | 900 C ° - 1200 C ° |
Refractive index | 1.456 |
