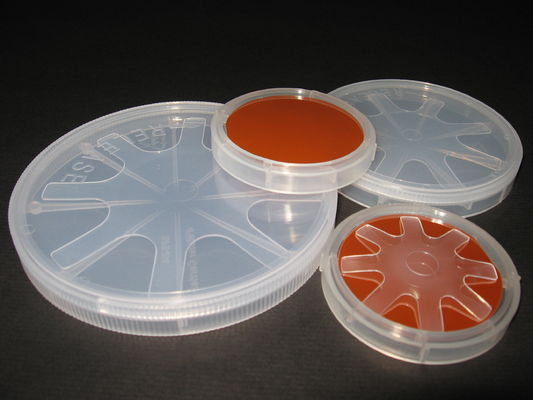

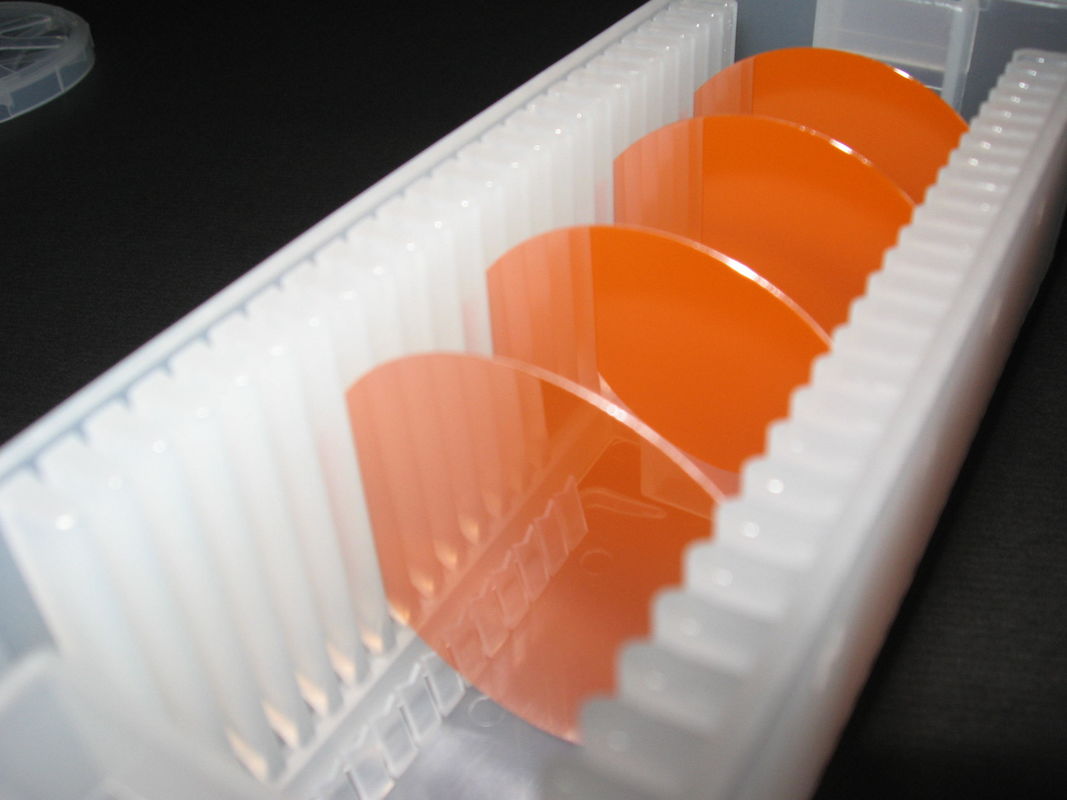

Single Crystal GaP Wafer Gallium Phosphide As Red Yellow And Green LED

Description
Application: Red , Yellow , And Green LED ( Light-emitting Diodes ) Diameter: Ø 2"
Thickness: 400 Um Grade: Epi Polished Grade / Mechanical Grade
Highlight:

Single Crystal GaP Wafer

,

Single Crystal Gallium Phosphide

,

Green LED GaP Wafer

Single Crystal GaP Wafer ( Gallium Phosphide ),widely used as red , yellow , and green LED ( light-emitting diodes )



We provides high quality single crystal GaP wafer ( Gallium phosphide ) to electronic and optoelectronic industry in diameter up to 2 inch . Gallium phosphide ( GaP ) crystal is an orange-yellow semi-translucent material formed by two elements , Gallium and Phosphide , growth by Liquid Encapsulated Czochralski ( LEC ) method . GaP wafer is an important semiconductor material which have unique electrical properties as other III-V compound materials and is widely used as red , yellow , and green LED ( light-emitting diodes ) . We have as-cut single crystal GaP wafer for your LPE application , and also provide epi ready grade GaP wafer for your MOCVD & MBE epitaxial application . Please contact us for more product information .



III-V Compound Wafer

We provides a wide range of compound wafer including GaAs wafer, GaP wafer, GaSb wafer, InAs wafer, and InP wafer .



Electrical and Doping Specification



Dopant available S / Zn / Cr / Undoped
Type of conductivity N / P ,Semi-conducting / Semi-insulating
Concentration 1E17 - 2E18 cm-3
Mobility > 100 cm2 / v.s.

Product Specification


Growth LEC
Diameter Ø 2"
Thickness 400 um
Orientation <100> / <111> / <110> or others
Off orientation Off 2° to 10°
Surface One side polished or two sides polished
Flat options EJ or SEMI. Std .
TTV <= 10 um
EPD <= 2E5 cm-2
Grade Epi polished grade / mechanical grade
Package Single wafer container
