Mechanical Grade Technical Ceramic Parts InP Wafer Indium Phosphide

Description
Application: Red , Yellow , And Green LED ( Light-emitting Diodes ) Diameter: Ø 2" / Ø 3"
Thickness: 500 Um ~ 625 Um Grade: Epi Polished Grade / Mechanical Grade
Highlight:

Technical Ceramic Parts InP Wafer

,

Mechanical Grade InP Wafer

,

InP Wafer Indium Phosphide



InP wafer ( Indium phosphide )

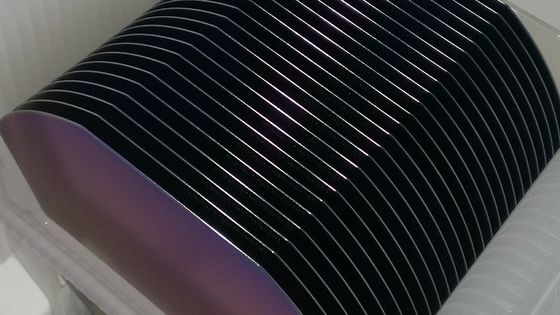

We provides high quality single crystal InP wafer ( Indium phosphide ) to micro-electronic ( HBT/ HEMT ) and opto-electronic industry ( LED / DWDM / PIN / VCSELs ) in diameter up to 3 inch . Indium phosphide ( InP ) crystal is formed by two elements , Indium and Phosphide , growth by Liquid Encapsulated Czochralski ( LEC ) method or VGF method . InP wafer is an important semiconductor material which have superior electrical and thermal properties , compared to silicon wafer and GaAs wafer , InP wafer has higher electron mobility ,higher frequency , low power consumption , higher thermal conductivity and low noise performance . We can provide epi ready grade InP wafer for your MOCVD & MBE epitaxial application .Please contact us for more product information .



III-V Compound Wafer

We provides a wide range of compound wafer including GaAs wafer, GaP wafer, GaSb wafer, InAs wafer, and InP wafer .



Electrical and Doping Specification

Product Specification

Growth LEC / VGF
Diameter Ø 2" / Ø 3" / Ø 4"
Thickness 350 um ~ 625 um
Orientation <100> / <111> / <110> or others
Off orientation Off 2° to 10°
Surface One side polished or two sides polished
Flat options EJ or SEMI. Std .
TTV <= 10 um
Bow / Warp <= 20 um
Grade Epi polished grade / mechanical grade

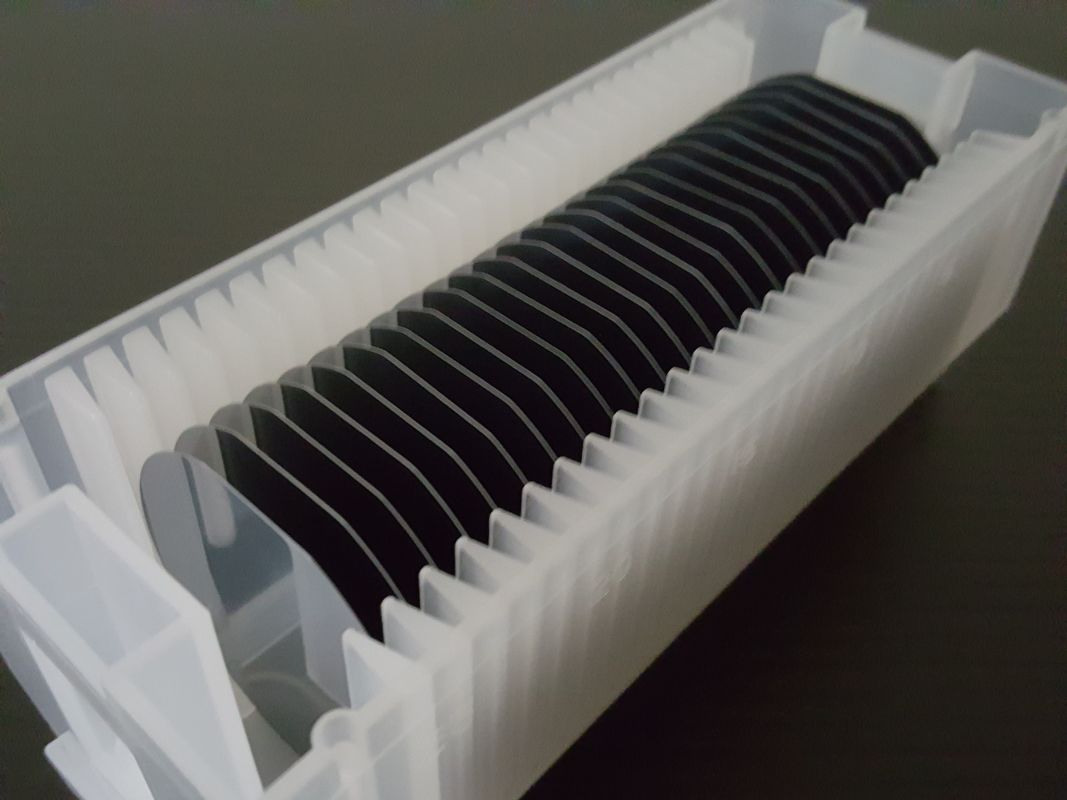

Package Single wafer container
