Optoelectronic Device SiC Wafer for Light Emitting Diodes

I'm Online Chat Now

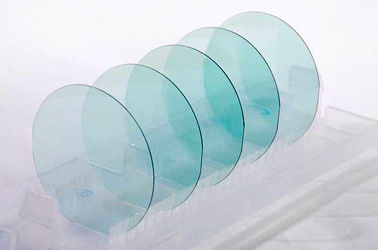

Optoelectronic Device SiC Wafer for Light Emitting Diodes

Optoelectronic Device SiC Wafer for Light Emitting Diodes
Optoelectronic Device SiC Wafer for Light Emitting Diodes

Large Image :  Optoelectronic Device SiC Wafer for Light Emitting Diodes

Product Details:
Place of Origin: CHINA
Brand Name: ZG
Certification: CE
Model Number: MS
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD10/piece
Packaging Details: Strong wooden box for Global shipping
Delivery Time: 3 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 pieces per month

Optoelectronic Device SiC Wafer for Light Emitting Diodes

Description
Application: High Power Device Optoelectronic Device GaN Epitaxy Device Light Emitting Diode Diameter: Ø 1" / Ø 2" / Ø 3" / Ø 4"/ Ø 6"
Thickness: 330 Um ~ 350 Um Grade: Production Grade / Research Grade
Highlight:

Optoelectronic Device SiC Wafer

,

SiC Wafer for Light Emitting Diodes





SIC Wafer



Semiconductor Wafer, Inc. ( SWI ) provides high quality single crystal SiC wafer ( Silicon Carbide ) to electronic and optoelectronic industry . SiC wafer is a next generation semiconductor material , with unique electrical properties and excellent thermal properties , compared to silicon wafer and GaAs wafer , SiC wafer is more suitable for high temperature and high power device application . SiC wafer can be supplied in diameter 2 inch , both 4H and 6H SiC , N-type , Nitrogen doped , and semi-insulating type available . Please contact us for more product information .



SiC Wafer Application



High frequency device High temperature device
High power device Optoelectronic device
GaN epitaxy device Light emitting diode



SiC Wafer Properties


Polytype 6H-SiC 4H-SiC
Crystal stacking sequence ABCABC ABCB
Lattice parameter a=3.073A , c=15.117A a=3.076A , c=10.053A
Band-gap 3.02 eV 3.27 eV
Dielectric constant 9.66 9.6
Refraction Index n0 =2.707 , ne =2.755 n0 =2.719 ne =2.777

Product Specification


Polytype 4H / 6H
Diameter Ø 2" / Ø 3" / Ø 4"
Thickness 330 um ~ 350 um
Orientation On axis <0001> / Off axis <0001> off 4°
Conductivity N - type / Semi-insulating
Dopant N2 ( Nitrogen ) / V ( Vanadium )
Resistivity ( 4H-N ) 0.015 ~ 0.03 ohm-cm
Resistivity ( 6H-N ) 0.02 ~ 0.1 ohm-cm
Resistivity ( SI ) > 1E5 ohm-cm
Surface CMP polished
TTV <= 15 um
Bow / Warp <= 25 um
Grade Production grade / Research grade
