Description
Application: Power Device , LED , Sensor And Detector Diameter: Ø 1" / Ø 2" / Ø 3" / Ø 4"/ Ø 6"
Thickness: 330 Um ~ 350 Um Grade: Production Grade / Research Grade
Highlight:

CdTe Technical Ceramic Parts

,

CdS Technical Ceramic Parts

,

ZnSe ZnTe Wafer

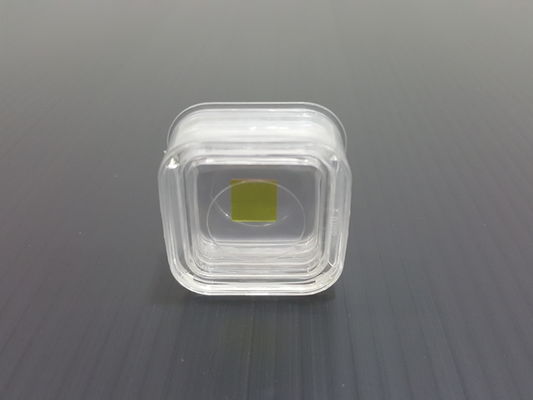

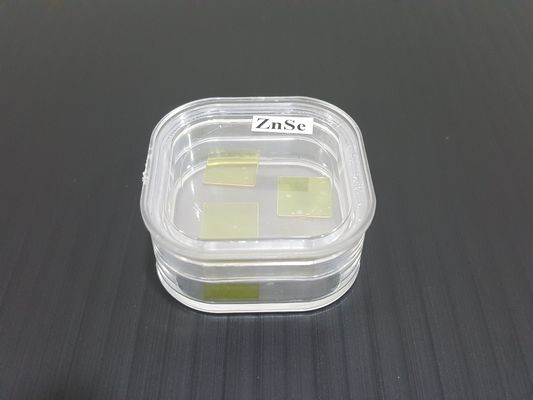

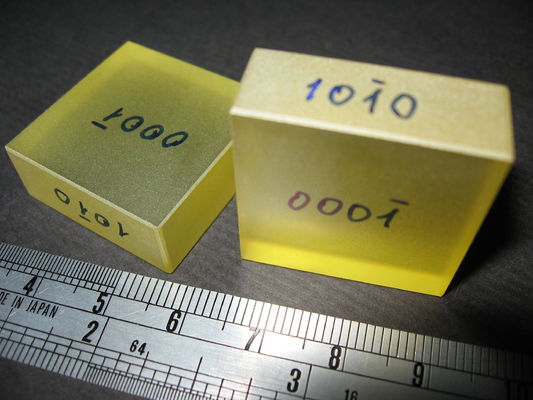

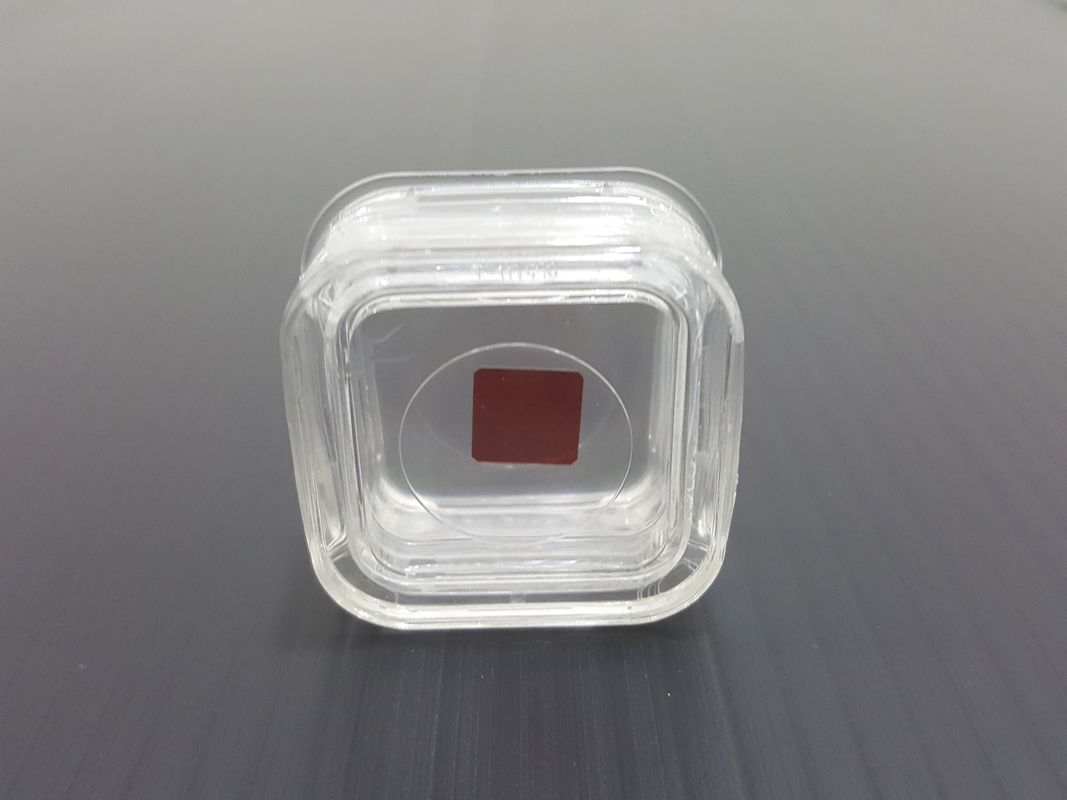

ZnO Wafer, CdS wafer, CdSe wafer, CdTe wafer, ZnS wafer, ZnSe wafer and ZnTe wafer





We provides binary ( CdS , CdSe , ZnS , ZnSe , ZnTe ) and ternary ( CdZnTe ) II-VI group single crystal compound wafer for IR optics and THz detectors application . Max. possible diameter is 30 mm . II-VI compound wafer are compounds formed by elements from II &VI group of the periodic table,Normally the crystal is as-grown crystal without doping any elements , but we can also offer doped crystal and various type of annealing as per customer's requirement . Wafer is produced as rectangular and round shape with any required orientation , in dimension 10 x 10 x 0.5 mm and two sides polished surface . We have complete product line and can offer you a wide range of II-VI group compound wafer with quick delivery time and competitive price . Contact us for more product information .



II-VI Compound Wafer Available



Product Specification



Growth HPVB
Crystal structure Cubic / Hexagonal
Size 5 x 5 mm / 10 x 10 mm
Thickness 0.5 mm / 1 mm / 3 mm
Orientation <0001> / <1120> / <1102> / <1010>
  <100> / <111> / <110>
Surface one side polished / two sides polished
Roughness Ra <= 10 A
Package Membrance box
