Product Details:
|
| Application: | Thin Film And Thick Film Microelectronic , High Power And High Frequency Circuit RF / Microwave Components And Capacitor Or Resistor | Diameter: | Ø 1" / Ø 2" / Ø 3" / Ø 4" |
|---|---|---|---|
| Thickness: | 0.4 Mm / 0.5 Mm / 1 Mm | Grade: | SAW Grade And Optical Grade |
| Highlight: | Technical Ceramic Parts Ceramic Substrate,3" AlN Ceramic Substrate,4" AlN Ceramic Substrate |
||

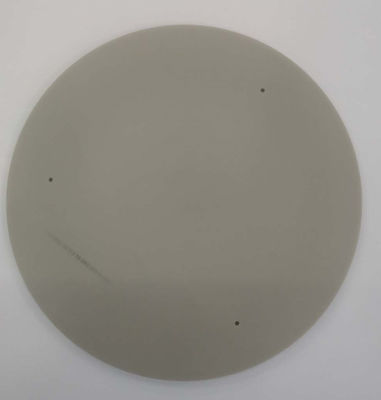

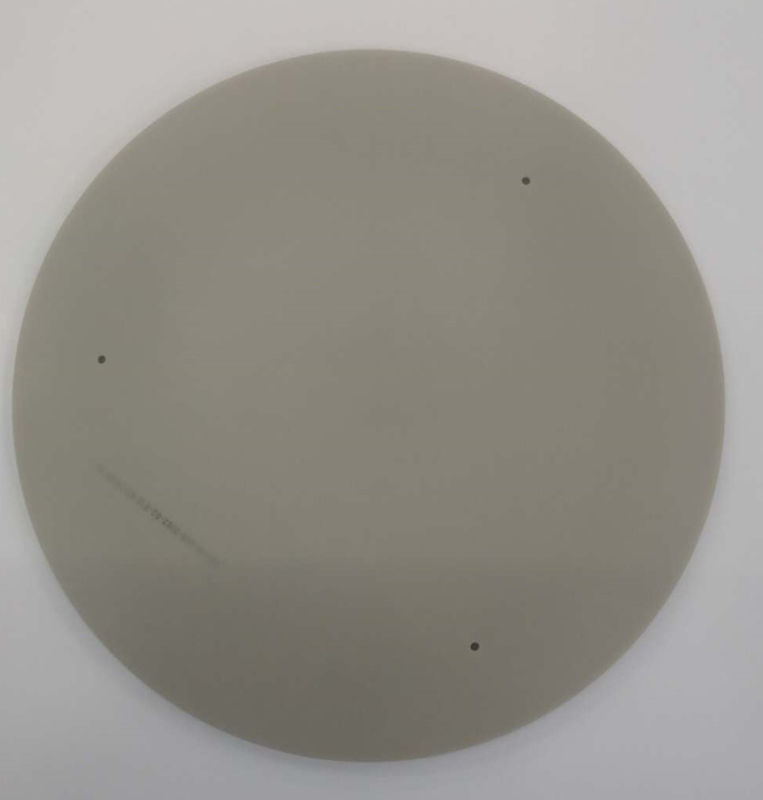

AIN ceramic substrates
We provides AlN ceramic substrate . AlN substrate is one of the most popular ceramic substrate which has excellent heat resistance, high mechnical strength , abrasion resistance and small dielectric loss . The surface of AlN substrate is quite smooth and low porosity . Aluminium Nitride has higher thermal conductivity , compared to alumina substrate , It is about 7 to 8 times high . AlN substrate is an excellent electronic package material . We provides AlN substrate for a wide range of applications, including thin film and thick film microelectronic , high power and high frequency circuit RF / microwave components and capacitor or resistor , contact us for more ceramic wafer product information .
| Chemical formula | AlN |
| Color | Gray |
| Density | 3.3 g/cm 3 |
| Thermal conductivity | 160 ~ 190 W/m. K |
| Thermal Expansion ( x10 -6 / ℃ ) | 4.6 |
| Dielectric strength | 14E6 |
| Dielectric Constant (at 1MHZ) | 8.7 |
| Loss Tangent (x10 -4 @1MHZ) | 5 |
| Volume Resistivity | >1E14 ohm-cm |
| Diameter | Ø 1" / Ø 2" / Ø 3" / Ø 4" |
|---|---|
| Square size | 10 x 10 / 20 x 20 / 50 x 50 / 100 x 100 mm |
| Thickness | 0.4 mm / 0.5 mm / 1 mm |
| Surface | As fired |
| one side polished / two sides polished | |
| Roughness | Ra <= 0.3 um |
