Product Details:
|
| Shape: | Round, Square, Rectangular Or Other Customized Shapes | Application: | Wire Drawing Die |
|---|---|---|---|
| Feature: | High Strength, High Hardness And High Wearing Property Of Diamond Layer As Well As Good Self-sharpening | Type: | 4015, 4023, 4029, 7040 |
| High Light: | Polycrystalline Diamond Tools,PCD Diamond Tools,Die Blanks PCD Tungsten Carbide |
||
Polycrystalline Diamond, PCD Tungsten Carbide Supported Wire Die Blanks
Polycrystalline Diamond wire drawing die blanks is diamond crystal block of diamond particles and catalyst cobalt sintered under high temperature and ultrahigh pressure. The wire dies are made of sintered diamonds, which is supreme-grade material imported from foreign countries. It has the wear resistance, high hardness and good thermal conductivity of natural diamond and the similar toughness of hard alloy. Provided wire dies blanks have a long useful life and can be used in high-speed drawing of many kinds of alloy, such as stainless steel, tungsten, molybdenum and aluminum. The wire die blanks can be manufactured with different kinds of designs, dimensions, types or specifications according to customers’ specific requirements. We can supply our clients the wire dies blanks in bulk quantity because of high production capacity and efficiency in our factory.

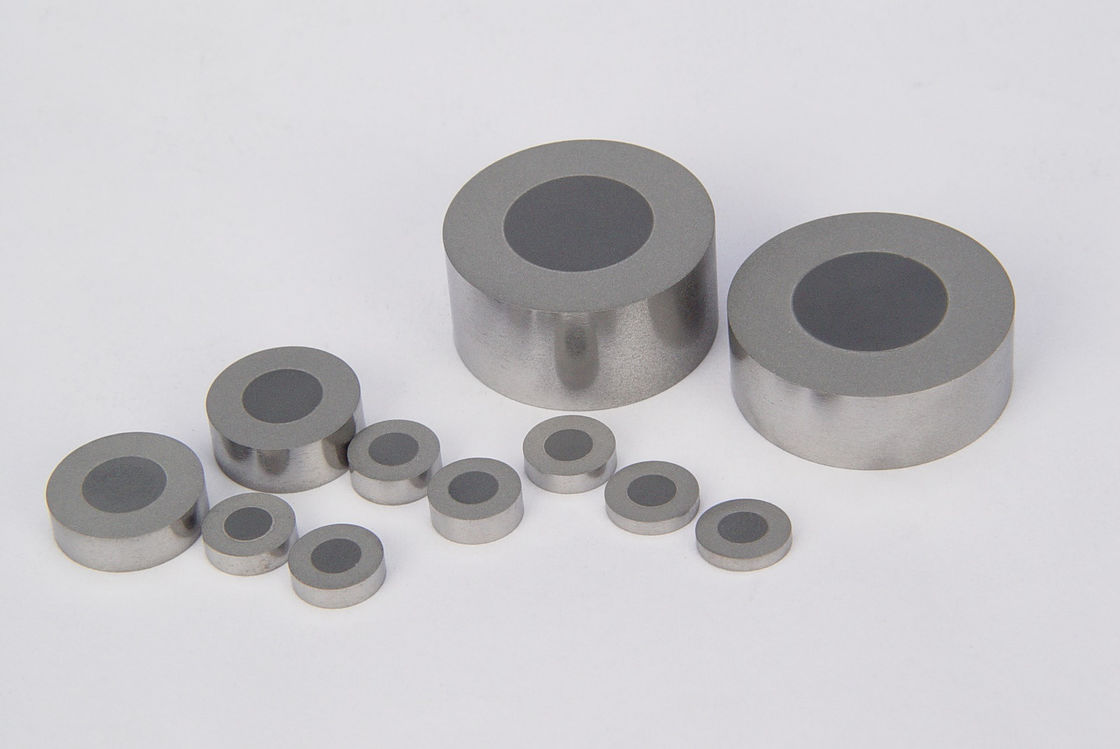

The polycrystalline diamond core is sintered tightly with the cemented carbide support ring as a whole, and the support ring is used to improve the crack strength of die blank. Therefore, such products can withstand high strength and high speed drawing.
We adopt the latest laser technologywire & electrical discharge machining (EDM) to provide our customers with a superior quality polycrystalline diamond wire drawing die blanks. Products supported by cemented carbide can bear greater tensile force and are used for drawing wire with thicker diameter.
With decades years consistent R&D, stable production capacity and improved efficiency and our staff’s professional operation, we can provide quotes within 12 hours and ship orders within 5 business working days from when the orders are received.

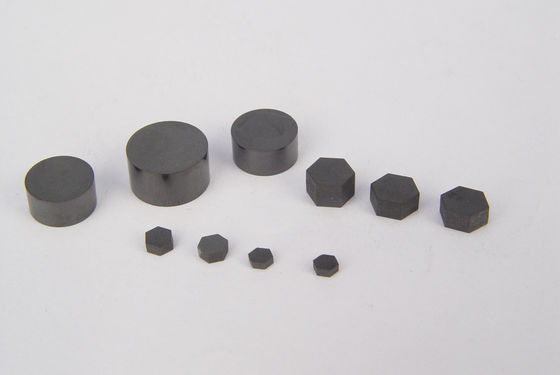

Polycrystalline Diamond wire drawing die blanks of Supreme Company is divided into self supported blanks series and Tungsten carbide supported blanks series. Self supported blanks series consists of round and hexagon two types:
Main features: Super durability and high hardness/Good thermal conductivity
specifications
| Products number | ADDMA | Φd (mm) |
T (mm) |
Grain Size Available (μm) | ||
| 5μm | 10μm | 25μm | ||||
| SLH2510 | D6 | 2.5±0.20 | 1.0+0.20 | √ | √ | √ |
| SLH3215 | D12 | 3.2±0.20 | 1.5+0.2 | √ | √ | √ |
| SLH5225 | D15 | 5.2±0.30 | 2.5＋0.20 | √ | √ | √ |
| SLH5235 | D18 | 5.2±0.30 | 3.5＋0.20 | √ | √ | √ |
| SLR3210 | D6 | 3.2±0.20 | 1.0＋0.20 | √ | √ | √ |
| SLR3215 | D12 | 3.2±0.20 | 1.5+0.20 | √ | √ | √ |
| SLR5225 | D15 | 5.2±0.30 | 2.5＋0.20 | √ | √ | √ |
| SLR5235 | D18 | 5.2±0.30 | 3.5＋0.20 | √ | √ | √ |
| SLR7040 | D21 | 7.0±0.50 | 4.0±0.20 | √ | √ | √ |
| SLR9853 | D24 | 9.8±0.50 | 5.3±0.20 | √ | √ | √ |
