Epitaxial Films GGG Gadolinium Gallium Garnet Good Mechanical Stability

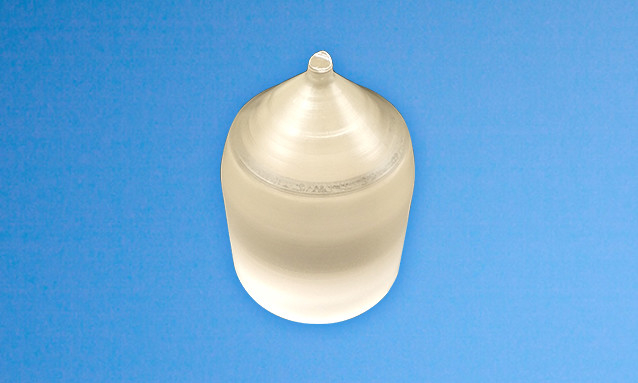

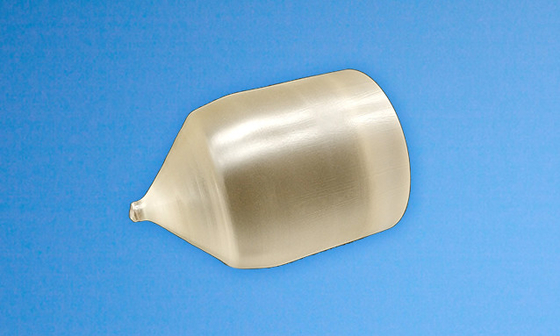

Large Image : Epitaxial Films GGG Gadolinium Gallium Garnet Good Mechanical Stability

Product Details:

Place of Origin:	CHINA
Brand Name:	ZG
Certification:	CE
Model Number:	MS

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Packaging Details:	Strong wooden box for Global shipping
Delivery Time:	3 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10000 pieces per month

Contact Now

Epitaxial Films GGG Gadolinium Gallium Garnet Good Mechanical Stability

Description

Application:

Surface Acoustic Wave (SAW) And Bulk Acoustic Wave (BAW) Devices.

Products:

Ce:luag

Advantage:

Good Mechanical And Chemical Stability

Diameter:

Φ3-40mm

High Light:

Epitaxial Films Technical Ceramic Parts

GGG Technical Ceramic Parts

GGG Gadolinium Gallium Garnet

Gadolinium gallium garnet (GGG) substrate, an excellent substrate material for Bi Fe garnet epitaxial films

Gadolinium gallium garnet (GGG) substrate, one of the earlier developed garnet materials, can not be used as the substrate of high bismuth substituted iron garnet epitaxial layer because of its small lattice constant. Therefore, the sggg crystals with Ca, Mg and Zr as substitution ions are more suitable for the epitaxial films.

Material properties

Molecular formula	Substituted GdaGa5O12
Crystal structure	Cubic system
Lattice constant	a=12.497Å
Growth Fang	Czochralski
Hardness	7.5 Mohs
Density	7.09g/cm³
Melting point	1730℃
Reflection coefficient	1.954 at 1064nm

Technical parameter

Size	Maxψ76.2mm(3inch)
Thickness	0.5mm/1mm
Polishing	Single or double sided
Crystal orientation	±0.2°
Edge orientation accuracy	2°(The characteristic requirements can reach 1 ° within)
Oblique chip	2°(According to specific requirements, the crystal with edge orientation can be tilted at a specific angle (tilt angle 1 °- forty-five °))
Surface roughness	Ra≤1nm
Packing	Class 100 clean bag, class 1000 ultra static room
