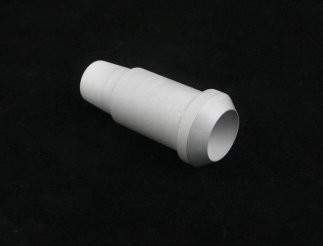

99% Boron Nitride Ceramic Nozzles For Gas Atomization

99% Boron Nitride Ceramic Nozzles For Gas Atomization
99% Boron Nitride Ceramic Nozzles For Gas Atomization

Large Image :  99% Boron Nitride Ceramic Nozzles For Gas Atomization

Product Details:
Place of Origin: CHINA
Brand Name: ZG
Certification: CE
Model Number: MS
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Packaging Details: Strong wooden box for Global shipping
Delivery Time: 3 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 pieces per month
Contact Now

99% Boron Nitride Ceramic Nozzles For Gas Atomization

Description
Name: Boron Nitride Ceramic Nozzles Maximum Working Tempreture: 2100℃
Material: Boron Nitride Density: 2.3-3.0g/cm3
Composition: BN>99% Usage: Gas Atomization
Highlight:

99% Boron Nitride Ceramic

,

Boron Nitride Ceramic Nozzles

,

Gas Atomization Nitride Ceramic Nozzles

Hot-Press Boron Nitride BN nozzles for amorphous soft magnetic alloy spray tapes and metal powders gas atomization



Performance

  1. Use temperature up 2400°C
  2. High density
  3. High hardness
  4. Lower thermal conductivity
  5. Chemical inertness
  6. Resistance to molten melten metals



The main products of Boron Nitride Ceramics

Hot pressing hexagonal boron nirtride ceramic and boron nitride composite ceramic, includes:

  • Insulation tubes, sleeve, and parts for vacuum furnace
  • nozzles for amorphous soft magnetic alloy spray tapes and metal powders gas atomization
  • horizontal continuous casting separation rings/crystal tubes
  • crucibles, composite ceramic molds
  • TiB2/graphite composite ceramic cathodes for electrolytic aluminum
  • graphite/BN ceramic composite evaporator boats for vacuum evaporation and aluminum plating
  • large and medium-sized vacuum hot pressing furnaces
  • large size hot pressing molds, etc.





Boron Nitride Nozzle Basic Information & Materials

Typical Properties BN-H BN99 BN-Ca BN-A BN-B BN-C BN-D BN-E
Composition hBN>99% hBN>99% hBN>98.5% hBN+AL+SI hBN+AL+ZR hBN+SIC hBN+ZrO2 hBN+ALN
Binder B2O3 B2O3 B2O3 B2O3+Al2O3+SiO2 B2O3+Al2O3 B2O3 B2O3+Al2O3 B2O3+Al2O3
Color White White White White Graphite White Graphite Greyish-Green White Graphite Greyish-Green
Typical Density (g/cm3) 1.55~1.6 1.85~1.98 1.98~2.03 2.25~2.35 2.25~2.35 2.40~2.50 2.25~2.95 2.45~2.95
Thermal Properties
Max. Using Temperature (°C)
In Air
In Inert In Vacuum		 900
2100
1900		 900
2100
1900		 900
2100
1900		 1000
1750
1750		 1000
1700
1700		 1000
1700
1700		 1000
1800
1800		 1000
1800
1800
Thermal Expansion
(RT·1000 °C ) (10-6/K)		 1.5 1.5 1.5 2 2 2.8 3.5 2.8
Thermal Conductivity (W/mk) 15 35 35 30 30 40 30 85
Electrical and Mechanical Properties
Electrical Resistiity (Ω/cm) >1014 >1014 >1014 >1013 >1013 >1012 >1012 >1013
Bending Strength (MPa) 28 30 30 65 65 80 90 90
Compressive Strength(MPa) 50 55 55 145 145 175 220 220
Typical Applications high-temperature
Vacuum		 High-Temperature
Vacuum		 High-Temperature
Vacuum		 Powder
Metallurgy		 Powder
Metallurgy		 Powder
Metallurgy		 Metal Casting Powder
Metallurgy
lnlustratior for High-Temperature Furnace ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
Crucibles for Metal Evaporation ✓ ✓ ✓ 　 　 　 　 ✓
Parts for Melting Metals or Glass ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
Casting Mold for Metals or Alloys 　 ✓ ✓ 　 ✓ 　 　 　
Support Parts for High-Temperature 　 ✓ ✓ 　 　 　 　 ✓
Pipes or Nozzles for Liquid Metal Handling 　 ✓ ✓ ✓ ✓ ✓ ✓ ✓
Crucibles for Ceramic Sinter ✓ ✓ ✓ 　 ✓ 　 　 ✓
