High Strength Pressureless Sintered SiC Roller For Roller Hearth Kilns Customizable 1650℃ Heat Resistant

I'm Online Chat Now

High Strength Pressureless Sintered SiC Roller For Roller Hearth Kilns Customizable 1650℃ Heat Resistant

High Strength Pressureless Sintered SiC Roller For Roller Hearth Kilns Customizable 1650℃ Heat Resistant
High Strength Pressureless Sintered SiC Roller For Roller Hearth Kilns Customizable 1650℃ Heat Resistant High Strength Pressureless Sintered SiC Roller For Roller Hearth Kilns Customizable 1650℃ Heat Resistant High Strength Pressureless Sintered SiC Roller For Roller Hearth Kilns Customizable 1650℃ Heat Resistant High Strength Pressureless Sintered SiC Roller For Roller Hearth Kilns Customizable 1650℃ Heat Resistant

Large Image :  High Strength Pressureless Sintered SiC Roller For Roller Hearth Kilns Customizable 1650℃ Heat Resistant

Product Details:
Place of Origin: China
Brand Name: ZG
Certification: CE
Model Number: MS
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: 10USD/PC
Packaging Details: Strong wooden box for Global shipping
Delivery Time: 7 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 PCS

High Strength Pressureless Sintered SiC Roller For Roller Hearth Kilns Customizable 1650℃ Heat Resistant

Description
Highlight:

Customizable Pressureless Sintered SiC Roller

,

Strength Pressureless Sintered SiC Roller

High-Strength Pressureless Sintered SiC Roller for Roller Hearth Kilns - Customizable, 1650℃ Heat Resistant

High Strength Pressureless Sintered SiC Roller For Roller Hearth Kilns Customizable 1650℃ Heat Resistant 0



Description:

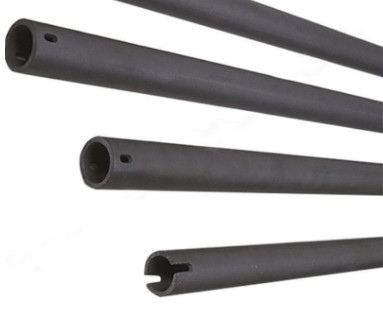

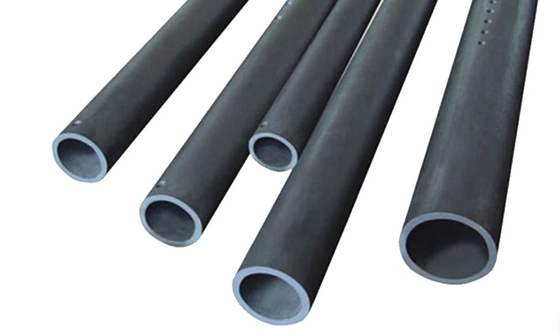

This product is a high-performance silicon carbide roller rod produced with advanced pressureless sintering technology. Utilizing high-purity silicon carbide as the primary material, it delivers outstanding strength, high-temperature resistance, corrosion resistance, and superior thermal shock performance. Specifically designed for high-temperature industrial applications such as roller hearth kilns, it maintains stable operation in oxidizing atmospheres at temperatures up to 1650°C, meeting the most demanding industrial requirements. Customization and end processing services are available to meet specific customer needs.



Typical application:



1.Conveying rollers in high-temperature roller kilns.

2.Application industries: daily porcelain, lithium battery raw material production, sanitary porcelain, magnetic materials and other roller kiln high-temperature firing belts.



Feature:



1. Exceptional Wear Resistance

2. Excellent Oxidation Resistance

3. Outstanding Corrosion Resistance

4. Superior High-Temperature Tolerance



The physical properties of pressureless sintered silicon carbide ceramics products:




Physical properties Unit SSiC
Composition:SiC Vol% ≥98
Density 20 ℃ g/cm3 ≥3.06
Open Porosity Vol% ≈0
Hardness Rockwell Hardness 45N R45N 93
Vickers Hardness HV1 kg/mm2 2350
Flexural Strength 20°C MPa 320-400
1300°C MPa 300-400
Coficient of Thermal Expansion 10-6K-1 4.0
hermal Conductivity 20°C Wm-1K-1 196
1200°C Wm-1K-1 60
Modulus of Elasticity @ RT GPa 410
Thermal shock resistance >350
Max. Service Temp (air) 1650




Available product sizes:



OD ± X mm ID ± X mm Tolerance X mm Max. Length ± 2 mm
16 12 0.3 3000
19 11 0.5 3000
25 20 0.5 3000
34 24 0.8 3000
35.5 25.5 0.8 3000
38 26 0.8 3000
40 20 0.8 4000
45 25 0.8 4000
45 20 0.8 4000
50 34.8 0.8 4000
52 36 0.8 4000
52 38 0.8 4000
57 41 0.8 4000
60 45 0.8 4000





Packaging & Shipping:

High Strength Pressureless Sintered SiC Roller For Roller Hearth Kilns Customizable 1650℃ Heat Resistant 1

High Strength Pressureless Sintered SiC Roller For Roller Hearth Kilns Customizable 1650℃ Heat Resistant 2

High Strength Pressureless Sintered SiC Roller For Roller Hearth Kilns Customizable 1650℃ Heat Resistant 3
