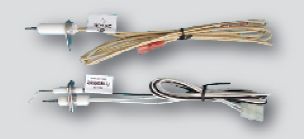

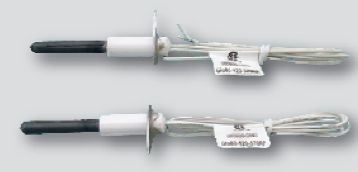

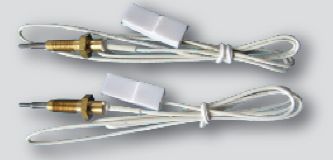

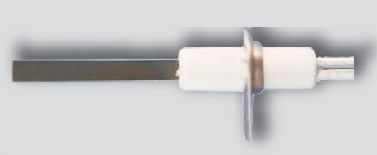

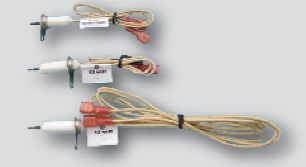

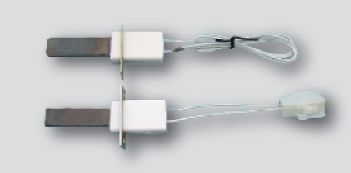

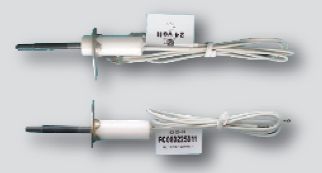

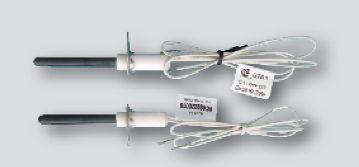

Gas Ignition And Safety Protection System

Gas Ignition And Safety Protection System

Basic Types and Parameters

Power Type: AC, DCVoltage: 6V, 12V, 24V, 80V, 98V, 120V, 220V (customizable based on user requirements)Rated Power: 10W, 20W, 50W, 65W, 160W, 280W, 400W, etc. (customizable based on user requirements)Stable Operating Temperature: above 1100°CMain Types of Igniters: NTP-12 series, NTP-24 series, NTP-120 series, NTP-220 series

Scope of Application

Suitable for various equipment requiring automatic ignition, including: gas stoves/water heaters/dryers/ovens/furnaces/incubators/heating systems/non-electric air conditioners/baking ovens/household and commercial boilers/infrared radiation sources and other gas appliances, as well as charcoal grills and heaters.

Structural Features

Power Leads: Can be designed according to customer installation and wiring requirements, either as a single-lead connection (with metal grounded casing) or double-lead type (casing usually made of aluminum oxide insulating ceramic).

Base: Ceramic mounting base for low-power igniters can use 95% alumina ceramic components. For high-power igniters, usually choose better thermal shock resistant Dongqing stone ceramic components.

Leads/Wires: Made of high-temperature resistant wires. Commonly use 200°C high-temperature wire (FEP), 250°C high-temperature wire (PFA), 450°C high-temperature wire (mica glass fiber). Other specifications can also be customized based on user requirements.

Mounting Flange: Generally made of stainless steel or other carbon steel materials.
