Custom Metalized Alumina Ceramics Parts for High Vacuum High Voltage and High Pressure Applications

Custom Metalized Alumina Ceramics Parts for High Vacuum High Voltage and High Pressure Applications
Custom Metalized Alumina Ceramics Parts for High Vacuum High Voltage and High Pressure Applications Custom Metalized Alumina Ceramics Parts for High Vacuum High Voltage and High Pressure Applications Custom Metalized Alumina Ceramics Parts for High Vacuum High Voltage and High Pressure Applications Custom Metalized Alumina Ceramics Parts for High Vacuum High Voltage and High Pressure Applications

Large Image :  Custom Metalized Alumina Ceramics Parts for High Vacuum High Voltage and High Pressure Applications

Product Details:
Place of Origin: China
Brand Name: ZG
Certification: CE
Model Number: MS
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: 10USD/PC
Packaging Details: Strong wooden box for Global shipping
Delivery Time: 5-8 working days
Payment Terms: D/A,L/C,D/P,T/T,Western Union,MoneyGram
Supply Ability: 1000PCS
Contact Now

Custom Metalized Alumina Ceramics Parts for High Vacuum High Voltage and High Pressure Applications

Description
Highlight:

High Vacuum Metalized Alumina Ceramics

,

High Voltage Metallized Ceramic Parts

,

High Pressure Alumina Ceramic Components

Metalized Alumina Ceramics Parts
ZG supplies custom Metalized Alumina Ceramics designed for high vacuum, high voltage, and high pressure applications. These metallized ceramics are essential components for power grid tubes, vacuum interrupters, RF windows, metallized rings, and various insulators and sensors.
Material Properties
Alumina is among the most widely used engineering ceramic materials, providing exceptional hardness, wear resistance, and superior electrical insulation properties. Our high-purity alumina ceramics (94-96% Al₂O₃) serve as the base material, with alternative ceramic materials available upon request.
Manufacturing Process
Our standard metalized alumina ceramics utilize molybdenum-based paints followed by nickel plating. A specialized coating containing molybdenum and manganese particles mixed with glass additives and volatile carriers is applied to the ceramic surface through hand-painting, spraying, or robotic application methods.
After air drying, the coating undergoes firing in a wet hydrogen environment at 1450°-1600°C, resulting in a "glassy" metallic coating measuring 300-500 micro-inches (7.6-12.7 microns) thick. This process ensures exceptional bond strength between the metallized layer and ceramic base.
The fired coating is then plated with a 0.001-0.003 inch (25.4-76.2 microns) nickel layer. The nickel plating undergoes sinter-firing at 850-950°C in a dry hydrogen atmosphere, creating a finished metallic surface ready for brazing with standard braze filler metals.
Advantages of Ceramics
  • Low dielectric loss with optimal dielectric constant
  • High thermal conductivity for efficient heat dissipation
  • Compatible thermal expansion coefficients between ceramics and metals
  • Exceptional bonding strength between metal layer and ceramic substrate
  • High operating temperature capability, withstanding extreme temperature cycles and normal operation at 500-600°C
  • Superior electrical insulation properties with high breakdown voltage resistance
Technical Specifications
Tensile Strength, Kovar Cup Method > 20,000 psi, avg. (138N/mm²)
Helium Leak Rate < 10⁻⁹ cc/sec
Thermal Shock Resistance (room temperature to 850°C) Will not burst or leak after five operations
Product Gallery

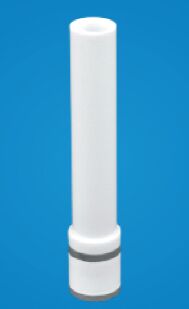

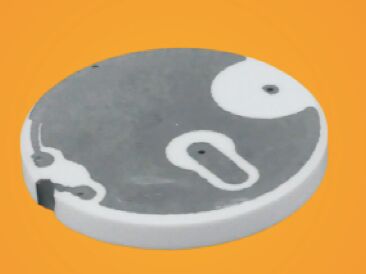

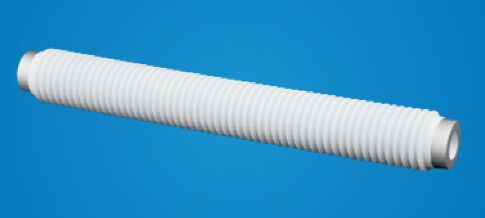

Custom Metalized Alumina Ceramics Parts for High Vacuum High Voltage and High Pressure Applications 0 Custom Metalized Alumina Ceramics Parts for High Vacuum High Voltage and High Pressure Applications 1 Custom Metalized Alumina Ceramics Parts for High Vacuum High Voltage and High Pressure Applications 2 Custom Metalized Alumina Ceramics Parts for High Vacuum High Voltage and High Pressure Applications 3
