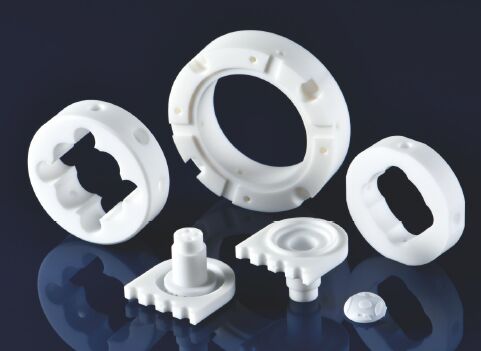

Macor Machinable Ceramic with 0 Porosity 0 Outgassing and Low Thermal Conductivity for Technical Applications

Macor Machinable Ceramic with 0 Porosity 0 Outgassing and Low Thermal Conductivity for Technical Applications
Macor Machinable Ceramic with 0 Porosity 0 Outgassing and Low Thermal Conductivity for Technical Applications Macor Machinable Ceramic with 0 Porosity 0 Outgassing and Low Thermal Conductivity for Technical Applications Macor Machinable Ceramic with 0 Porosity 0 Outgassing and Low Thermal Conductivity for Technical Applications Macor Machinable Ceramic with 0 Porosity 0 Outgassing and Low Thermal Conductivity for Technical Applications

Large Image :  Macor Machinable Ceramic with 0 Porosity 0 Outgassing and Low Thermal Conductivity for Technical Applications

Product Details:
Place of Origin: China
Brand Name: ZG
Certification: CE
Model Number: MS
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: 10USD/PC
Packaging Details: Strong wooden box for Global shipping
Delivery Time: 5-8 working days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 1000PCS
Contact Now

Macor Machinable Ceramic with 0 Porosity 0 Outgassing and Low Thermal Conductivity for Technical Applications

Description
Highlight:

0 porosity Macor Machinable Ceramic

,

0 outgassing Machinable Ceramic

,

low thermal conductivity Technical Ceramic

Macor Machinable Ceramic

Machinable ceramics are specialized materials that can be directly processed using traditional CNC metal cutting tools. ZG has conducted extensive research in this field, with particular expertise in Macor and Shapal Hi-M materials.

Key Material Features
Macor Properties
  • Zero porosity
  • Zero outgassing
  • Low thermal conductivity
  • Excellent electrical insulation
Shapal Hi-M Properties
  • Zero porosity
  • Zero outgassing
  • High thermal conductivity
  • Superior electrical insulation
Material Properties Comparison
Property Macor Shapal Hi-M Soft
Color White Grey
Density (g/cm³) 2.52 2.88
Porosity 0 0
Compressive Strength 345 MPa 100 kg/mm²
Flexural Strength (MPa) 94 300
Fracture Toughness (MPa·m¹/²) 1.53 /
Hardness Brinell Hardness 250 Vickers Hardness 380
Young's Modulus 66.9 MPa 1.8×10⁴ kg/mm²
Poisson's Ratio 0.29 0.31
Thermal Performance Characteristics
Thermal Property Macor Shapal Hi-M
Thermal Conductivity @25°C 1.46 W/m·K 92
Thermal Expansion @25-300°C 90×10⁻⁷/°C 4.8×10⁻⁶/°C
Thermal Expansion @25-700°C 123×10⁻⁷/°C 4.9×10⁻⁶/°C
Thermal Shock / 400°C
Maximum Temperature 800°C (Continuous)
1000°C (No-load)		 1000°C (Air)
1900°C (Non-oxidizing)
Macor Machinable Ceramic with 0 Porosity 0 Outgassing and Low Thermal Conductivity for Technical Applications 0
