Boran Nitride (BN) (Technical) Parts

Boran Nitride (BN) (Technical) Parts
Boran Nitride (BN) (Technical) Parts Boran Nitride (BN) (Technical) Parts Boran Nitride (BN) (Technical) Parts

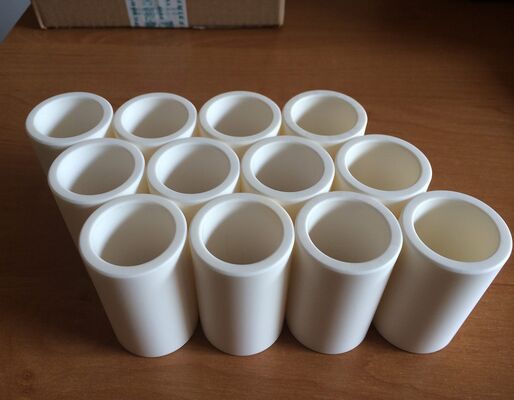

Large Image :  Boran Nitride (BN) (Technical) Parts

Product Details:
Place of Origin: China
Brand Name: ZG
Certification: CE
Model Number: MS
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: 10USD/PC
Packaging Details: Strong wooden box for Global shipping
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 PCS
Contact Now

Boran Nitride (BN) (Technical) Parts

Description
Highlight:

Boron Nitride ceramic parts

,

Technical Boron Nitride components

,

BN ceramic industrial parts

Boran nitride (BN) (technical)



Boron nitride is a ceramic material that is characterized by relatively high thermal conductivity (can reach up to 90 W / m * K) and resistance to high temperatures. Unlike other ceramic materials, the operating temperature can reach up to 2100 C in a vacuum and an inert environment and 1000 C in an oxygen environment. The material also belongs to the group of refractory materials due to the described properties.





Specifications

Properties

Conditions

Unit

Type
Colour     белый белый белый белый белый белый белый
Bulck density   г/см3 ≥ 2,20 ≥ 2,25 ≥ 2,40 ≥ 2,80 ≥ 2,80 ≥ 2,30 ≥ 2,63
Water absorption — %           0 0

Flexural strength   МПа 65 65 80 90 90 ≥ 600 ≥ 320
Compressive strength   МПа 145 145 175 220 220 150 ≥ 1000
Modulus of elasticity   ГПа — — — — — 62 55
Poisson 's Ratio     — — — — — 0,2 —
Hardness   кг/мм2 — — — — — 1100 1224
Fracture toughness   МПа∙м1/2 — — — — — 5,4 ≥ 482

Coefficient of thermal expansion 25-1000 °C 10-6 /°C 2,0 2,0 2,8 3,5 2,8 1,9 5,2
  20-800 °C 10-6 /°C           1,9 5,2
  40-800 °C 10-6 /°C
Thermal conductivity — Вт/м∙K 35 35 45 30 85 35 90
  25 °C Вт/м∙K           35 90
  100 °C Вт/м∙K           35 90
Maximum operating temperature   °C           1000 900
  в O2 °C 1000 1000 1000 1000 1000 1000 900
  в вакууме °C 1750 1800 1800 1800 1800 — —
  в инертных газов °C 1750 1800 1800 1800 1800 — —
Dielectric constant 1 МГц —           6,8 7,3
Volumetric resistance 25 °C Ом∙см ≥ 1013 ≥ 1013 ≥ 1012 ≥ 1012 ≥ 1013 ≥ 1013 ≥ 1014
  300 °C Ом∙см
  500 °C Ом∙см

Thick film     нет
Thin film     да

Application area

  • turbine parts (blades, etc.);
  • furnace parts;
  • snap-in;
  • enclosures;
  • any products operating at elevated temperatures (more than 1000 C).

Tag:

BN997 Boron Nitride Machinable Ceramic,

boron nitride ceramic tube Thermocouples,

Boron Nitride Machinable Ceramic Tubes
