Product Details:
|
| Shape: | Round, Square, Rectangular Or Other Customized Shapes | Application: | Metallurgy And Casting Metal Liquid Filtration And Purification |
|---|---|---|---|
| Density: | ≤0.5g/cm3 | Porosity: | 80-90% |
| Highlight: | Foundry Alumina Ceramic Foam Filter,Alumina Ceramic Foam Filter 90% Porosity,90% Porosity foam ceramic filter |
||

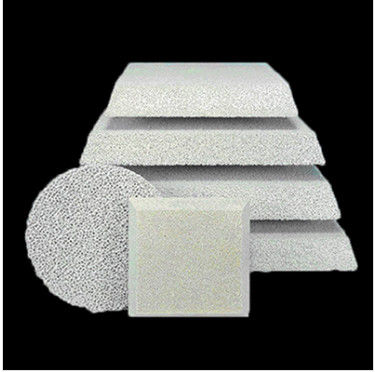

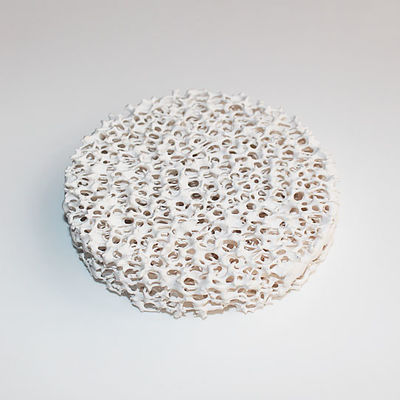

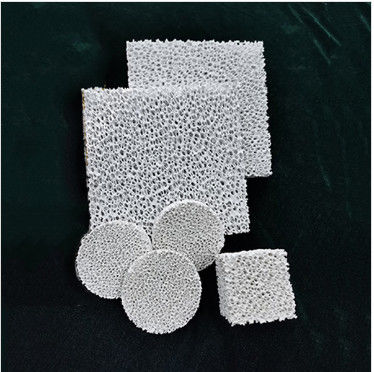

Porous aluminum oxide foundry foam ceramic filter
Aluminum oxide foundry foam ceramic filter for filtration of cast iron and non-ferrous alloys
To obtain good quality metal castings the minimum content of foreign impurities in the metal is important.
Ceramic filters solve two main problems:
| Chemical Composition of 17%AL2O3 Inert Alumina Ceramic Ball - Catalyst Support Media | |
|---|---|
| Working | ≤1200°C |
| Porosity | 80~90% |
| Compression Strength (Room Temperature) | ≥1.0Mpa |
| Volume Density | ≤0.5g/cm3 |
| Thermal Shock Resistance | 800°C---room temperature 5 times |
| Application | non-ferrous and alumina alloys, high temperature gasfilter, chemical fillings and catalysis carrier etc. |
| Chemical Composition of 17%AL2O3 Inert Alumina Ceramic Ball - Catalyst Support Media | |||
|---|---|---|---|
| Al2O3 | 80~82% | SiC | --- |
| SiO2 | 5~6% | ZrO2 | --- |
| Others | 12~15% | ||
| Pouring Rate and Filtration Capacity | |||
|---|---|---|---|
| Dimensions(mm) | Dimensions(inch) | Pouring Rate(kg/s) | Filtration Capacity(ton) |
| 178x178x50 | 7x7x2 | 0.2-0.6 | 5 |
| 228x228x50 | 9x9x2 | 0.3-1.0 | 10 |
| 305x305x50 | 12x12x2 | 0.8-2.5 | 15 |
| 381x381x50 | 15x15x2 | 2.2-4.5 | 25 |
| 430x430x50 | 17x17x2 | 3.0-5.5 | 35 |
| 508x508x50 | 20x20x2 | 4.0-6.5 | 45 |
| 585x585x50 | 23x23x2 | 5.0-8.6 | 60 |
Non-metallic inclusions in molded products reduce strength, ductility, resistance to creep and corrosion, fatigue strength and wear resistance. Large inclusions increase the risk of destruction. They can influence the fluidity and casting properties of the melt. Inclusions can get into the melt in the melting pot as a result of the erosion of refractory materials or the ingress of slag particles. Sometimes oxidation, sulfidation or other reactions can lead to the formation of foreign particles in the melt.
Materials:
| Filter type | Ceramic Foam Filters | Extruded Filter | ||
| Filter Materials | Alumina | SiC | Zirconia | Cordierite-Mullite |
| Applications | Aluminum and aluminum alloy |
Iron, Iron alloy, copper, bronze and brass |
Steel, Stainless steel and alloy |
Grey iron, ductile iron, aluminum alloy and other non-ferrous alloys |
| Volume Density (g/cm3) | 0.4 - 0.5 | 0.3 - 0.5 | 0.7 - 1.0 | 0.8 - 1.2 |
| Hole Density (ppi) | 10 - 40 | 8-30 | 10-30 | 100 – 300 |
| Open Porosity (%) | 80 - 90 | 80 - 90 | 80 - 90 | 35 - 60 |
| Maximum Working Temperature (°C) |
1100 | 1500 | 1700 | > 1500 |
| Compressive Strength (MPa) | 0.8 | 1 | 1.5 | > 2 |
| Bending Strength (MPa) | 0.6 | 2.5 | 1 | |
| Thermal Shock Resistance (times from1100°C to room temperature) |
6 | 6 | 3 | 5 |
