Product Details:
Place of Origin: CHINA
Brand Name: ZG
Certification: CE
Model Number: MS
Payment & Shipping Terms:
Minimum Order Quantity: 10000 pieces
Price: Negotiation
Packaging Details: Strong wooden box for global shipping
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 pieces per month

reaction-bonded silicon carbide radiant tube inner tube, desulfurizing nozzle, beam, roller rod, thermocouple protection

Description
Usage: Lining Type: Ceramic Parts, Ceramic Rings, Ceramic Rollers, Ceramic Tubes, Ceramic Balls
Material: Silicon Carbide, Aluminum Oxide, Silicon Nitride, Quartz Ceramics, Refractory Ceramics, Refractory Composite Materials, Electrotechnical Ceramics. Color: Black
Product Name: Bearings For Pumps And Compressors; Rings Of Mechanical Seals; Ceramic Plungers; Elements Of Valves And Stop Valves; Lining For Protection From Wear And Corrosion; Sorting Wheels Of Various Grinding Machinery; Lining For Cyclones And Calciners For Cement P Size: Customized
Density: ≥3.1g/cm3 Feature: Excellent Shape Stability, Thermal Conductivity, Thermal Shock Resistance
Highlight:

270MPa Silicon Carbide Ceramics

,

410MPa Silicon Carbide Ceramics

,

Silicon Carbide Furniture And Lining



Silicon Carbide Furniture And Lining For Furnaces



Silicon Carbide Furniture And Lining For Furnaces, high reliability and economy in operation

Our company is engaged in R&D, production and sale of high-performance silicon carbide products, including reaction-bonded silicon carbide radiant tube inner tube, desulfurizing nozzle, beam, roller rod, thermocouple protection tube, cold-air tube, case, crucible, blast nozzle, axle sleeve, sealing element, and various high-temperature resistant, wear-resistant, corrosion-resistant silicon carbide irregular parts.



The reaction-bonded silicon carbide ceramic products, with high strength, high rigidity, wear resistance, high-temperature resistance, corrosion resistance, antioxidation, thermal-shock resistance and good thermal conductivity, quick-cooling/quick-heating resistance, and high-temperature creep resistance, are widely applied to military industry, aerospace and aviation, nuclear power, liquid crystal, metallurgy, chemicals, machinery, automobile, paper-making, medicine, etc.. Our products are sold to more than 40 countries and regions, such as USA, Germany, Japan, Korea, UAE, South Africa, Taiwan, etc.



Technical ceramics due to its exceptional properties is widely used for the production of refractory products, including lining and fittings of various shapes for furnace equipment:

  • corrosion resistance;
  • resistance to heat shock;
  • stability of shape and strength preservation at the maximum operating temperature;
  • low weight;
  • high reliability and economy in operation.



Basic properties of the material

Properties Brand of material
  SCR-Si1 SCR-Si2-HP SCR-SSCR-S
Composition SiC+Si SiC+Si+C SiC
Density, g/sm3 3,05-3,07 3,00-3,05 3,10-3,15
Isolated porosity, % 0 0 2
Hardness (at SiC), GPa 25-30 25-30 25-30
Flexural strength, MPa 320-350 270-300 380-410
Compressive strength, MPa 3300-3500 2800-3100 3000-3500
Thermal conductivity at 20-100°С, W/mK 110-120 100-130 100-110
Coefficient of linear thermal
expansion at 20-1000°С, 10-6 К-1
3,4-4,9 3,5-5,0 3,0-4,6
Maximum operating temperature
Oxidative environment
A reducing or inert environment
1350
1350
1350
1350
1350
1350



Main products for furnace equipment are:

  • lining of various shapes;

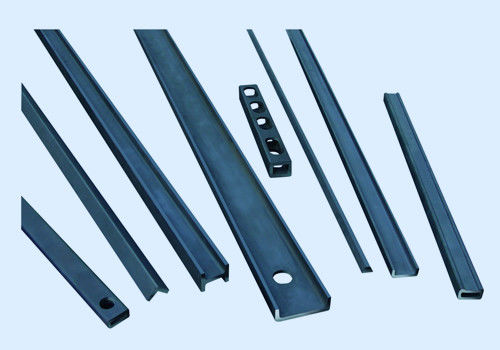

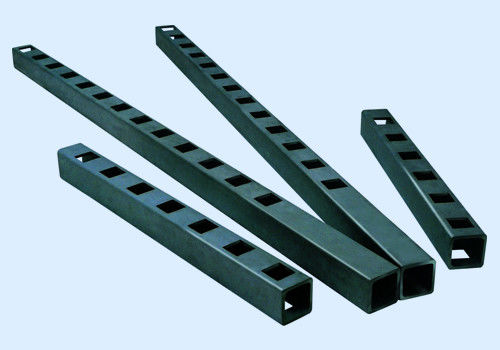

  • beams, profiles, guides, heater holders, insulating sleeves;
  • transportation systems, rollers;
  • burners;

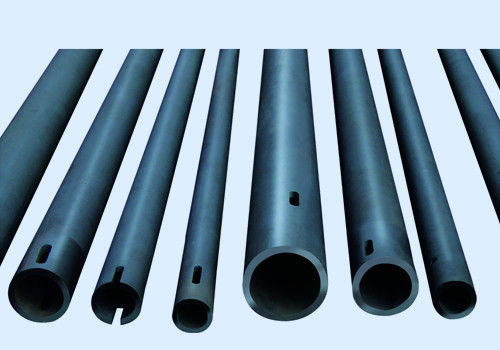

  • cooling tubes;
  • beads, tubes, thermocouple covers.
