Product Details:
|
| Application: | Melting Crucibles, Stoppers, Tundishes, Sliding Plates, And Other Peripheral Components As Well As In Carbon Brushes For Rolling And Winding Machines And A Variety Of Other Processes | Shape: | Plates, Strips, Pipes, Rods, Wire, And Contoured Shapes |
|---|---|---|---|
| Product Type: | Graphite Dies | Bulk Density: | 1.88g/cm3 |
| High Light: | High Thermal Resistance Graphite Dies,High Thermal Resistance Graphite Bearings,Graphite Bearings High Temperature |
||

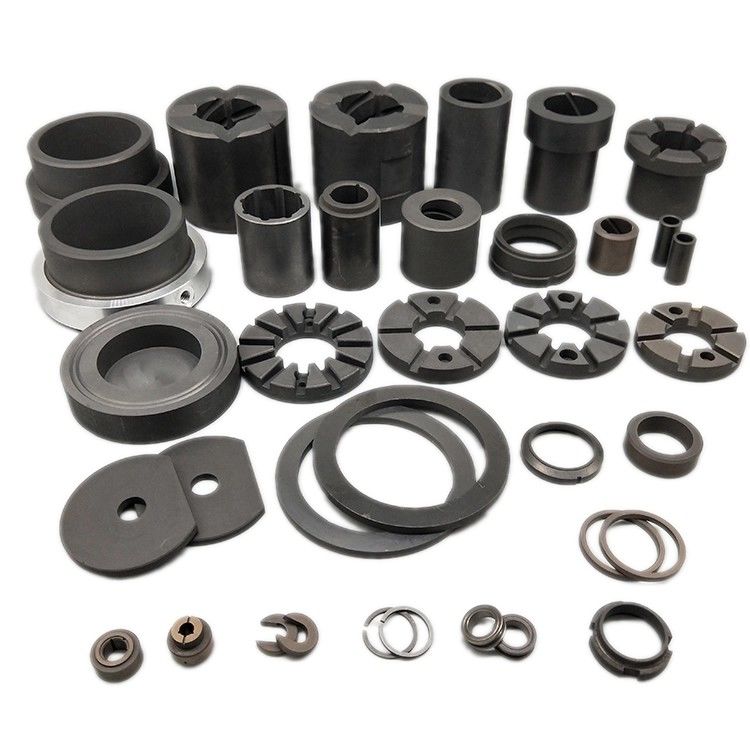

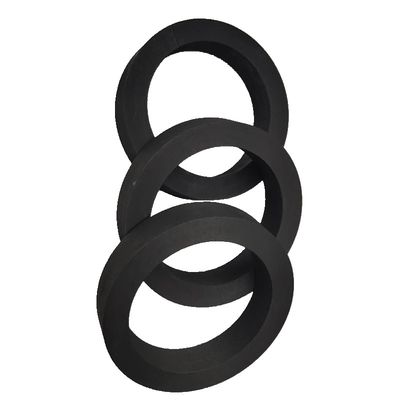

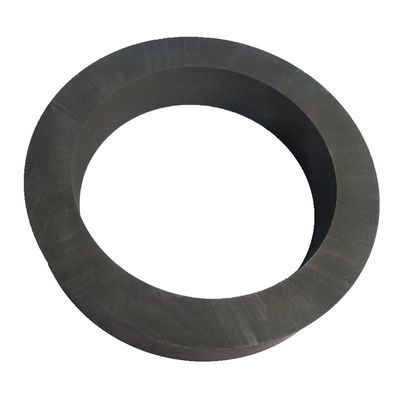

High Temperature Bearing
High Temperature Bearing,Reliable, High-Performance And Efficient Components
These bearings for dry-lubricated flap valves can be used in the exhaust gas system, for example for exhaust gas recirculation, the turbo bypass or in mufflers. It's characterized by high thermal resistance and the option to be used in conjunction with various different counter-members.
| Type | Max Grain size mm | Bulk Density g/cc | Specific resistivity μΩ.m | Flexural Strength Mpa | Compressive Strength Mpa | C.T.E(100-600℃) x10-6/℃ |
Ash % |
| ZGB-I | 0.8 | ≥1.68 | ≤9.5 | ≥13.0 | ≥28.0 | ≤2.8 | ≤0.3 |
| ZGB-II | 0.58 | ≥1.72 | ≤8.5 | ≥15.0 | ≥32.0 | ≤2.4 | ≤0.3 |
| ZGL-0 | 2 | ≥1.58 | ≤11.5 | ≥7.0 | ≥18.0 | ≤3.0 | ≤0.3 |
| ZGL-I | 2 | ≥1.68 | ≤9.0 | ≥13.0 | ≥28.0 | ≤2.7 | ≤0.3 |
| ZGDJY-C1 | 22 | ≥1.78 | ≤10 | ≥38.0 | ≥65.0 | ≤3.9 | ≤0.07(Normal) ≤0.005(Purified) |
| ZGDJY-Y3 | 22 | ≥1.86 | ≤13.0 | ≥40.0 | ≥80.0 | ≤3.9 | ≤0.07(Normal) ≤0.005(Purified) |
| ZGDJY-W5 | 22 | ≥1.85 | ≤12.0 | ≥45.0 | ≥90.0 | ≤4.3 | ≤0.07(Normal) ≤0.005(Purified) |
| MY-III | 45 | ≥1.83 | ≤10.0 | ≥38.0 | ≥80.0 | ≤3.5 | ≤0.1 |
| MY-IV | 45 | ≥1.88 | ≤9.0 | ≥42.0 | ≥90.0 | ≤3.8 | ≤0.07 |
| If you can not find the material which you need, please kindly contact us ,we will choose apporpiate materialaccording to customer's application (working condition)based on rich experiences in graphite application | |||||||
You benefit from these advantages:
Features:
Due to its ability to resist wetting by molten metals, graphite is used as a mold material for strip dies, tubular dies, and other molds used in continuous casting processes for copper and copper alloys (brass, bronze, and nickel silver), aluminum alloys, cast iron, precious metals, and a variety of other metals.
Graphite can be used with different continuous casting methods (horizontal/vertical) and can be produced in a variety of ingot shapes (including plates, strips, pipes, rods, wire, and contoured shapes).
With a wide range of grades available, we can select the optimal grade for a variety of cast metals and alloys.
We manufactures products from structural brands of graphite, impregnated graphite, antifriction graphite
Graphite has unique properties:
Due to its unique properties, graphite products are used in many industries:
