Product Details:
|
| Application: | Melting Crucibles, Stoppers, Tundishes, Sliding Plates, And Other Peripheral Components As Well As In Carbon Brushes For Rolling And Winding Machines And A Variety Of Other Processes | Shape: | Plates, Strips, Pipes, Rods, Wire, And Contoured Shapes |
|---|---|---|---|
| Product Type: | Graphite Dies | Bulk Density: | 1.88g/cm3 |
| High Light: | 1.88g/Cm3 Graphite Dies,Graphite Vanes For Vacuum Pumps,1.88g/Cm3 graphite rotor vanes |
||

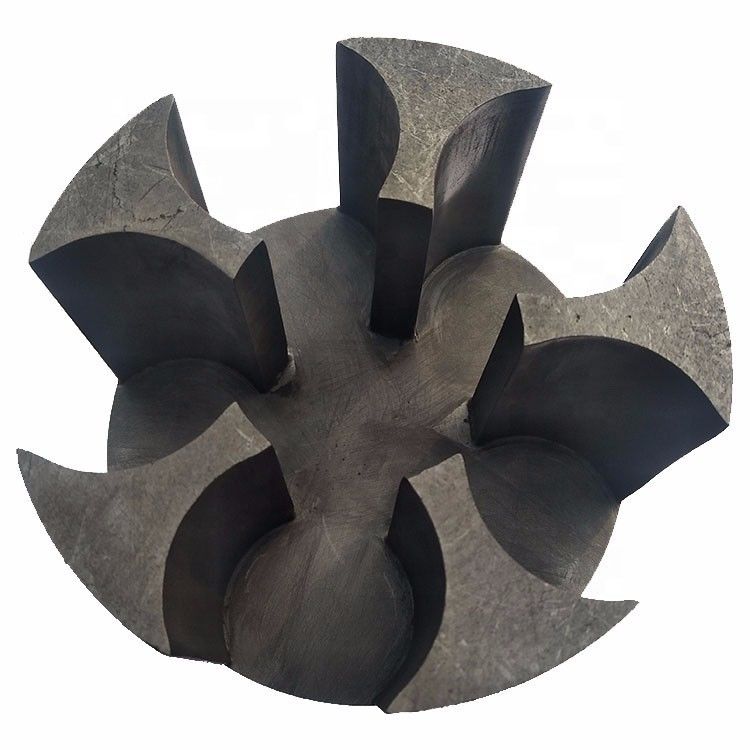

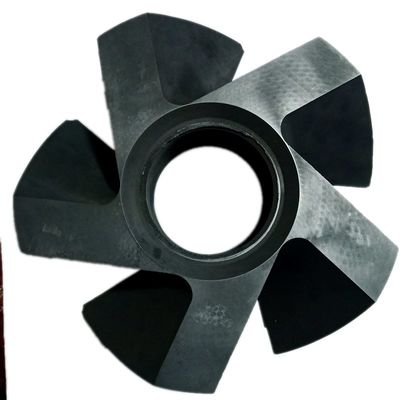

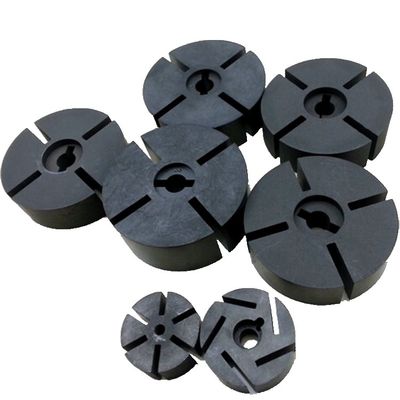

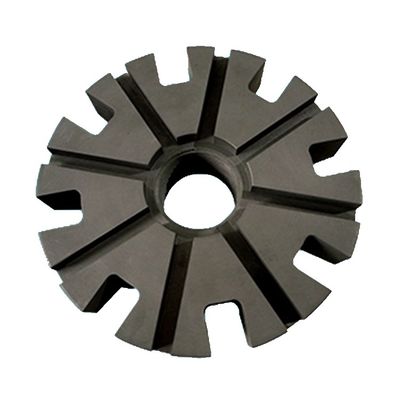

Rotors and Blades for Vacuum Pumps
Rotors and Blades for Vacuum Pumps,Quality for modern safety systems in vehicles Perfectly matched graphite materials
Our graphite vanes were developed for use in dry-running vane pumps. Thanks to their unique material properties, they themselves work extremely reliably under high mechanical loads – maintenance free, self-lubricating and with an increase in efficiency.
Material Technical Specifications:
| Type | Max Grain size mm | Bulk Density g/cc | Specific resistivity μΩ.m | Flexural Strength Mpa | Compressive Strength Mpa | C.T.E(100-600℃) x10-6/℃ |
Ash % |
| ZGB-I | 0.8 | ≥1.68 | ≤9.5 | ≥13.0 | ≥28.0 | ≤2.8 | ≤0.3 |
| ZGB-II | 0.58 | ≥1.72 | ≤8.5 | ≥15.0 | ≥32.0 | ≤2.4 | ≤0.3 |
| ZGL-0 | 2 | ≥1.58 | ≤11.5 | ≥7.0 | ≥18.0 | ≤3.0 | ≤0.3 |
| ZGL-I | 2 | ≥1.68 | ≤9.0 | ≥13.0 | ≥28.0 | ≤2.7 | ≤0.3 |
| ZGDJY-C1 | 22 | ≥1.78 | ≤10 | ≥38.0 | ≥65.0 | ≤3.9 | ≤0.07(Normal) ≤0.005(Purified) |
| ZGDJY-Y3 | 22 | ≥1.86 | ≤13.0 | ≥40.0 | ≥80.0 | ≤3.9 | ≤0.07(Normal) ≤0.005(Purified) |
| ZGDJY-W5 | 22 | ≥1.85 | ≤12.0 | ≥45.0 | ≥90.0 | ≤4.3 | ≤0.07(Normal) ≤0.005(Purified) |
| MY-III | 45 | ≥1.83 | ≤10.0 | ≥38.0 | ≥80.0 | ≤3.5 | ≤0.1 |
| MY-IV | 45 | ≥1.88 | ≤9.0 | ≥42.0 | ≥90.0 | ≤3.8 | ≤0.07 |
|
If you can not find the material which you need, please kindly contact us ,we will choose apporpiate materialaccording to customer's application (working condition)based on rich experiences in graphite application |
|||||||
You benefit from these advantages:
Features:
Due to its ability to resist wetting by molten metals, graphite is used as a mold material for strip dies, tubular dies, and other molds used in continuous casting processes for copper and copper alloys (brass, bronze, and nickel silver), aluminum alloys, cast iron, precious metals, and a variety of other metals.
Graphite can be used with different continuous casting methods (horizontal/vertical) and can be produced in a variety of ingot shapes (including plates, strips, pipes, rods, wire, and contoured shapes).
With a wide range of grades available, we can select the optimal grade for a variety of cast metals and alloys.
We manufactures products from structural brands of graphite, impregnated graphite, antifriction graphite
Graphite has unique properties:
Due to its unique properties, graphite products are used in many industries:
