Product Details:
Place of Origin: CHINA
Brand Name: ZG
Certification: CE
Model Number: MS
Payment & Shipping Terms:
Minimum Order Quantity: 1KG
Price: Negotiate
Packaging Details: 25kg pp bags on pallets
Delivery Time: 3 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 MT per month

Pink Aluminium Oxide, POLISHING LAPPING METAL PREPARATION ANTI-SLIP LAMINATES COATINGS FILTRATION MILLING

Description
Shape: Girt, Powder Application: Blasting Media, Coated Abrasives, Bonded Abrasives
Density: 1.97 Color: Pink
Mesh Size: F12-F220 Packing: 1MT Jumbo Bag
Highlight:

Powdered Pink Aluminum Oxide F12

,

Precision Grinding Pink Aluminum Oxide

,

F22 Pink Aluminum Oxide powder



Pink Aluminium Oxide

-First Grade for sandblasting, coated abrasives, bonded abrasives

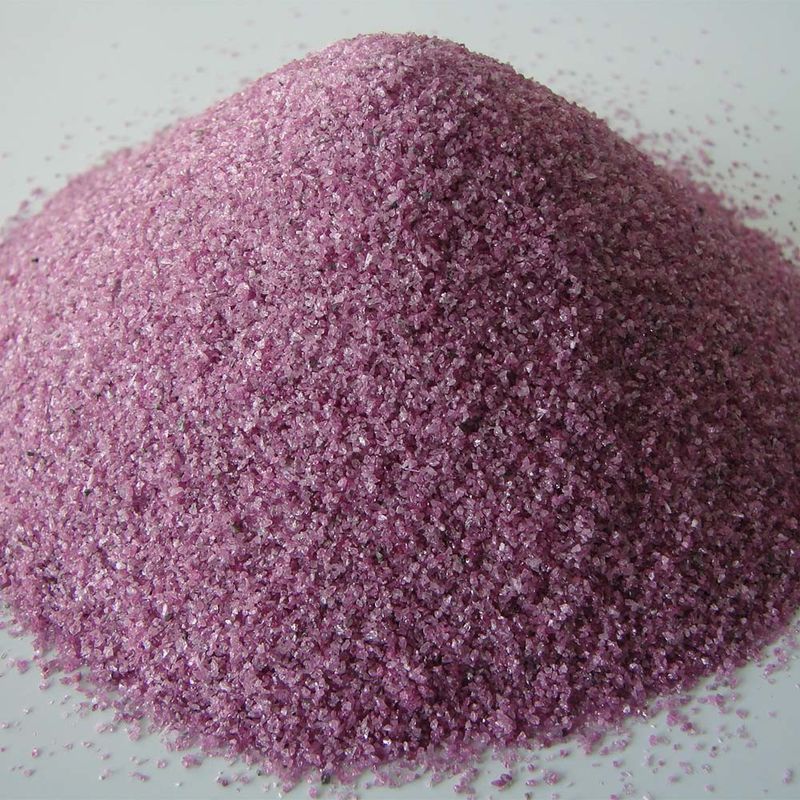

Pink Aluminium Oxide abrasive is electrically fused from alumina and other materials. The pink colored abrasives has hardness similar and toughness greater than white aluminum oxide. Grinding wheels made of pink aluminum oxide have the features of outstanding durability and producing fine surface finish. Suitable for precision grinding applications with metrology instruments, engine crankshafts, instrument parts, threads and samplers.





Specification:

Chemical composition



Low

Chromium

Medium

Chromium

High

Chromium

Al2O3

%

Cr2O3

%

Na2O

%

Al2O3

%

Cr2O3

%

Na2O

%

Al2O3

%

Cr2O3

%

Na2O

%

F12~F80

≥98.50



0.20

~

0.45

≤ 0.50

≥98.20



>0.45

~

1.00



≤ 0.55

≥97.40



>1.00

~

2.00

≤ 0.55

F90~F150

≥98.50

≤ 0.55

≥98.20

≤ 0.60

≥97.00

≤ 0.60

F180~F220

≥98.90

≤ 0.60

≥97.80

≤ 0.70

≥96.50

≤ 0.70



Physical propert

Basic Minerals

Crystal Size

Ture density

Bulk Desnsity

Knoop Hardness



um

g/cm3

g/cm3

Kg/mm2

a-Al2O3

600-2000

≥3.90

1.40~1.91

2200~2300



Sizes:

Macrogrit Sizes:

FEPA F Sizes: F14 to F240 (in accordance with FEPA 42-1: 2006 and ANSI B74.12 standards)

FEPA P Sizes: P12 to P220 (in accordance with FEPA 43-1: 2006 standard)



Microgrit Sizes:

FEPA F Sizes: F230 to F400 (in accordance with FEPA 42-2: 2006 standard)



FEPA P Sizes: P240 to P1200 (in accordance with FEPA 43-2: 2006 standard)



Applications:

The FEPA F grades are especially suitable for the manufacture of vitrified bonded abrasives for working hardened steels and alloys with tensile strengths of over 50 kg/mm². It is also used in tool grinding, saw and knife-sharpening applications, precision grinding, profile grinding, flute grinding, tooth grinding, dry grinding of blade segments and mounted wheels.

The FEPA P grades are a preferred material for working non-ferrous metals and the alloys (copper, aluminum, zinc, brass, Bronze), but also used for softer materials, such as wood, synthetics and paints.



Packing Available:

1MT big bags;

25kg×40 pp bags into 1MT big bags;

25kg×40 pp bags on one Standard wood pallet or Euro-pallet;

25kg×40 craft paper bags on one Standard wood pallet or Euro-pallet;

Moreover, we could provide packing as customer’s request, including different marks, etc.
