100mm Dia Sic Heating Elements Ceramic Fiber Insulation Panel For Boilers

100mm Dia Sic Heating Elements Ceramic Fiber Insulation Panel For Boilers
100mm Dia Sic Heating Elements Ceramic Fiber Insulation Panel For Boilers 100mm Dia Sic Heating Elements Ceramic Fiber Insulation Panel For Boilers 100mm Dia Sic Heating Elements Ceramic Fiber Insulation Panel For Boilers 100mm Dia Sic Heating Elements Ceramic Fiber Insulation Panel For Boilers 100mm Dia Sic Heating Elements Ceramic Fiber Insulation Panel For Boilers

Large Image :  100mm Dia Sic Heating Elements Ceramic Fiber Insulation Panel For Boilers

Product Details:
Place of Origin: CHINA
Brand Name: ZG
Certification: CE
Model Number: MS
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiation
Packaging Details: Strong wooden box for global shipping
Delivery Time: 7-10 work days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 10000 pieces per month

100mm Dia Sic Heating Elements Ceramic Fiber Insulation Panel For Boilers

Description
Dimension(l*w*h): Customized Diameter: From 10mm-100mm
Operating Temperatures: Up To 1800°C Product: Insulation Panels
Highlight:

100mm Dia Sic Heating Elements

,

Ceramic Fiber Insulation Panel 100mm Dia

,

Boilers Ceramic Fiber Insulation Panel



Insulation Panels for Boilers and Heaters, Soluble Fiber Board

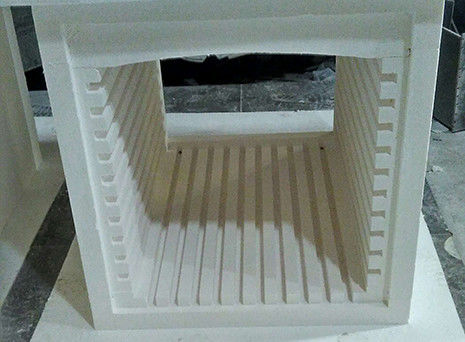

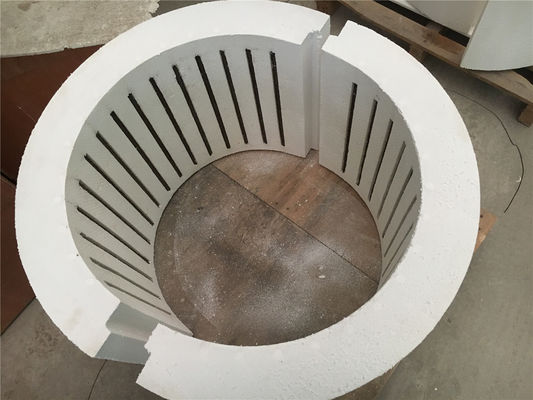

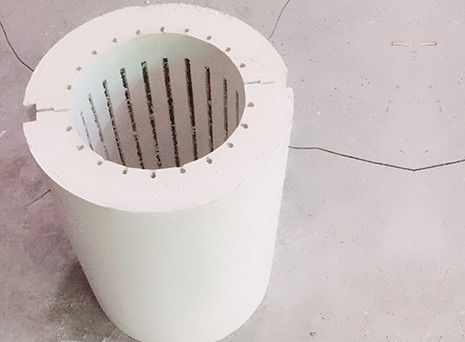

Insulation Panels are designed for insulating boilers, water heaters, heaters or combustion chambers, and any heating units (heating elements) of heat shields or gaskets.

Insulation Panels are made with soluble fiber board or improved ceramic fiber board for increased mechanical strength and reduced impurities. Some other advantages: high classification temperature (2190F, 2300F, 2600F), environmentally/health friendly, custom shapes, precise shapes with ±1 mm tolerance control, thinnest board at 3mm, etc. We have many other related products to offer: 6mm soluble fiber blanket, ceramic fiber paper, and custom shaped insulation products for boilers' and heaters' insulation needs.



Data Sheet and Typical Specifications for Insulation Panel

TECHNICAL ITEMS 1260 CERAMIC FIBER 1430 CERAMIC FIBER 1200 SOLUBLE FIBER
Classification Temperature 1260 °C (2300 °F) 1430 °C (2600 °F) 1200 °C (2192 °F)
Working Temperature Limit 1100 °C (2012 °F) 1350 °C (2462 °F) 1100 °C (2012 °F)
Melting Point 1760 °C (3200 °F) 1760 °C (3200 °F) 1300°C (2372 °F)
Typical Density
kg/m3 280-360 280-360 280-360
lb/ft3 18-22 18-22 18-22
Loss of ignition 1000 °C (1832 °F) 5% 4% 5%
Modulus of Rupture (PSI) 73 73 73

Chemical Composition (%)
Al2O3 43-46 35-40 Trace
SiO2 53-57 52-56 60-66
MgO - - 3-6
CaO - - 27-32
ZrO2 - 12-15 -



All panels can be supplied as non-machined or machined with both faces highly polished and smoothed.
All panel faces can be treated with water repellant and coated with different colors.
These technical data are typical average values based on commonly accepted test methods and are subject to normal production variation.



Excellent Features

  • Heat Insulation Sound Absorption
  • Lightweight
  • Minimal heat loss
  • Increased mechanical strength
  • Reduced impurities
  • 100% premium raw materials
  • ±1 mm tolerance control
  • 86 dimensions and shapes



TYPICAL APPLICATIONS:

  • Gas Boilers Electric
  • Storage Heater
  • Boilers
  • Water Heater
  • Pool & SPA heater
  • Radiant Heater
  • Steam Cleaner
  • Residential Heater
  • Refractory lining for industrial furnaces for walls, roofs, doors, stacks, etc.
  • Combustion chamber liners, boilers, and heaters
  • Back-up insulation for brick and monolithic refractories
  • Transfer of molten aluminum and other non-ferrous metals
  • Expansion joint boards
  • Barrier against flame or heat
  • Hot face layer for high velocity or abrasive furnace atmosphere
