Product Details:
|
| Name: | Silicon Carbide Cylinder | Advantage: | Strong Corrosion, Particle Erosion, High Temperature Conditions Of The Pipeline |
|---|---|---|---|
| Material: | Ultrafine Silicon Carbide Powder | Content: | 99% SIC |
| Chemical: | Excellent Chemical Stability, Can Resist All Kinds Of Acid, Alkali And Organic Solvent Corrosion | Application: | Fine Chemical, Pharmaceutical, Medical, Semiconductor, Lithium Battery Materials, Etc |
| High Light: | Dia 350mm Silicon carbide cylinder,Semiconductor Industries Silicon carbide cylinder,99% SIC ceramic cylinder |
||
Silicon carbide cylinder,Strong corrosion, particle erosion,
high temperature conditions of the pipeline

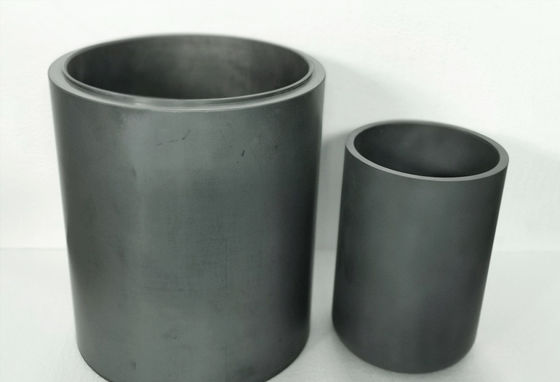

Introduction of Silicon carbide cylinder
silicon carbide cylinder is formed by direct isostatic pressing and sintering without pressure. The inner edge can be manufactured according to the design requirements, and the inner and outer diameters and end faces can be sealed grooves to meet the different design requirements of users.
Typical applications of Silicon carbide cylinder
Strong corrosion, particle erosion, high temperature conditions of the pipeline.
Application industries: fine chemical, pharmaceutical, medical, semiconductor, lithium battery materials, etc
Features and advantages of Silicon carbide cylinder
Silicon carbide cylinder diameter up to 350mm, height up to 2000mm (current equipment capacity).
SiC cylinders are available in sintered blanks with a diameter tolerance of +/-2mm.
The inner and outer diameters and end faces of CORESIC ® SP cylinder can be matched for sealing surface finishing, with machining accuracy up to 0.05mm and surface roughness Ra up to 0.8mm.
Silicon carbide cylinder is manufactured for strict size and surface fluorescence penetrant testing.
Silicon carbide cylinder density is greater than 3.14g/cm3, Vickers hardness up to 23GPa, high wear resistance.
SiC cylinder material is certified by TUV FDA to meet food-grade media delivery requirements.
specifications of Silicon carbide cylinder
Customize according to customer drawings;
Material performance sheet
SiC cylinder
