Product Details:
|
| Advantage: | High Hardness, High Wear Resistance And Long Life | Material: | Ultrafine Silicon Carbide Powder |
|---|---|---|---|
| Content: | 99% SIC | Chemical: | Excellent Chemical Stability, Can Resist All Kinds Of Acid, Alkali And Organic Solvent Corrosion |
| Application: | Fine Chemical, Pharmaceutical, Medical, Semiconductor, Lithium Battery Materials, Etc | Dimension: | Silicon Carbide Seal Rings Are Often Customized To Customer Requirements. |
| Highlight: | 3.15g/Cm3 Density Plunger Rod,23 GPa Vickers Hardness Plunger Rod,Silicon Carbide Plunger Rod |
||

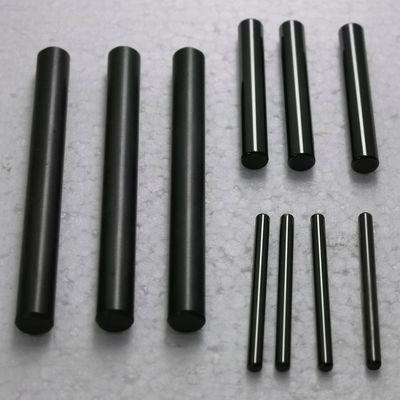

Silicon carbide plunger rod
Silicon Carbide Plunger Rod is formed by dry bag isostatic pressing and sintering without pressure. According to the design requirements for multi-angle drilling, keyway processing, inside and outside diameter and end face for finishing, can be five axis processing, to meet the different design needs of users.
Typical applications
Strong corrosion, particle erosion conditions of the piston pump.
Application industries: fine chemical, pharmaceutical, medical treatment, etc.
Features and advantages
Silicon carbide plunger rods are available for drilling, keyway machining, and finishing of inner and outer diameters and end faces (including curved surfaces).
Silicon Carbide Plunger Rod is available in rough form with machining accuracy of 0.1mm; Finishing products can also be provided, with machining accuracy up to 0.001mm cylindricity and surface roughness up to 20nm Ra.
Silicon Carbide Plunger Rod is manufactured for rigorous testing of density, size, surface fluorescence penetration, and surface microstructure.
Silicon carbide plunger rod material density up to 3.15g/cm3, Vickers hardness up to 23GPa, high wear resistance.
Silicon Carbide Plunger Rod material is TUV FDA certified to meet food-grade media delivery requirements.
Specifications
Customize according to customer drawings.
Material performance sheet
Silicon carbide plunger rod
