Product Details:
|
| Advantage: | High Hardness, High Wear Resistance And Long Life | Material: | Ultrafine Silicon Carbide Powder |
|---|---|---|---|
| Content: | 99% SIC | Chemical: | Excellent Chemical Stability, Can Resist All Kinds Of Acid, Alkali And Organic Solvent Corrosion |
| Application: | Fine Chemical, Pharmaceutical, Medical, Semiconductor, Lithium Battery Materials, Etc | Dimension: | Silicon Carbide Seal Rings Are Often Customized To Customer Requirements. |
| Highlight: | FDA Pharmaceutical Silicon Carbide Ceramics,TUV FDA Silicon Carbide Ceramics,Silicon Carbide 99% SIC impeller |
||

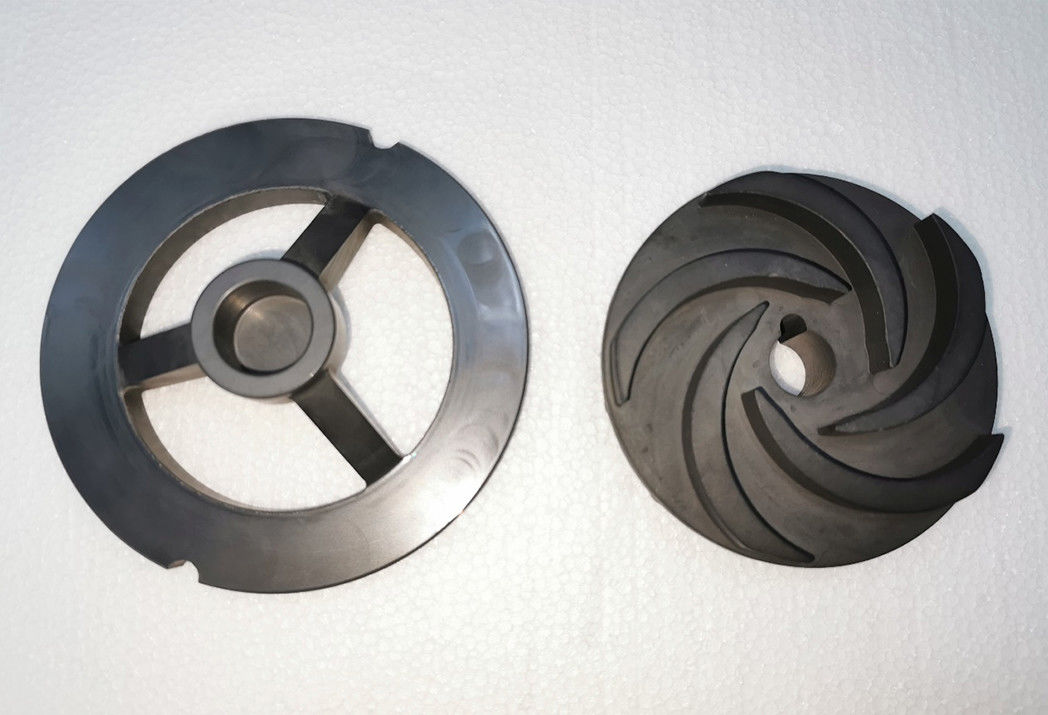

Silicon carbide impeller
Silicon Carbide impeller is formed by dry bag isostatic pressing and sintering without pressure. According to the design requirements for multi-angle drilling, keyway processing, inside and outside diameter and end face for finishing, can be five axis processing, to meet the different design needs of users.
Typical applications
Strong corrosion, particle erosion conditions of fluid pump.
Application industries: fine chemical industry, pharmaceutical industry, environmental protection engineering.
Features and advantages
CoreSiC ® SP silicon carbide impeller can be drilled and grooved, and the inner and outer diameters and end faces can be finished (including curved surfaces). The overall size is up to 400mm, and the machining accuracy is up to 0.01mm.
CoreSiC ® SP silicon carbide impellers can be machined five axes to meet design requirements.
CoreSiC ® SP silicon carbide impeller factory for strict density, size, surface fluorescence penetrant testing.
CoreSiC ® SP silicon carbide impeller material density up to 3.15g/cm3, Vickers hardness up to 23GPa, high wear resistance.
CoreSiC ® SP SiC impeller materials are TUV FDA certified to meet food-grade media delivery requirements.
Specifications
Customize according to customer drawings.
Material performance sheet
Silicon carbide impeller
