Kiln furniture used for sintering and debinding metal injection moulded (MIM) components

Description
Application: Bearings Mechanical Seals Bearings Valve Plates Ball Valves Nozzles Pipeline Lining Thermocouple Protection Tube Material: Al2O3 Aluminum Oxide, 95%, 99%
Color: White Size: Customized
Shape: Round, Balls, Irregular, Tube, Customized Density: >=3.6g / Cm3
Feature: Wear Resistant Corrosion Resistant Thermal Shock Resistant High Strength Air Impermeability Product Name: Manufacturer Supplier 95%-99.8% Aluminum Oxide Ceramic Al2O3 Crucibles, Alumina Furnace Tube, Al2O3 Grinding Polishing Packing Ceramic Balls, Alibaba China Wear-resisting Alumina Ceramics, Al2O3 Aluminium Oxide Alumina Ceramic

 Setter / kiln furniture used for

sintering and debinding metal injection moulded (MIM) components



In the metal powder injection molding (MIM) industry for many years accumulated rich experience, for our products in the application of customers to win wide recognition! According to customers' different sintering degreasing process and customer's product requirements, provide the best ceramic sintering carrier.





​Advantage:

  • Highly complete raw materials to ensure detailed product information
  • Good breathability, high social taste
  • Excellent resistance to rapid deterioration of cold and heat, long life
  • Reasonable size control to ensure precise requirements.
  • Advanced process technology to meet the requirements of various special-shaped parts and appearance parts
  • Good surface finish and integrity

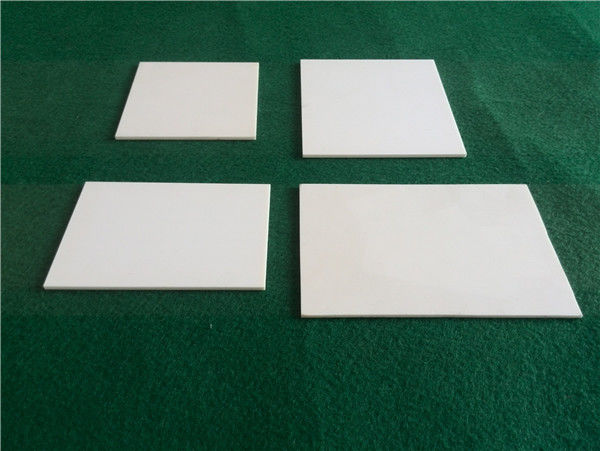

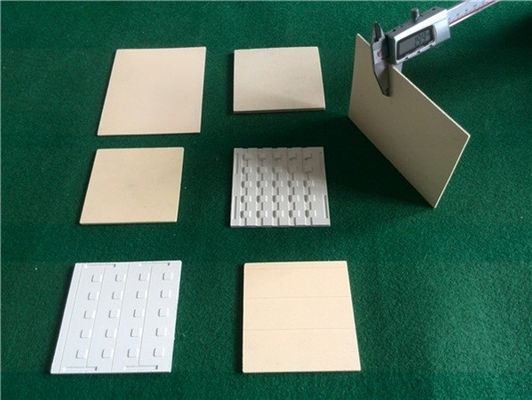

Ceramic sintering carrier for batch furnace



DM-A96, Using high purity and superfine alumina powder, the surface of ceramic plate is smooth and delicate. It can form ultra-thin plates. The minimum dimension thickness is more than 0.5mm. Also can process all kinds of groove, platform surface, etc. Precision Tolerance ± 0.03mm



Specification:



Al2O3 % ≥96

SiO2 % ≤4

Fe2O3 % ≤0.1

Na2O3 % ≤0.15

Mgo % ≤0.2



Bulk density:  3.6 g/cm2

Apparent porosity  20%

Bending Strength  3500MPa

Coefficient of thermal expansion 6.8 A×10-6/℃

Working Temp.  ≤1600

Kiln furniture used for sintering and debinding metal injection moulded (MIM) components 0


DM-A99

Specification:



Al2O3 % ≥99

SiO2 % ≤1

Fe2O3 % ≤0.1

Na2O3 % ≤0.15

Mgo % ≤0.2



Bulk density: 3.8 g/cm2

Apparent porosity 0%

Bending Strength 360MPa

Coefficient of thermal expansion 7.1 A×10-6/℃

Working Temp. ≤1600
