NON-WOVEN ABRASIVES

NON-WOVEN ABRASIVES
NON-WOVEN ABRASIVES NON-WOVEN ABRASIVES NON-WOVEN ABRASIVES NON-WOVEN ABRASIVES NON-WOVEN ABRASIVES NON-WOVEN ABRASIVES

Large Image :  NON-WOVEN ABRASIVES

Product Details:
Place of Origin: CHINA
Brand Name: ZG
Certification: CE
Model Number: MS
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD10/piece
Packaging Details: Strong wooden box for Global shipping
Delivery Time: 3 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 pieces per month

NON-WOVEN ABRASIVES

Description
Material: Non-Woven Abrasives Application: Used For Deburring Of Wood, Paint, Lacquers, Brass, Copper And Steel. Suitable For Stainless Products, Excellent For Satinising Of Aluminium.
Highlight:

1.2x91.4M Non Woven Abrasive Pads

,

Tan Maroon Surface Conditioning Belt

,

Non Woven Abrasive Pads Tan Maroon





Non-Woven Abrasives

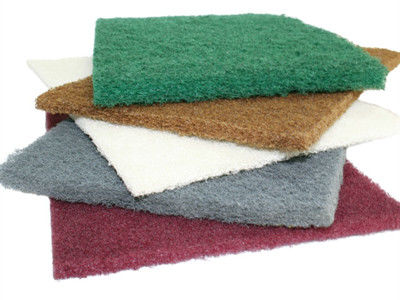

1.Non-Woven Pad & Rolls



Non-woven abrasive products sometimes called Satin Web are commonly used for deburring of wood, paint, lacquers, brass, copper and steel. Suitable for stainless products, excellent for satinising of aluminium.







Name Size Grit Abrasives Application
SAP150II 0.6X50M 150 A/O Suitable for quickly remove oxidationlayer,derusting and polishing;
SAP240II 1.2x91.4M 240 A/O Suitable for thick surface oxidationlayerremoving before paint;
SAP240IV 1.2x91.4M 240 A/O Suitable for thick surface oxidationlayerremovingbefore paint and deburring;
SAP320I 1.2x91.4M 320 A/O Applicable in all kinds of metal surfacederustingandpattern decoration;
SAP320II 1.2x91.4M 320 A/O Applied to derusting and cleaning allkinds ofmetaland wood surface beforethe painting;
SAP400I-1 1.2x91.4M 400 A/O Applied in polishing, cleaning and deburringvariousmaterial surface;
SAP600I 1.2x91.4M 600 A/O Applied in carpentry deburring,edge grindingandsurface treatment;
SCP1000I 1.2x91.4M 1000 SIC Suitable for polishing metal, plastic and woodmaterialsurface precisely;
SW 1.2x91.4M Non Non Without abrasive, applicable for cleaning metal, glass etc.

PS: The jumbo roll can cut into different sizes and the package could be madeas custo

NON-WOVEN ABRASIVES 0

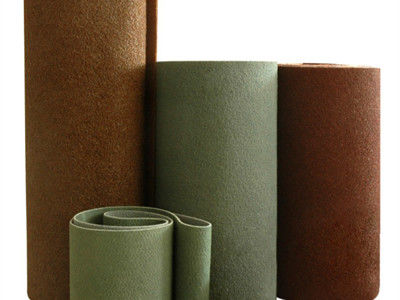

2.Surface Conditioning Abrasive Jumbo Roll



Surface Conditioning Abrasive Jumbo Roll is made of high quality nylon fiber and abrasives.

It can make surface conditioning belts and discs.



Type B (For Belt)
Size(WxL) Abrasive Grit Color Packing
1.36X25M A/O Coarse Tan 1 Roll
1.36X25M A/O Medium Maroon 1 Roll
1.36X25M A/O V Fine Blue 1 Roll
1.36X25M S/C S Fine Grey 1 Roll



Type D (For Disc)
Size(WxL) Abrasive Grit Color Packing
1.36X25M A/O Coarse Tan 1 Roll
1.36X25M A/O Medium Maroon 1 Roll
1.36X25M A/O V Fine Blue 1 Roll
1.36X25M S/C S Fine Grey 1 Roll

NON-WOVEN ABRASIVES 1



3.Surface Conditioning Belt



The surface conditioning belts are used for sanding and finishing of all surfaces, including wood and metal. Available in coarse, medium, very fine and super fine. Commonly used with tools, castings, welding seams, punched and forged parts.



Name Size Grit Abrasives Color
Surface Conditioning Belt 10x330mm,
30x533mm,
1/2x18''1/2x24'',
4x24'',
4''x36''
Coarse A/O Tan
Mediun A/O Maroon
V Fine A/O Blue
S Fine SIC Grey

 NON-WOVEN ABRASIVES 2



4.Surface Conditioning



The discs can be used to rub narrow parts of dot and line, which could reduce the grinding area.They are mainly applied in steel derusting, weld removing and burrs grinding.





Size Grit Abrasives Color
2'' & 3'' Coarse A/O Tan
2'' & 3'' Medium A/O Maroon
2'' & 3'' V Fine A/O Blue
2'' & 3'' S Fine SIC Grey



Size Grit Abrasives Color
4''-8'' Coarse A/O Tan
4''-8'' Medium A/O Maroon
4''-8'' V Fine A/O Blue
4''-8'' S Fine SIC Grey



NON-WOVEN ABRASIVES 3

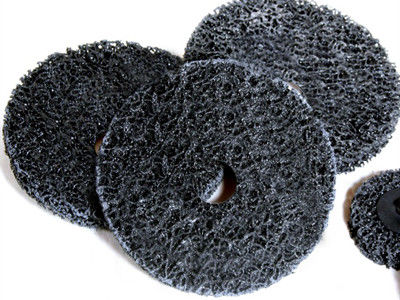

5. Stripping Disc



Rapid Stripping discs are constructed with thick, strong synthetic fibers and extra-coarse silicon carbide abrasive.The open web construction of the disc provides fast cutting action with very little loading.

Application: The strip discs are based on the high strength wear-resistant fiber and combined with the elastic resin and emery organic. They are widely applied in car manufacturing, ship manufacturing,decoration for furniture, machine manufacturing, etc.





Size(mm) Grit Abrasives Color r/min
50x16 36-80# SIC Black 6000
75x16 36-80# SIC Black 6000
100x16 36-80# SIC Black 6000
115x22 36-80# SIC Black 6000
125x22 36-80# SIC Black 5000
130x22 36-80# SIC Black 5000
150x22 36-80# SIC Black 4000
180x22 36-80# SIC Black 4000



NON-WOVEN ABRASIVES 4

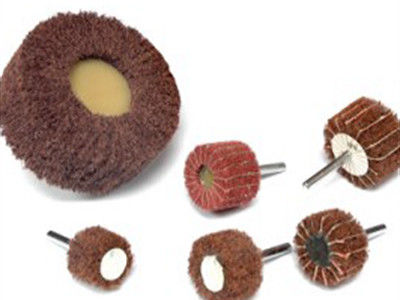

5.Mounted Flap Wheel



The mounted flap wheels are applied in polishing, deburring, and removal of pits, burrs, and scratches. Remove parting lines and provide a uniform scratch pattern on all metals.



Size

Max(r/min)

Grit

2” x 1” x 1/4”(50mmx25mmx6mm)

11000

Coarse

11000

Medium

11000

Fine

2” x 2” x1/4”(50mmx50mmx6mm)

11000

Coarse

11000

Medium

11000

Fine

3” x 1”x 1/4”(75mmx25mmx6mm)

8000

Coarse

8000

Medium

8000

Fine

3” x 2” x1/4”(75mmx50mmx6mm)

8000

Coarse

8000

Medium

8000

Fine

NON-WOVEN ABRASIVES 5



6.Flap Wheel





Excellent for metal finishing where uniform scratch patterns or satin and decorative finishes are required, also for light deburring and removal of parting lines. Finer finish than regular flap wheels.





Name ODxHxID(mm) Grit
Flap Wheel

150x25x25mm,

150x50x25mm,

200x25x25mm,

200x50x25mm,

200x50x75mm

Coarse
Flap Wheel Medium
Flap Wheel V Fine
Flap Wheel S Fine



NON-WOVEN ABRASIVES 6

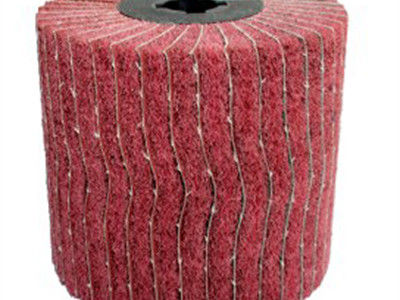

7.Drawing Wheel



The drawing wheels are widely apply in polishing machine,uesd to the surface conditioning in stainless steel,aluminum ,cooper and other metal products. It could creat various patterns on the workpiece surface.





Name DxHxD(mm) Grit Abrasives
Drawing Wheel

100x100x19;

110x100x19;

120x100x19;

Coarse A/O
Drawing Wheel Medium A/O
Drawing Wheel V Fine A/O
Drawing Wheel S Fine SIC



NON-WOVEN ABRASIVES 7

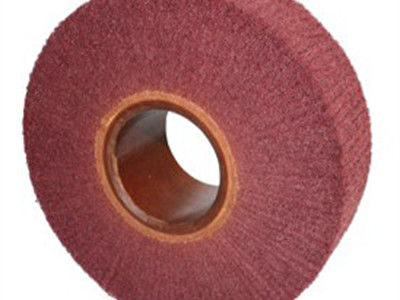

8.Convolute Wheel



Convolute wheels are designed to be smear and heat resistant while producing fast cut rates and finer finishes with consistent results. They are recommend for medium to heavy deburring applications, blending coated abrasives scratch patterns, and polishing stainless steel and titanium parts.



Size Color Abrasive Grit Hardness
6" X 1" X 1"(150mmX25mmX25mm) Maroon/Grey S/C 100#-800# 2S-9S
8"x 1" x 3"(200mmx25mmx75mm) Maroon/Grey S/C 100#-800# 2S-9S
12"x 1" x 3"(300mmx25mmx75mm) Maroon/Grey S/C 100#-800# 2S-9S
16-1/2” x 4” x 3”(410mmx50mmx75mm) Maroon/Grey S/C 100#-800# 2S-9S





NON-WOVEN ABRASIVES 8
