Product Details:
|
| Hardness: | 7.5+ | Product: | Garnet |
|---|---|---|---|
| Application: | Blast Cleaning | Mesh Size: | 12/24, 20/40, 30/60 |
| High Light: | Blast Cleaning Alumina Ceramic Parts,Garnet Water Filtration Media,Fe3AlO3(SiO4)3 Garnet Water Filtration Media |
||
Water Filtration Media
Waterjet Cutting Abrasive,Almandite Garnet

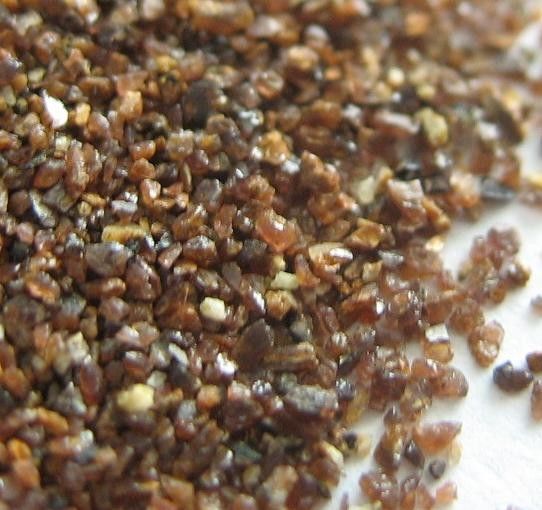

SINOGARNET® filter sand is a hard rock garnet and is mined from an almandite garnet deposit. It is ideal for use as the water filtration grained layer in multi-media systems. SINOGARNET® garnet filter sand provides uniform physical characters, chemical and microstructure characteristics. There are no free elements. All oxides are combined chemically as an iron-rich aluminosilicate, which has the formula: Fe3AlO3(SiO4)3. It is as polishing layer for removal of suspended solids down to 1μm, which combined with silicate sand and anthracite filter.
SINOGARNET® garnet filter sand has certified to NSF/ANSI 61 and has widely used in a variety of filtration application including industrial waste water treatment, municipal water filtration and commercial filtration systems etc.
|
Characteristics |
|
|
Shape |
Angular |
|
Specific Gravity |
4.0 – 4.2 |
|
Bulk Density |
2.0 – 2.3 |
|
Moh Hardness |
7.0 – 8.0 |
|
Acid Solubility |
Insoluble |
|
Typical Chemical Analysis |
|
|
SiO2 |
33-37% |
|
Al2O3 |
17-21% |
|
MgO |
4-6% |
|
FeO+Fe2O3 |
33-42% |
|
CaO |
1.5-2% |
|
MnO |
0-1.5% |
|
TiO2 |
0-1.5% |
|
Standard Mesh Sizes |
|
|
0.3-0.6mm, 1.4-2.5mm, #80, #8/12, #12, #16, |
|
Sinogarnet is composed of natural abrasive material with Mo’s hardness 7-8. Sinogarnet abrasive material is a cost-effective alternative to silica sand and other metal slags.
Application of Sinogarnet abrasive material:
1.Blasting abrasive material for steel rust removing V
2.Water jet cutting abrasive material for many industry processing area
3.Water Filtration & Water treatment
4.High quality polishing abrasive material
Advantage of Sinogarnet Abrasive Material:
Higher Productivity, Lower Costs
Garnet abrasives are harder, heavier and more durable than other blasting abrasives. Sinogarnet abrasives cut faster and recycle efficiently, significantly increasing productivity while reducing consumption of the abrasive media as well as the costs to handle it, collect it and dispose of it.
Superior Surface Quality
Blasting with sinogarnet abrasives produces a super clean surface with a uniform profile that is virtually free of particle embedment. A clean surface and uniform profile result in better coating adhesion and longer coating life.
Low Dusting, Safe to Use
Sinogarnet is a 100% natural, inert mineral containing < 1% free silica and no heavy metals. Sinogarnet poses little to no health or environmental risks. Under the high quality control, Our garnet products are with less dust than many other blasting abrasives mineral material.
