Product Details:
|
| Products: | Macor Machinable Glass Ceramic | Color: | White |
|---|---|---|---|
| Density: | 2.6g/cm3 | Porosity: | 0.069% |
| Hardness: | 4-5Mohs | Compressive Strength: | 508 MPa |
| Highlight: | 5 Mohs Machinable Glass Ceramic,2.6g/m3 Ceramic Square Rod Bar,Machinable Glass Ceramic 2.6g/M3 |
||

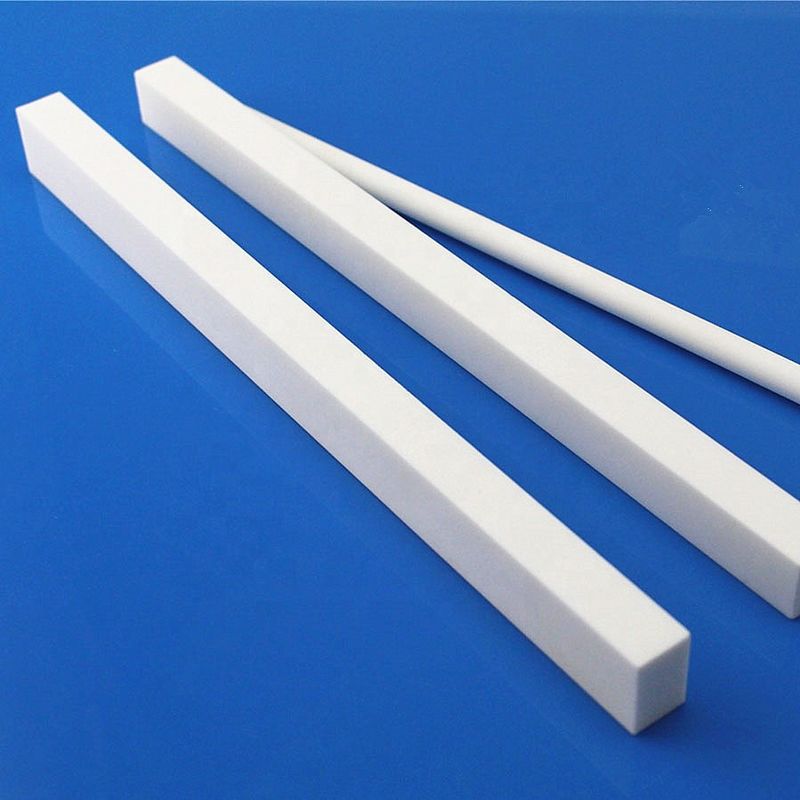

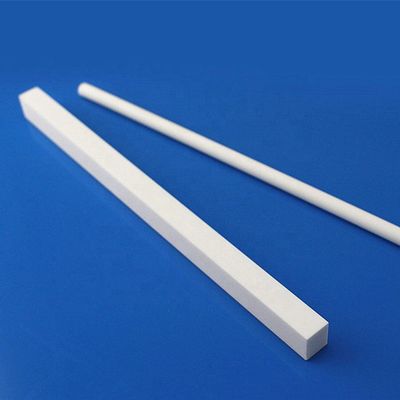

Macor Machinable Glass Ceramic
Macor Machinable Glass Ceramic, Machined With Conventional Metalworking Tools
Macor machinable glass ceramic has the versatility of a high performance polymer, the machinability of a metal, and the performance of an advanced technical ceramic. It is a hybrid glass-ceramic and offers a unique combination of properties from both families of materials. Macor is an excellent electrical and thermal insulator, and offers good performance in high temperature, vacuum, and corrosive environments.
One of the main advantages of Macor is that it can be machined with conventional metalworking tools. This allows for significantly faster turnarounds and substantially lower production costs when compared with other technical ceramics, making it an excellent material for both prototyping and medium-volume production runs.
Features :
1. High Dielectric Strength, Excellent Insulation
2. Good Machinability, Machinable With Ordinary Metal Tools And Fast Turnaround
3. High Precision, Hold High Tolerance
4. Excellent Acid And Alkali Resistance
5. No Outgasing And Zero Porosity
6. Withstand High Temperature Up To 800℃
Properties of production:
| PROPERTIES | ITEM | UNIT | VALUE |
| Physical | Color | - | white |
| Density | g/m³ | 2.6 | |
| Porosity | % | 0.069 | |
| Mechanical | Compressive strength | Mpa | >508 |
| Hardness | Mohs | 4-5 | |
| Thermal | Thermal conductivity(25℃) | W/m.k | 1.71 |
| Thermal expansion coefficient | ℃ | 72×10-7 | |
| Electrical | Dielectric Strength | V/mm | >40 |
| Dielectric constant | 6-7 | ||
| Volume Resistivity | Ohm.cm | >1014 |
