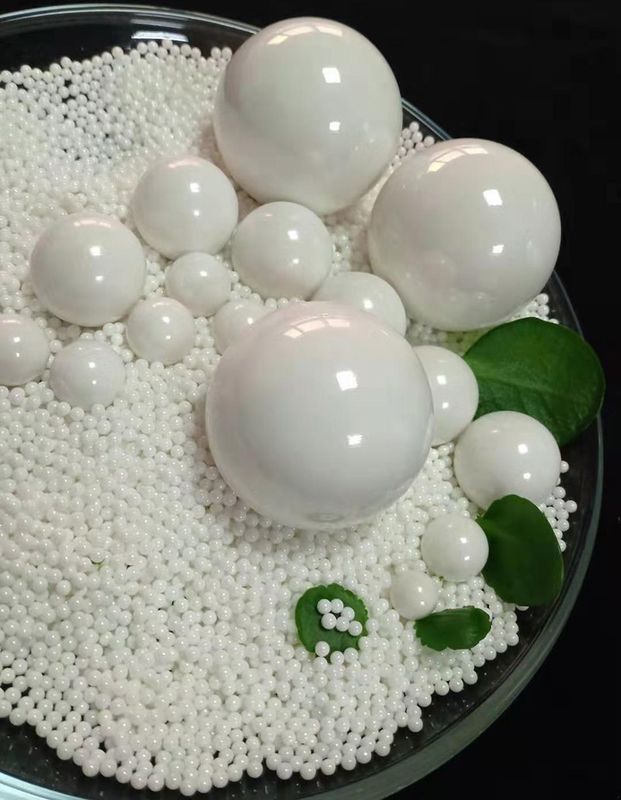

Sintered Zirconium Oxide Ceramics Beads Stabilized With Yttria Fine Grinding Media

Sintered Zirconium Oxide Ceramics Beads Stabilized With Yttria Fine Grinding Media
Sintered Zirconium Oxide Ceramics Beads Stabilized With Yttria Fine Grinding Media

Large Image :  Sintered Zirconium Oxide Ceramics Beads Stabilized With Yttria Fine Grinding Media

Product Details:
Place of Origin: CHINA
Brand Name: ZG
Certification: CE
Model Number: MS
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD10/piece
Packaging Details: Strong wooden box for Global shipping
Delivery Time: 3 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 pieces per month

Sintered Zirconium Oxide Ceramics Beads Stabilized With Yttria Fine Grinding Media

Description
Application: Fine Grinding Media Type: Balls Or Beads
Material: Yttria Stabilized Zirconia Color: White
Density: 6.0 G/cm3 Size: 2.0-3.0mm
Highlight:

Sintered Zirconium Oxide Ceramics Beads

,

Yttria Zirconium Oxide Ceramics

,

Zirconium Oxide Fine Grinding Media

Zirconia Beads, Partially Stabilized with Yttria, Sintered, fine grinding media



YTZP yttria zirconia beads are made of high-grade and nanometre Yttria Stabilized Zirconia (YSZ) which is proudly produced by our own facility in large and homogenous batches. This advanced precursor material guarantees excellent mechanical properties, outstanding wear resistance and good corrosion resistance. This high density bead is used to achieve maximum milling results at minimum product contamination rates.

Until now, zirconia beads are successfully being used in all modern types of mills, which include vertical mills, horizontal mills, agitated media mills, stirred media mills, such as IsaMill™, Metso Vertimill®, Metso SMD, FLSmidth® VXPmill, OUTOTEC HIGmill®, HOSOKAWA ALPINE agitated media mills, NETZSCH mills, Buhler bead mills, DYNO® mills, CMC Supermill PLUS®, 'Red Head' vertical media grinding mills, Niemann Kreis-Basket-Mill® Getzmann bead mill & basket mill, Vollrath bead mill, HCP Immersion mill, IEC basket mill & bead mills, just name of a few...





Features

  • High density media ideal for high energy mills, maximizing throughput and productivity

  • High fracture toughness and high wear resistance minimize the contamination of beads during high speed milling

  • At least 15% superior to Ceria Stabilized Zirconia medias in wear rate, proved by many tests



Main Applications

YTZP yttria zirconia beads can be used in milling and dispersion of following materials, just name a few:





  • Bio-tech (DNA, RNA & protein extraction and isolation)

  • Chemicals including Agrochemicals e.g. fungicides, insecticides and herbicides

  • Coating, paints, printing and inkjet inks

  • Cosmetics (Lipsticks , Skin & sun protection creams)

  • Electronic materials and components e.g. CMP slurry, ceramic capacitors, lithium iron phosphate battery

  • Food

  • Minerals e.g. TiO2, Calcium Carbonate and Zircon

  • Pharmaceuticals

  • Pigments and dyes

Some other applications, just name a few:

  • Flow distribution in process technology

  • Vibro-grinding and polishing of jewelrys, gemstones & aluminum wheels

  • Sintering bed with good thermal conductivity, can sustain high temperatures





Chemical Composition

Zirconium Oxide ( ZrO2 ) 94.6 ± 0.2%
Yttrium Oxide ( Y2O3 ) 5.2 ± 0.2%
Remainder 0.2 ± 0.05%





 Properties *

Density ( g/cc ) 6.0 ( ± 0.05 )
Bulk density ( kg/l ) 3.7
Hardness ( HV5 ) 1306
Mohs' hardness 9
Breaking load (N) 1500
Color White

(pearl sheen)



Standard Sizes (∅,mm ) *

Beads



0.03,  0.05,  0.08 - 0.13, 0.1 - 0.2, 0.2 - 0.3, 0.2 - 0.4, 0.3 - 0.4

0.4 - 0.6, 0.6 - 0.8, 0.8 - 1.0, 1.0 - 1.2, 1.2 - 1.4, 1.4 - 1.7,

1.5 - 2.0,  2.0 - 2.5, 2.6 - 3.3, 3.5 - 4.5, 4.5 - 5.5





Balls

8.0 - 9.0,  9.5 - 10.5,  11.5 - 12.5

* Other sizes can be customized
