Product Details:
|
| Application: | Fine Grinding Media | Type: | Balls Or Beads |
|---|---|---|---|
| Material: | Zirconium Silicate | Color: | White |
| Density: | 4.0 G/cm3 | Size: | 2.0-3.0mm |
| Highlight: | Sintered Zirconium Silicate Beads,SZS Zirconium Silicate Beads,4.0 G/Cc Zirconium Silicate Beads |
||

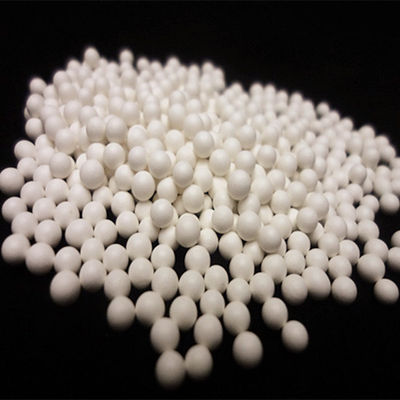

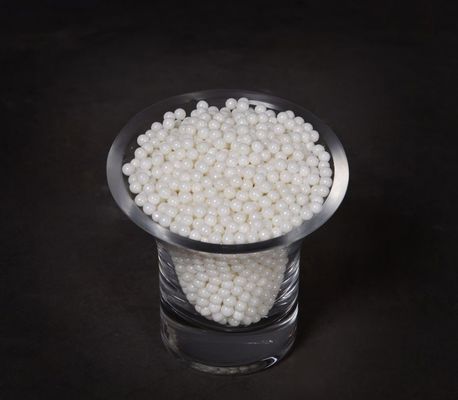

Zirconium Silicate Beads, Sintered, Medium Density Beads Type: SZS (4.0 g/cc)
SZS Zirconium Silicate Beads are manufactured from world-class premium zircon (ZrSiO4) mineral in a special high temperature sintering process. Because of its outstanding breakage resistance and the advantageous price, this medium density bead is particularly suitable for use in large-volume agitated bead mills.
Until now, Zirconium Silicate Beads are successfully being used in all modern types of mills, which include vertical mills, horizontal mills, agitated media mills, stirred media mills, such as IsaMill™, Metso Vertimill®, Metso SMD, FLSmidth® VXPmill, OUTOTEC HIGmill®, HOSOKAWA ALPINE agitated media mills, NETZSCH mills, Buhler bead mills, DYNO® mills, CMC Supermill PLUS®, 'Red Head' vertical media grinding mills, Niemann Kreis-Basket-Mill® Getzmann bead mill & basket mill, Vollrath bead mill, HCP Immersion mill, IEC basket mill & bead mills, just name of a few...
Features
A medium density media particularly suitable for use in large-volume agitated bead mills
Fully dense, perfect sphericity and extremely smooth beads surface
No porous and irregular shape problems
Outstanding breakage resistance
Optimum performance-price ratio
This is the bead recommended to efficiently fine-grind zircon
Main Applications
SZS Zirconium Silicate Beads can be used in milling and dispersion of following materials, just name a few:
Coating, paints, printing and inks
Pigments and dyes
Agrochemicals e.g. fungicides, insecticides
Minerals e.g. TiO2 ,GCC , Zircon and Kaolin
Gold, silver, platinum, lead, copper and zinc sulfide
Chemical Composition
| Zirconium Oxide ( ZrO2 ) | 52% |
| Silica ( SiO2 ) | 35% |
| Aluminium Oxide ( Al2O3 ) | 10% |
Properties *
| Density ( g/cc ) | 4.0 ( ± 0.1 ) |
| Bulk density ( kg/l ) | 2.4 |
| Hardness ( HV5 ) | 1127 |
| Mohs' hardness | 7.2 |
| Breaking load (N) | 800 |
| Color White |
(glossy sheen) |
Standard Sizes (∅,mm ) *
0.4 - 0.6 0.6 - 0.8 0.8 - 1.0 1.0 - 1.2 1.2 - 1.4
1.4 - 1.6 1.6 - 1.8 1.8 - 2.0 2.0 - 2.2 2.2 - 2.5
2.5 - 2.8 2.8 - 3.2 3.0 - 4.0 4.0 - 5.0 5.0 - 6.0
6.0 - 7.0 7.0 - 8.0 8.0 - 10.0 10.0 - 12.0 12.0 - 14.0
