Wet Grinding Zirconium Oxide Ceramics Zirconia Toughened Alumina Beads And Balls

Wet Grinding Zirconium Oxide Ceramics Zirconia Toughened Alumina Beads And Balls
Wet Grinding Zirconium Oxide Ceramics Zirconia Toughened Alumina Beads And Balls Wet Grinding Zirconium Oxide Ceramics Zirconia Toughened Alumina Beads And Balls

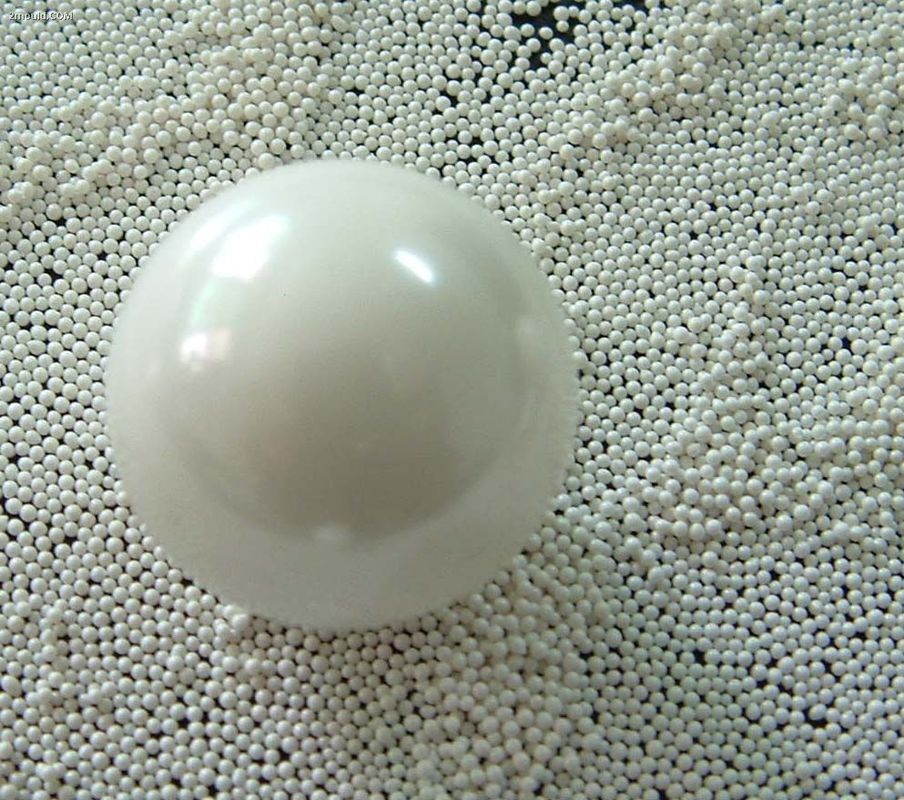

Large Image :  Wet Grinding Zirconium Oxide Ceramics Zirconia Toughened Alumina Beads And Balls

Product Details:
Place of Origin: CHINA
Brand Name: ZG
Certification: CE
Model Number: MS
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD10/piece
Packaging Details: Strong wooden box for Global shipping
Delivery Time: 3 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 pieces per month
Contact Now

Wet Grinding Zirconium Oxide Ceramics Zirconia Toughened Alumina Beads And Balls

Description
Application: Fine Grinding Media Type: Balls Or Beads
Material: Zirconia Toughened Alumina Color: White
Density: 3.65 G/cm3 Size: 2.0-3.0mm
Highlight:

Wet Grinding Zirconium Oxide Ceramics

,

Zirconia Toughened Alumina Beads

,

Zirconia Toughened Alumina Balls



Zirconia Toughened Alumina Beads and Balls, Sintered (Invented for Wet Grinding)



ZTA-W beads & balls are unique products, developed by expert R&D team after several years of research and experiments. We adopt our experienced roll / granulation method for forming this type of products to make it specifically suitable for wet grinding applications. Proved by many comparison wear rate tests, ZTA-W shows 4 - 30 times better in wear resistance than various quality High Alumina ( 90 - 92 % Al2O3 ) grinding media in global market, and its similar density enables this product to substitute High Alumina media very well.

​

Until now, Zirconia Toughened Alumina Beads & Balls are successfully being used in many modern types of mills, which include vertical mills, horizontal mills, agitated media mills and stirred media mills, such as IsaMill™, Metso Vertimill®, Metso SMD, FLSmidth® VXPmill, OUTOTEC HIGmill® and many conventional ball mills.





Features

  • Available in big sizes balls up to ∅70 mm, which suits wet-grinding in ball mills

  • At least 4 times better in wear resistance than “the best” High Alumina ( 90 - 92 % Al2O3 ) grinding media in the world market, proved by many tests

  • The product's similar density enables it to substitute High Alumina media very well

  • Superior performance-price ratio saving users' cost

  • This is the grinding media recommended by us for fine and ultra-fine grinding gold, silver, platinum, lead, copper and zinc sulfide

Main Applications

ZTA-W beads/balls are specifically suitable for wet grinding of following materials in ceramic and mining industry, just name a few:

  • Ceramic body, glaze and zircon

  • Gold, silver, platinum, lead, copper and zinc sulfide





Chemical Composition

Zirconium Oxide ( ZrO2 ) 2%
Silica ( SiO2 ) 4%
Aluminium Oxide ( Al2O3 ) 90%





 Properties *

Density ( g/cc ) 3.65
Bulk density ( kg/l ) 2.3
Hardness ( HV5 ) 1230
Mohs' hardness 9
Breaking load (N) 800
Color White

white





Wear Rate

Wet Grinding   0.03 %

Test Condition

a Lab Ball Mill (Jar Mill) Size: 7.6 L, Media Size: 40 mm,

Media Feed: 4 kg (Media Filling Volume =23%),

Water Feed: 4 L, Material Feed: 3 kg Zircon sand,

Mill Speed: 90 rpm,

Grinding Test Time: 24 hrs



Standard Sizes (∅,mm ) *

Beads

2.0 - 2.5   2.5 - 3.0   3.0 - 3.5   3.5 - 4.5   4.5 - 5.5

5.5 - 6.5   6.5 - 7.5   7.5 - 8.5   9 - 11   11 - 13

12 - 14   14 - 16   16 - 18   18 - 20



Balls

20 ± 1   26 ± 1.5   32 ± 1.5   35 ± 2  40 ± 2

45 ± 2   52 ± 2      63 ± 2      70 ± 3



Wet Grinding Zirconium Oxide Ceramics Zirconia Toughened Alumina Beads And Balls 0
