Product Details:
|
| Application: | Industry Ceramic | Maximum Working Tempreture: | 1700℃ |
|---|---|---|---|
| Material: | Boron Nitride | Density: | 2.3-3.0g/cm3 |
| Composition: | BN>99% | Type: | Customization |
| High Light: | Pure BN99 Boron Nitride Ring,Hot Pressed Boron Nitride Plate,White Boron Nitride Plate |
||

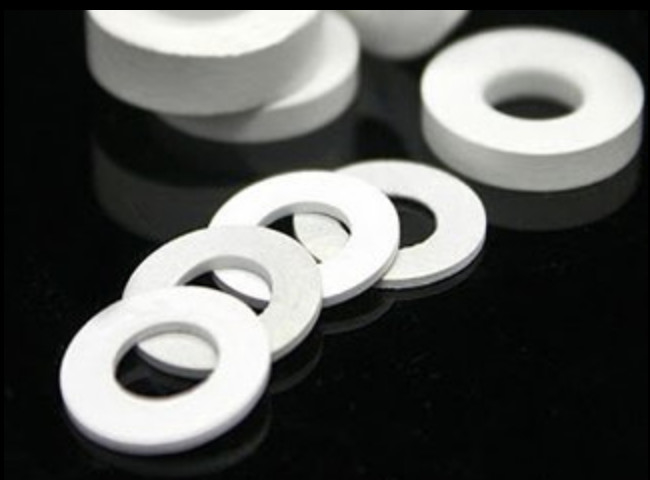

Boron Nitride (BN) Ring
We provide standard products & tailor-made products for hot-pressed boron nitride ring. Except for pure BN99 ring, we also supply BN composites with silicon carbide, calcium borate, aluminum nitride and zirconia, to fulfill various of demand for the customers. Check the boron nitride specifications for our pure BN99 and zirconia composite material ZSBN.
| Material | BN99, BN60, ZSBN, BN-AlN, HBR, ZSBN |
| Molecular Weight | 24.82 |
| Appearance | White |
| Melting Point | 2973 °C |
| Density | 2.1 g/cm3 (h-BN); 3.45 g/cm3 (c-BN) |
| Solubility in H2O | Insoluble |
| Refractive Index | 1.8 (h-BN); 2.1 (c-BN) |
| Electrical Resistivity | 13 to 15 10x Ω-m |
| Dimensions | Length: 10~400mm, ID: >2mm |
| Material | Description |
| BN99 | Hot pressed at high temperature (1900℃). Excellent corrosion resistance and thermal conductivity. Limited wear resistance Self-bonded and high purity (>99%) |
| BNBO | General purpose material Bonded by boric oxide |
| BNCB | Calcium borate bonded boron nitride Enhanced moisture resistance |
| BN60 | BN 60%, SiO2 40% |
| BN40 | BN 40%, SiO2 60% |
| ZSBN | BN-45%, Zr2O3 45% |
Boron Nitride ceramic from Ceramics Division can withstand high temperature in the high vacuum environment, plus it has excellent corrosion resistance and electrical resistance.
-Low wettability to molten metal
-Relatively high thermal conductivity with low thermal expansion
-Relatively high thermal shock resistance
-Extremely high working temperature with proper inert gas protection (>3000C has been recorded).
Based on the above properties, Boron Nitride Ring is an ideal choice in a wide range of industries, such as:
-Used in nozzles for nonferrous metals metallurgy industry
-Used as break rings for horizontal casting machine
-Used in insulators for high temperature furnace
-Used to feed through for high voltage equipment
-Used in Boron Nitride parts for ion injection equipment
As a ceramic material, boron nitride is quite fragile in a lot of cases. Our Hot-Pressed Boron Nitride Ring is carefully handled to minimize damage during storage and transportation. Suitable outer boxes and inner cushioning materials are used for BN products, vacuum packing is also engaged for some of the parts.
