Pressureless Sintered Silicon Carbide Parts with High Thermal Conductivity and Excellent Erosion Resistance

I'm Online Chat Now

Pressureless Sintered Silicon Carbide Parts with High Thermal Conductivity and Excellent Erosion Resistance

Pressureless Sintered Silicon Carbide Parts with High Thermal Conductivity and Excellent Erosion Resistance
Pressureless Sintered Silicon Carbide Parts with High Thermal Conductivity and Excellent Erosion Resistance Pressureless Sintered Silicon Carbide Parts with High Thermal Conductivity and Excellent Erosion Resistance Pressureless Sintered Silicon Carbide Parts with High Thermal Conductivity and Excellent Erosion Resistance Pressureless Sintered Silicon Carbide Parts with High Thermal Conductivity and Excellent Erosion Resistance

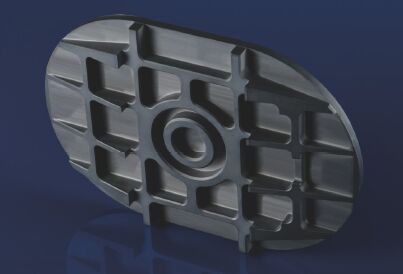

Large Image :  Pressureless Sintered Silicon Carbide Parts with High Thermal Conductivity and Excellent Erosion Resistance

Product Details:
Place of Origin: China
Brand Name: ZG
Certification: CE
Model Number: MS
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: 10USD/PC
Packaging Details: Strong wooden box for Global shipping
Delivery Time: 5-8 working days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 1000PCS

Pressureless Sintered Silicon Carbide Parts with High Thermal Conductivity and Excellent Erosion Resistance

Description
Highlight:

Pressureless Sintered Silicon Carbide Parts

,

High Thermal Conductivity SiC Components

,

Excellent Erosion Resistance SiC Ceramic Parts

Silicon Carbide (SiC) Parts
Silicon carbide (SiC) shares many characteristics with diamond—it is one of the lightest, hardest, and strongest technical ceramic materials. It possesses excellent thermal conductivity, acid resistance, and low thermal expansion. Silicon carbide is an excellent material when physical wear is a significant consideration, due to its exceptional erosion and abrasion resistance. This makes it suitable for various industrial applications including nozzles, sandblasting nozzles, and cyclone separator components.
Pressureless Sintered Silicon Carbide Ceramics
Mechanical Properties
Property Unit Silicon Carbide
Density g/cm³ 3.15
Vickers Hardness Hv0.5 2650
Flexural Strength MPa 450
Compressive Strength MPa 2650
Elastic Modulus GPa 430
Fracture Toughness MPa·m¹/² 4
Poisson's Ratio 0.14
Young's Modulus GPa 430
Silicon Carbide Raw Material Purity % 99
Thermal Properties
Property Unit Silicon Carbide
Thermal Conductivity at 25°C W/mK 110
Melting Point °C 2800
Specific Heat J/g·K 0.8
Linear Expansion Coefficient 10⁻⁶/K 4
Electrical Characteristics
Property Unit Silicon Carbide
Dielectric Constant 1MHz 10
Breakdown Voltage V/cm 1×10⁶
Dielectric Loss 1MHz 0.001
Resistivity Ω·cm 10²-10⁶
Pressureless Sintered Silicon Carbide Parts with High Thermal Conductivity and Excellent Erosion Resistance 0
