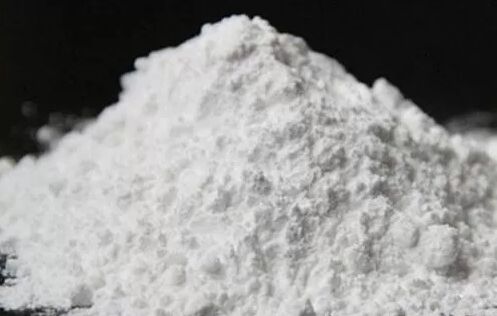

Large Particle Size Aluminum Nitride Filler Powder with High Purity (>96% AlN) for Customizable Thermal Interface Materials

Large Particle Size Aluminum Nitride Filler Powder with High Purity (>96% AlN) for Customizable Thermal Interface Materials
Large Particle Size Aluminum Nitride Filler Powder with High Purity (>96% AlN) for Customizable Thermal Interface Materials

Large Image :  Large Particle Size Aluminum Nitride Filler Powder with High Purity (>96% AlN) for Customizable Thermal Interface Materials

Product Details:
Place of Origin: China
Brand Name: ZG
Certification: CE
Model Number: MS
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: 10USD/PC
Packaging Details: Strong wooden box for Global shipping
Delivery Time: 5-8 working days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 1000PCS
Contact Now

Large Particle Size Aluminum Nitride Filler Powder with High Purity (>96% AlN) for Customizable Thermal Interface Materials

Description
Highlight:

Large Particle Size Aluminum Nitride Filler Powder

,

High Purity AlN Filler Powder

,

Customizable Particle Distribution Thermal Interface Material Filler

Aluminum Nitride Large Particle Filler Powder
Aluminum nitride large particle filler powder is manufactured using our proprietary aluminum nitride powder. Through advanced spraying, granulation, and sintering processes followed by precise screening and packaging, this product delivers exceptional performance for thermal interface materials (TIM).
Product Advantages
  • Advanced Crushing Technology: Mechanical crushing equipment significantly reduces powder agglomeration at microscopic levels, resulting in smoother particle texture and reduced roughness in tactile applications.
  • Precise Particle Size Control: Comprehensive particle size analysis after crushing and classification ensures consistent sizing beyond traditional sieve mesh methods, with improved narrow particle distribution.
  • Customizable Specifications: Products with varying particle sizes can be tailored to meet specific customer requirements and application needs.
Technical Specifications
Specifications TLA30 TLA50 TLA80 TLA100 TLA120
D50/μm 35±5 50±5 80±5 100±5 120±5
Appearance White White White White White
Spherical >95% >95% >95% >95% >95%
Apparent density/g*cm² 1.5~1.6 1.6~1.7 1.65~1.75 1.65~1.75 1.65~1.75
Tap density/g*cm² 1.8~1.9 1.85~2.05 1.95~2.1 1.95~2.1 1.95~2.1
O/wt% <2 <2 <2 <2 <2
AlN/wt% >96 >96 >96 >96 >96
Laser Particle Size Analysis Conditions
Ultrasound for 3 minutes
Circulating pump speed: 800 rpm
Material refractive index: 2.11
Refractive index of medium: 1.361
