High Thermal Conductivity Silicon Carbide Plate with Exceptional Erosion Resistance and Low Thermal Expansion for Industrial Applications

High Thermal Conductivity Silicon Carbide Plate with Exceptional Erosion Resistance and Low Thermal Expansion for Industrial Applications
High Thermal Conductivity Silicon Carbide Plate with Exceptional Erosion Resistance and Low Thermal Expansion for Industrial Applications High Thermal Conductivity Silicon Carbide Plate with Exceptional Erosion Resistance and Low Thermal Expansion for Industrial Applications High Thermal Conductivity Silicon Carbide Plate with Exceptional Erosion Resistance and Low Thermal Expansion for Industrial Applications High Thermal Conductivity Silicon Carbide Plate with Exceptional Erosion Resistance and Low Thermal Expansion for Industrial Applications

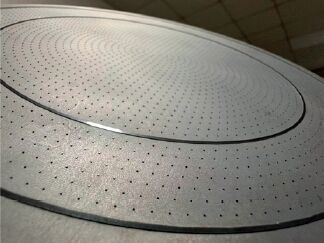

Large Image :  High Thermal Conductivity Silicon Carbide Plate with Exceptional Erosion Resistance and Low Thermal Expansion for Industrial Applications

Product Details:
Place of Origin: China
Brand Name: ZG
Certification: CE
Model Number: MS
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: 10USD/PC
Packaging Details: Strong wooden box for Global shipping
Delivery Time: 5-8 working days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 1000PCS
Contact Now

High Thermal Conductivity Silicon Carbide Plate with Exceptional Erosion Resistance and Low Thermal Expansion for Industrial Applications

Description
Highlight:

High Thermal Conductivity Silicon Carbide Plate

,

Exceptional Erosion Resistance SiC Plate

,

Low Thermal Expansion Silicon Carbide Ceramic Plate

Silicon Carbide (SiC) Plate
Silicon carbide (SiC) shares many characteristics with diamond—it is one of the lightest, hardest, and strongest technical ceramic materials. It possesses excellent thermal conductivity, acid resistance, and low thermal expansion. Silicon carbide is an excellent material when physical wear is a significant consideration, due to its exceptional erosion and abrasion resistance.
  • Pressureless Sintered Silicon Carbide Ceramics
  • Exceptional erosion and abrasion resistance
  • Suitable for nozzles, sandblasting nozzles, and cyclone separator components
Mechanical Properties
Property Unit Silicon Carbide
Density g/cm³ 3.15
Vickers Hardness Hv0.5 2650
Flexural Strength MPa 450
Compressive Strength MPa 2650
Elastic Modulus GPa 430
Fracture Toughness MPa*m¹/² 4
Poisson's Ratio 0.14
Young's Modulus GPa 430
Silicon Carbide Raw Material Purity % 99
Thermal Properties
Property Unit Silicon Carbide
Thermal Conductivity at 25°C W/mK 110
Melting Point °C 2800
Specific Heat J/g*K 0.8
Linear Expansion Coefficient 10⁻⁶/K 4
Electrical Characteristics
Property Unit Silicon Carbide
Dielectric Constant 1MHz 10
Breakdown Voltage V/cm 1×10⁶
Dielectric Loss 1MHz 0.001
Resistivity Ω*cm 10²-10⁶
High Thermal Conductivity Silicon Carbide Plate with Exceptional Erosion Resistance and Low Thermal Expansion for Industrial Applications 0

Tag:

99% SIC ceramic cylinder,

Semiconductor Industries Silicon carbide cylinder,

SiC Sulfuric Acid Atomizer Nozzles
