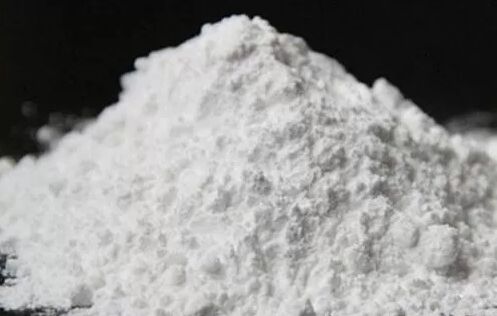

High Purity Aluminum Nitride Powder with Narrow Particle Size Distribution and Customizable Particle Size for Electronic Materials

High Purity Aluminum Nitride Powder with Narrow Particle Size Distribution and Customizable Particle Size for Electronic Materials
High Purity Aluminum Nitride Powder with Narrow Particle Size Distribution and Customizable Particle Size for Electronic Materials High Purity Aluminum Nitride Powder with Narrow Particle Size Distribution and Customizable Particle Size for Electronic Materials High Purity Aluminum Nitride Powder with Narrow Particle Size Distribution and Customizable Particle Size for Electronic Materials

Large Image :  High Purity Aluminum Nitride Powder with Narrow Particle Size Distribution and Customizable Particle Size for Electronic Materials

Product Details:
Place of Origin: China
Brand Name: ZG
Certification: CE
Model Number: MS
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: 10USD/PC
Packaging Details: Strong wooden box for Global shipping
Delivery Time: 5-8 working days
Payment Terms: L/C,D/A,T/T,D/P,Western Union
Supply Ability: 1000PCS
Contact Now

High Purity Aluminum Nitride Powder with Narrow Particle Size Distribution and Customizable Particle Size for Electronic Materials

Description
Highlight:

High Purity Aluminum Nitride Powder

,

Narrow Particle Size Distribution AlN Powder

,

Customizable Particle Size AIN Powder

Aluminum Nitride Powder
High purity AlN powder for electronic materials is the optimal material choice for sintering AIN substrates. The sintered AIN substrate features ultra-high thermal conductivity, excellent electrical insulation, and thermal expansion properties that closely match semiconductor materials such as silicon wafers. Widely used in the electronic packaging industry, our aluminum nitride powder is produced using the carbon thermal reduction method, ensuring stable process control and access to diverse raw material sources.
Key Advantages
  • Exceptional high purity levels
  • Narrow particle size distribution
  • Versatile applications including substrate casting, granulation powder, and filler powder
  • Customizable particle sizes to meet specific scenario requirements
Technical Specifications
Parameter H-2 M-3
Specific surface area ≥2.0 ≥2.0
Mean particle size ≤2.0 ≤2.0
O (wt%) ≤0.95 ≤0.95
C (ppm) ≤0.045 ≤0.050
Ca (ppm) ≤200 ≤200
Si (ppm) ≤50 ≤70
Fe (ppm) ≤30 ≤50
H-2 Grade
High Purity Aluminum Nitride Powder with Narrow Particle Size Distribution and Customizable Particle Size for Electronic Materials 0
H-3 Grade
High Purity Aluminum Nitride Powder with Narrow Particle Size Distribution and Customizable Particle Size for Electronic Materials 1

Tag:

F4 Zirconium Alumina ZA25,

7.6g/cm3 Density Alumina Ceramic Parts,

7.6g/Cm3 Density Steel Shots And Grits
