Product Details:
|
Features: | Excellent Wear Resistance; Chemical Inertness; No Grinding In The Product To Be Crushed; Long Service Life | Material: | Aluminum Nitride (AlN), Silicon Carbide, Zirconia |
---|---|---|---|
Size: | Customized | Color: | Black, White |
Highlight: | Shutoff aluminum nitride ceramic,corrosion resistant aluminum nitride ceramic,Aluminum Nitride Industrial Ceramic Parts |

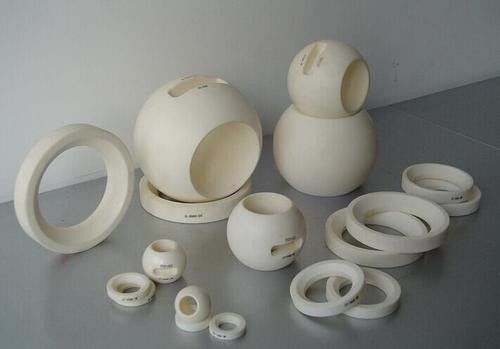

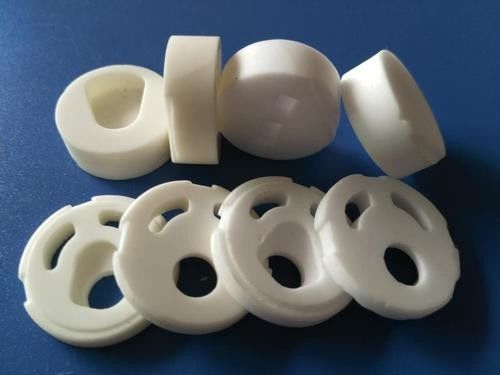

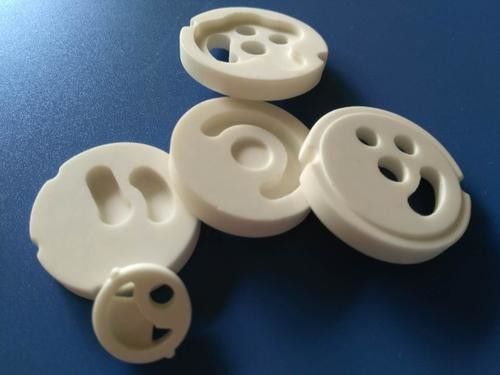

Industrial Ceramic elements of shutoff and control valves
Industrial Ceramic Elements Of Shutoff And Control Valves, high-strength,resistant to corrosion and wear
The process equipment involved in the pumping and transport systems for liquid and gaseous media contains a significant number of shut-off and control valves. Elements of valves and fittings directly overlapping the flow are subject to a destructive effect of the flow, in the case of abrasive particles, corrosive media, high temperatures and cavitation leads to a drastic reduction in the resource and the need for frequent replacement of reinforcing units. The use of high-strength ceramic materials, resistant to corrosion and wear, allows increasing the life of equipment many times.
Related Data
Main component | 99%Al2O3 | S-SiC | ZrO2 | Si3N4 | ||
Physical Property |
Density | g/cm3 | 3.9 | 3.1 | 6 | 3.2 |
Water Absorption | % | 0 | 0.1 | 0 | 0.1 | |
Sinter Temperature | °C | 1700 | 2200 | 1500 | 1800 | |
Mechanical Property |
Rockwell Hardness | HV | 1700 | 2200 | 1300 | 1400 |
Bend Strength | kgf/mm2 | 3500 | 4000 | 9000 | 7000 | |
Compression Intensity | Kgf/mm2 | 30000 | 20000 | 20000 | 23000 | |
Thermal Property |
Maximum working temperature |
°C | 1500 | 1600 | 1300 | 1400 |
thermal expansion coefficient 0-1000°C |
/°C | 8.0*10-6 | 4.1*10-6(0-500°C) | 9.5*10-6 | 2.0*10-6(0-500°C) | |
5.2*10-6(500-1000°C) | 4.0*10-6(500-1000°C) | |||||
Thermal Shock resistance | T(°C) | 200 | 250 | 300 | 400-500 | |
Thermal Conductivity | W/m.k(25°C | 31 | 100 | 3 | 25 | |
300°C) | 16 | 100 | 3 | 25 | ||
Electrical Property |
Resisting rate of Volume | ◎.cm | ||||
20°C | >1012 | 106-108 | >1010 | >1011 | ||
100°C | 1012-1013 | – | – | >1011 | ||
300°C | >1012 | – | – | >1011 | ||
Insulation Breakdown Intensity |
KV/mm | 18 | semiconductor | 9 | 17.7 | |
Dielectric Constant (1 MHz) | (E) | 10 | – | 29 | 7 | |
Dielectric Dissipation | (tg o) | 0.4*10-3 | – | – | – |
The scope of ceramic elements is quite wide:
Experience in the use of ceramic elements shows a significant reduction in the effect of “grasping” the elements of construction, reducing the opening/closing forces of the reinforcement, increasing the temperature range of operation and the overall increase in reliability and longevity of the unit. Silicon carbide, aluminum oxide, cemented carbide, zirconium dioxide, silicon nitride are used for the production of shut-off and control valves.
At present, wear-resistant parts made of ceramic materials, cemented and graphite are an integral part of pumps, compressors, turbines and pipeline fittings.
Main applications:
Advantage of ceramic materials:
Materials:
