Product Details:
Place of Origin: CHINA
Brand Name: ZG
Certification: CE
Model Number: MS
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD10/piece
Packaging Details: Strong wooden box for Global shipping
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 pieces

INDUSTRIAL CERAMIC PARTS FOR PAPERMAKING, FORMING BARS, DEFLECTORS, DEWATERING HYDROPLANS, MOISTURE INLET CHAMBER

Description
Features: Excellent Wear Resistance; Chemical Inertness; No Grinding In The Product To Be Crushed; Long Service Life Material: Graphite
Size: Customized Color: Black
High Light:

Papermaking Industrial Ceramic Parts

,

99% Al2O3 Industrial Ceramic Parts

,

Wear Resistance 99% al2o3 ceramics



Industrial Ceramic Products For The Papermaking Industry



Industrial Ceramic Products For The Papermaking Industry with wear resistance

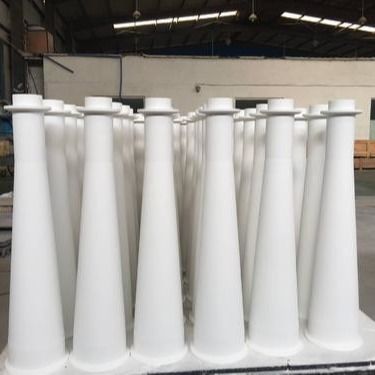

Ceramic parts are effective for separating foreign materials and dewatering.With their superior wear resistance, ceramics are used to create cleaner cones that separate foreign material from pulp slurry, suction box covers, and blades to dewater through a wire mesh, as well as flat parts and rollers to remove water from felt.





Related Data

Main component 99%Al2O3 S-SiC ZrO2 Si3N4
Physical
Property
Density g/cm3 3.9 3.1 6 3.2
Water Absorption % 0 0.1 0 0.1
Sinter Temperature °C 1700 2200 1500 1800
Mechanical
Property
Rockwell Hardness HV 1700 2200 1300 1400
Bend Strength kgf/mm2 3500 4000 9000 7000
Compression Intensity Kgf/mm2 30000 20000 20000 23000
Thermal
Property
Maximum working
temperature
°C 1500 1600 1300 1400
thermal expansion
coefficient
0-1000°C
/°C 8.0*10-6 4.1*10-6(0-500°C) 9.5*10-6 2.0*10-6(0-500°C)
5.2*10-6(500-1000°C) 4.0*10-6(500-1000°C)
Thermal Shock resistance T(°C) 200 250 300 400-500
Thermal Conductivity W/m.k(25°C 31 100 3 25
300°C) 16 100 3 25
Electrical
Property
Resisting rate of Volume ◎.cm
20°C >1012 106-108 >1010 >1011
100°C 1012-1013 >1011
300°C >1012 >1011
Insulation Breakdown
Intensity
KV/mm 18 semiconductor 9 17.7
Dielectric Constant (1 MHz) (E) 10 29 7
Dielectric Dissipation (tg o) 0.4*10-3



Due to such properties as:

  • corrosion resistance;
  • wear resistance;
  • low coefficient of friction;
  • the ability to maintain its properties at high temperatures

ceramic materials are used in the papermaking industry for the production of the following products:

  • forming bars;
  • deflectors;
  • dewatering hydroplans;
  • moisture inlet chamber;
  • flat inlet chambers;
  • inlet chambers of wet cloth.



Basic material execution: zirconia (ZrO2), aluminum oxide (Al2O3), silicon nitride (Si3N4), various ceramic compositions.
