Product Details:
|
| Material: | Silicon Carbide | Color: | Black |
|---|---|---|---|
| Size: | Customized | Feature: | Excellent Thermal Conductivity Resistant To Plasma Shock Good Temperature Uniformity |
| Highlight: | 410Gpa Silicon Carbide Ceramics,3900Mpa Silicon Carbide Ceramics,Thermal Shock Resistance Silicon Carbide Crucible |
||

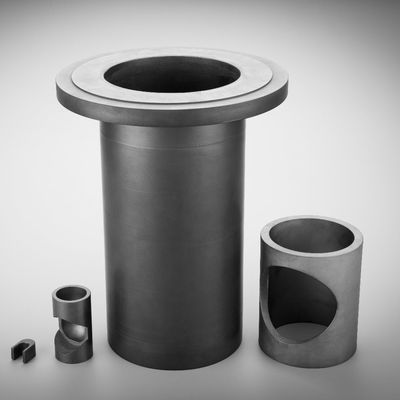

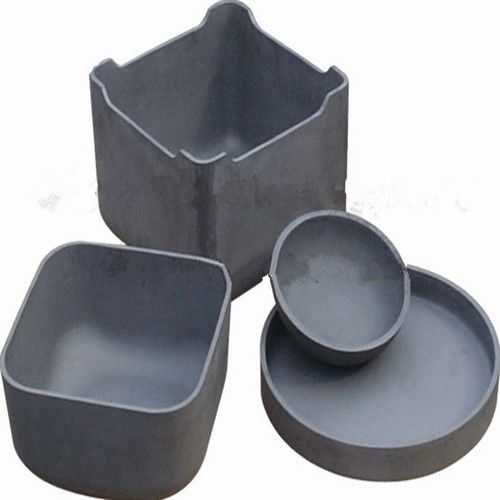

Silicon Carbide Crucible
We are an export-oriented enterprise which integrates design, development, production and service. Due to low labour costs and highly skilled work force & state of the art production facility, we are able to manufacture high quality products at lowest prices and provide value for money. We sincerely welcome all friends home and abroad to contact us,either by establishing business relationships or to work together to obtain mutual benefits.
| Performance | UNIT | HS-A | HS-P | HS-XA |
| Grain Size | μm | 4-10 | 4-10 | 4-10 |
| Density | g/cm | ≥3.1 | 3.0-3.1 | >3.1 |
| Hardness (Knoop) | Kg/mm² | 2800 | 2800 | 2800 |
| Flexural Strength 4 pt @ RT | MPa*m1/2 | 385 | 240 | 420 |
| *10³1b/in² | 55 | 55 | 55 | |
| Compressive Strength @ RT | Mpa | 3900 | 3900 | |
| *10³1b/in² | 560 | 560 | ||
| Modulus of Elasticity @ RT | Gpa | 410 | 400 | 410 |
| *10³1b/in² | 59 | 58 | 59 | |
| Weibull Modulus (2 parameter) | 8 | 19 | 12 | |
| Poisson Ratio | 0.14 | 0.14 | 0.14 | |
| Fracture Toughness @ RT Double Torsion & SENB | MPa*m1/2 | 8 | 8 | 8 |
| *1³1b/in²in½ | ||||
| Coefficient of Thermal Expansion RT to 700℃ | X10-6mm/mmK | 4.02 | 4.2 | 4.02 |
| X10-6 in/in°F | 2.2 | 2.3 | 2.2 | |
| Maximum Service Temp.Air Mean Specific Heat @ RT | °C | 1900 | 1900 | 1900 |
| J/gmK | 0.67 | 0.59 | 0.67 | |
| Thermal Conductivity @ RT | W/mK | 125.6 | 110 | 125.6 |
| Btu/ft h°F | 72.6 | 64 | 72.6 | |
| @200°C | W/mK | 102.6 | 102.6 | |
| Btu/ft h°F | 59.3 | 59.3 | ||
| @400°C | W/mK | 77.5 | 77.5 | |
| Btu/ft h°F | 44.8 | 44.8 | ||
| Permeability @ RT to 1000°C | 31MPa below No gas leakage | |||
| Electrical Resistivity @ RT | Ohm-cm | 102-106 | N/A | 102-106 |
| Emissivity | 0.9 | 0.9 | 0.9 | |
Application:
Feature requirements:
Why better than others:
