Product Details:
|
| Application: | Fine Chemical Industry, Pharmaceutical Industry, Environmental Protection Engineering | Dimension: | The Maximum Diameter Of Tube Bundle Block Can Reach 200mm, And The Height Can Be 500mm. |
|---|---|---|---|
| Material: | Silicon Carbide | Color: | Black |
| Product Name: | Silicon Carbide Tube Bundle Block | ||
| High Light: | Tube Bundle Silicon Carbide Ceramics,Dia 200mm Silicon Carbide Ceramics,SiC Tube Bundle Block |
||
Silicon carbide tube bundle block

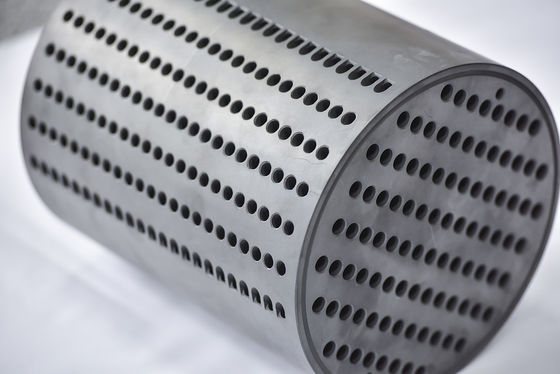

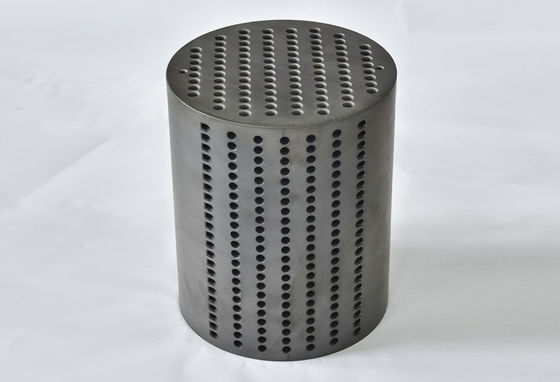

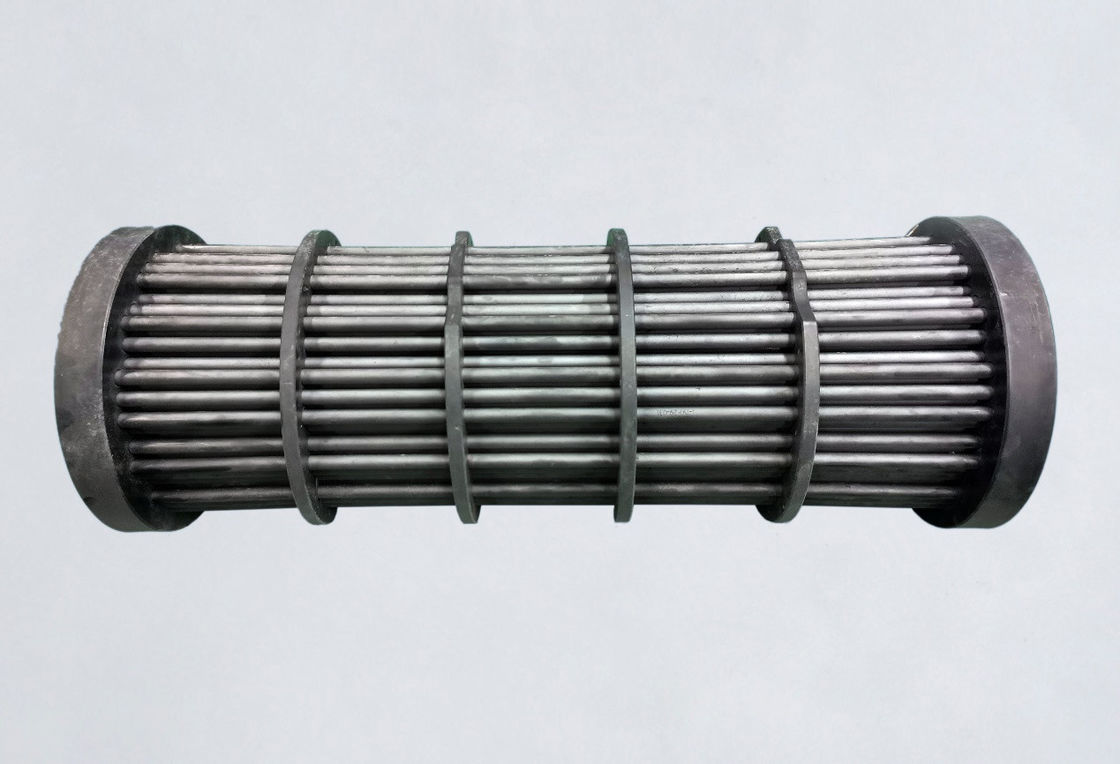

SiC tube bundle block is an integrated SiC tube bundle heat exchanger composed of SiC baffle plate, tube plate and SiC heat exchange tube by high temperature diffusion welding.
Typical applications
Tube bundle heat exchangers under high temperature and high pressure corrosion of strong acid and strong alkali.
Application industries: fine chemical industry, pharmaceutical industry, environmental protection engineering.
Features and advantages

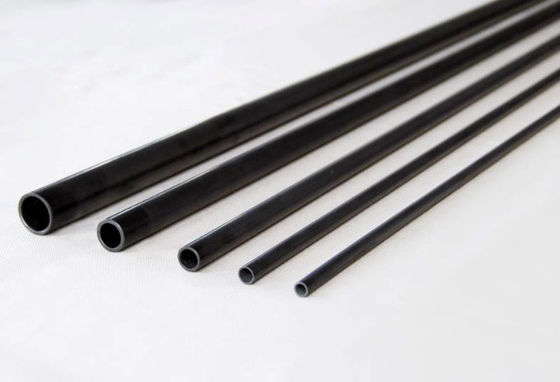

Silicon Carbide Bunched Block Heat Transfer Tube Dimensions are customizable, usually OD8-ID6mm.
Silicon Carbide Tube Bunches are spaced 2-4mm apart.
Silicon carbide bundle block has comprehensive corrosion resistance properties, can be used in sulfuric acid, hydrochloric acid, sulfuric acid, hydrofluoric acid and a variety of mixed acids, life is much longer than graphite and metal materials.
Silicon carbide tube bundle block can withstand water pressure of 30BAR and temperature of 300℃ or more.
The heat transfer efficiency of CORESIC ® SP tube bundle heat exchanger is more than 2 times that of general tube or block hole heat exchanger.
Silicon Carbide Tube Bunches are factory tested for size, water pressure resistance and surface fluorescence penetration.
Specifications
At present, the maximum diameter of tube bundle block can reach 200mm, and the height can be 500mm.
The shape and sealing of the baffle are customized according to customer drawings.
Material performance sheet
Silicon carbide tube bundle block
