ZG Industrial Ceramic Parts DN8 DN10 Silicon Carbide Reaction Tube

Large Image : ZG Industrial Ceramic Parts DN8 DN10 Silicon Carbide Reaction Tube

Product Details:

Place of Origin:	CHINA
Brand Name:	ZG
Certification:	CE
Model Number:	MS

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	USD10/piece
Packaging Details:	Strong wooden box for Global shipping
Delivery Time:	3 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10000 pieces per month

Contact Now

ZG Industrial Ceramic Parts DN8 DN10 Silicon Carbide Reaction Tube

Description

Application:	Fine Chemical Industry, Pharmaceutical Industry, Environmental Protection Engineering	Dimension:	The Maximum Diameter Of Tube Bundle Block Can Reach 200mm, And The Height Can Be 500mm.
Material:	Silicon Carbide	Color:	Black
Product Name:	Silicon Carbide Tube Bundle Block
High Light:	ZG Industrial Ceramic Parts , DN8 Silicon Carbide Reaction Tube , DN10 Silicon Carbide Reaction Tube

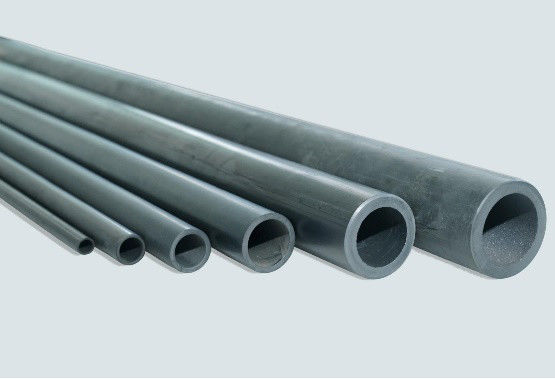

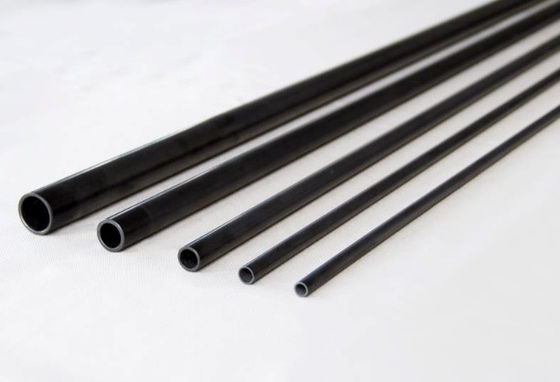

SiC Reaction Tube

SiC Reactor Tubes are molded and sintered at high temperature using an extrusion process specially developed by Sanchem New Materials.The outer diameter of the tube is monitored online by laser caliper, and the surface of the product is smooth.We can also drill, carve, polish and finish according to customer's special requirements.

Typical applications

Single tube reactor, multi - tube series tube reactor and multi - tube parallel tube reactor equipment.
It is suitable for all kinds of chemical reactions and chemical processes with strong exothermic, strong endothermic, strong corrosion and high explosion risk.

Features and advantages

The straightness standard of SiC reaction tube is: straightness (in mm/m)≦1.2.Each reaction tube product must be fully passed the standard regulatory inspection before leaving the factory.
SiC Reaction Tubes Test Standard for Water Pressure Resistance: Each SiC tube is tested at 100Bar (60S) to ensure reliability and safety.
The high thermal conductivity of silicon carbide reaction tube can rapidly increase or decrease the reaction medium temperature during the reaction process, and the heat and mass transfer efficiency is high, thus shortening the reaction time and improving the reaction efficiency.
Silicon carbide reaction tube as the core of the new tubular reactor, because of the silicon carbide has corrosion resistance, high temperature resistance, high thermal conductivity, high hardness, wear resistance and other excellent characteristics, especially suitable for high temperature, high pressure, strong acid and alkali corrosion, high-speed airflow erosion, particle wear and other harsh working conditions.

Specifications

Silicon Carbide Reaction Tube
