Product Details:
|
Application: | Bearings Mechanical Seals Bearings Valve Plates Ball Valves Nozzles Pipeline Lining Thermocouple Protection Tube | Material: | Al2O3 Aluminum Oxide, 95%, 99% |
---|---|---|---|
Color: | White | Size: | Customized |
Shape: | Round, Balls, Irregular, Tube, Customized | Density: | >=3.6g / Cm3 |
Feature: | Wear Resistant Corrosion Resistant Thermal Shock Resistant High Strength Air Impermeability | Product Name: | Manufacturer Supplier 95%-99.8% Aluminum Oxide Ceramic Al2O3 Crucibles, Alumina Furnace Tube, Al2O3 Grinding Polishing Packing Ceramic Balls, Alibaba China Wear-resisting Alumina Ceramics, Al2O3 Aluminium Oxide Alumina Ceramic |
Highlight: | Alumina Kiln Furniture 2mm Thickness,3.6g/Cm3 Density Alumina Kiln Furniture,3.6g/Cm3 Density ceramic kiln shelves |

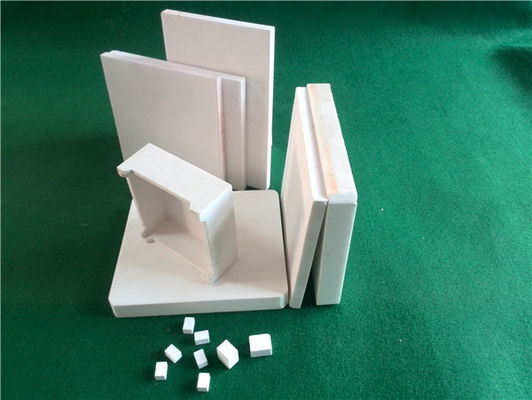

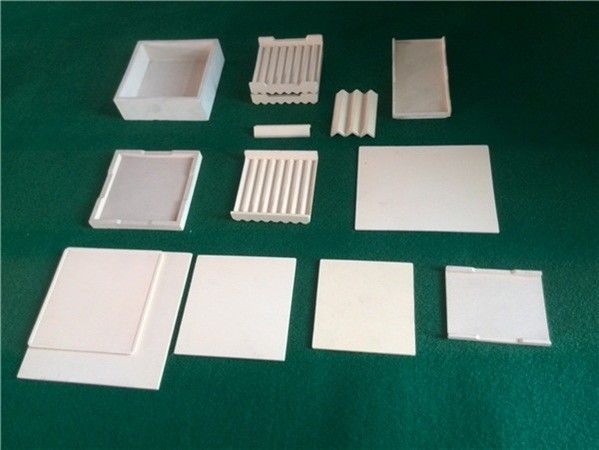

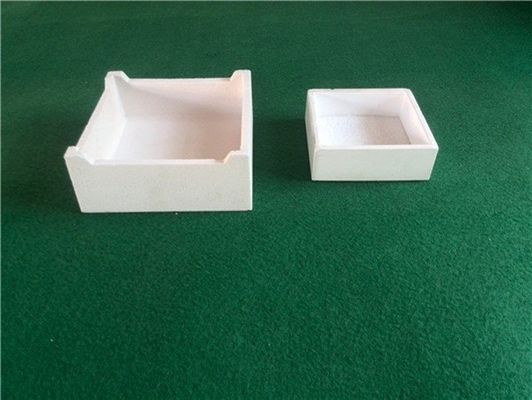

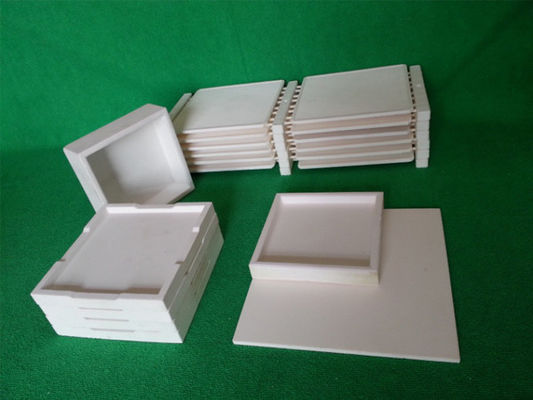

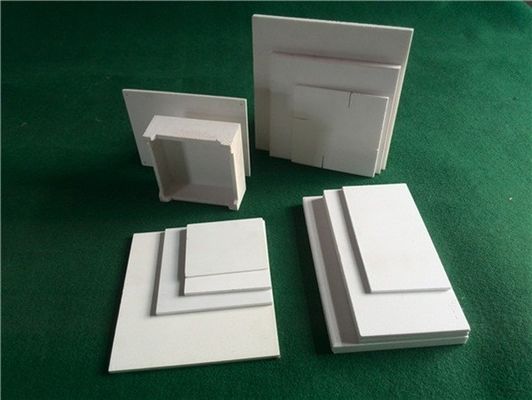

Zirconia kiln furniture for sintering electronic components
Imported high-purity zirconia is used, with good material consistency and stability.Unique process formula, years of accumulation of zirconia refractory technology. Ultra-long endurance to rapid cold and hot environments, long product life and stable quality
There is no chemical reaction and adhesion with the components to be fired, which can ensure the stability and consistency of the performance of electronic ceramic products and improve the qualification rate of fired products.
Advantage:
Using high-purity alumina and advanced technology for impurity treatment.
Improve the sintering performance of electronic materials.
Promote the stability of sintered electronic component materials.
Certain air permeability, to ensure the stability of the product sintering.
High temperature resistance, better thermal shock resistance.
Thinner thickness, ultra-thin zirconia plate ≤2mm instead of imported.
Specification:
Compositon |
ZR-99Y | ZR-99C | |
ZrO | +Yi2O3≥99% | +CaO≥99% | |
AL2O3 | ≤0.2% | ≤0.2% | |
SiO2 | ≤0.15% | ≤0.15% | |
TiO2 | ≤0.1% | ≤0.1% | |
MgO | ≤0.1% | ≤0.1% | |
Fe2O3 | ≤0.15% | ≤0.15% | |
Product properties |
Max Working Temp. | ≥1600℃ | |
Bulk Density | 4.3-4.4g/Cm3 |
最高使用温度Max.use temp | 1550℃ |
体积密度Bulk density | 4.3-4.4/Cm3 |
显气孔率Porosity | 22-25% |
热膨胀率Thermal expansion(10000C) | 1.3-1.5% |
荷重软化温度 Refractoriness under load | ≥1700℃ |
颜色( colour ) | 黄色(white ) |
Application:
1. Thermistor industry: used in the sintering of PTC electronic materials, with high purity and stable performance. long lasting
2. Soft ferrite core industry: Many years of experience in the field of magnetic core materials have been fully affirmed by industry customers.
3. Chip multilayer ceramic capacitor industry: higher material purity can meet the sintering conditions required by various electrical performance parameters. The product is thinner and has better air permeability!
4. The use of zirconia refractory materials in other industries: zirconia refractory materials that meet the production requirements can be developed according to the customer's use conditions and requirements.
